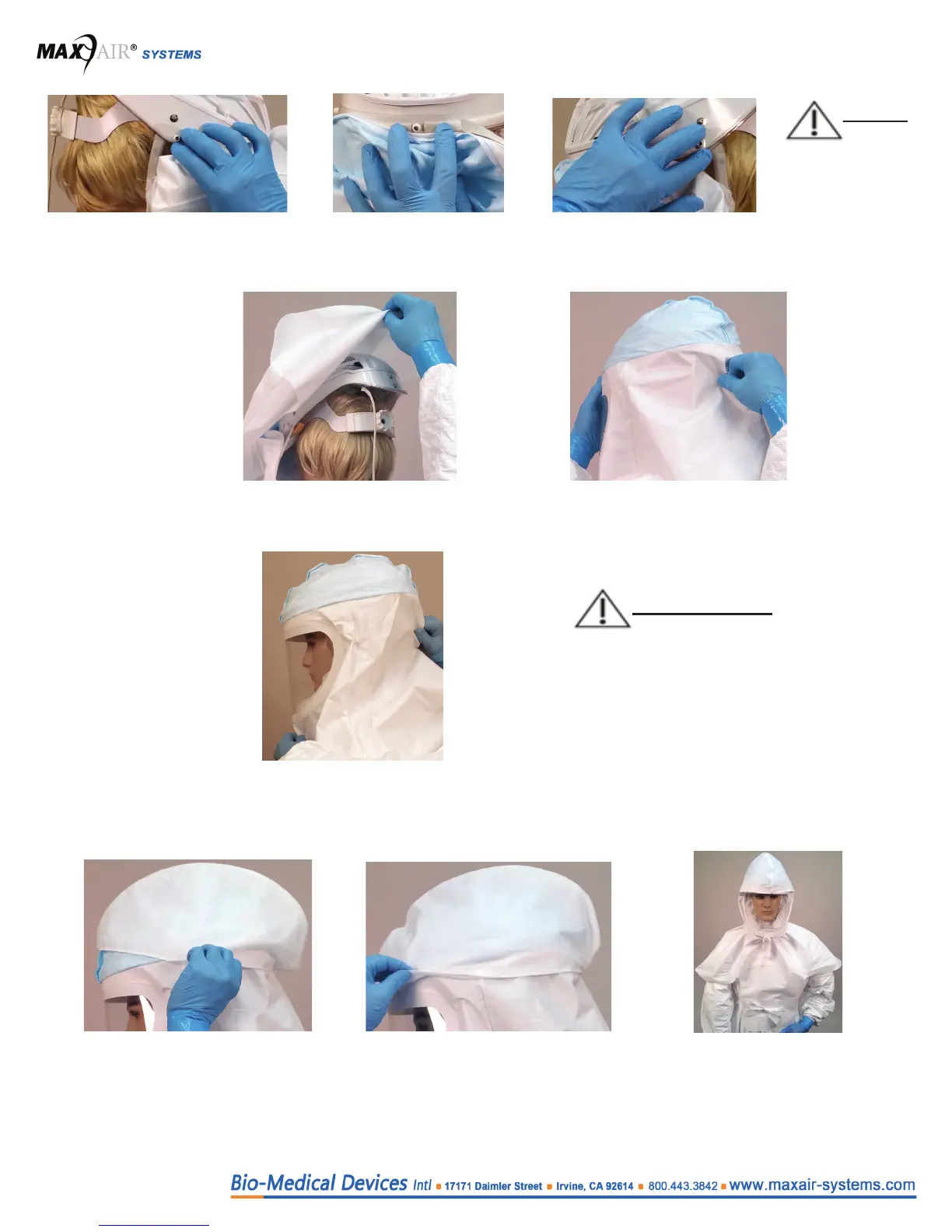

7. Hold Hood in one hand with lens
towards helmet. Attach one side Hood-
Lens attachment hole to respective
Helmet side attachment post.
8. Attach center Hood-Lens align-
ment hole over Helmet center
alignment post.
9. Attach other Hood-Lens attach-
ment hole to other Helmet side
attachment post.
NOTE
An
audible click
will occur
when the side
attachements
are made
properly.
CAUTION
For very small stature
wearers the Hood Shroud
may t too loosely, and the
2270-06SM may be more
appropriate.
12. Holding the Helmet securely on
head, grasp back bottom of Hood
Skirt and pull up, over, and down
below Helmet in back.
13. Continuing process of 11, pull
Hood all the way down so that
Hood Filter (blue) is fully down on
Helmet.
14. Ensure all Filter (blue) wrinkles
above front of Lens are re-
moved by holding shroud
in front below lens and in back
below lter and pulling down rmly.
17. Ensure Hood Skirt is fully down on all
sides.
Secure Neck ties to within about 1/2
inch of neck.
Secure body ties around waist area.
15. Initiate donning of Heavy Loading
Filter (HLF) by tucking back bottom
up under back bottom of Helmet
16. Complete donning of HLF by pull-
ing down rear-to-front and securing
front bottom on Hood front velcro
strips (both sides in front).
