42
MOUNTING FLATS

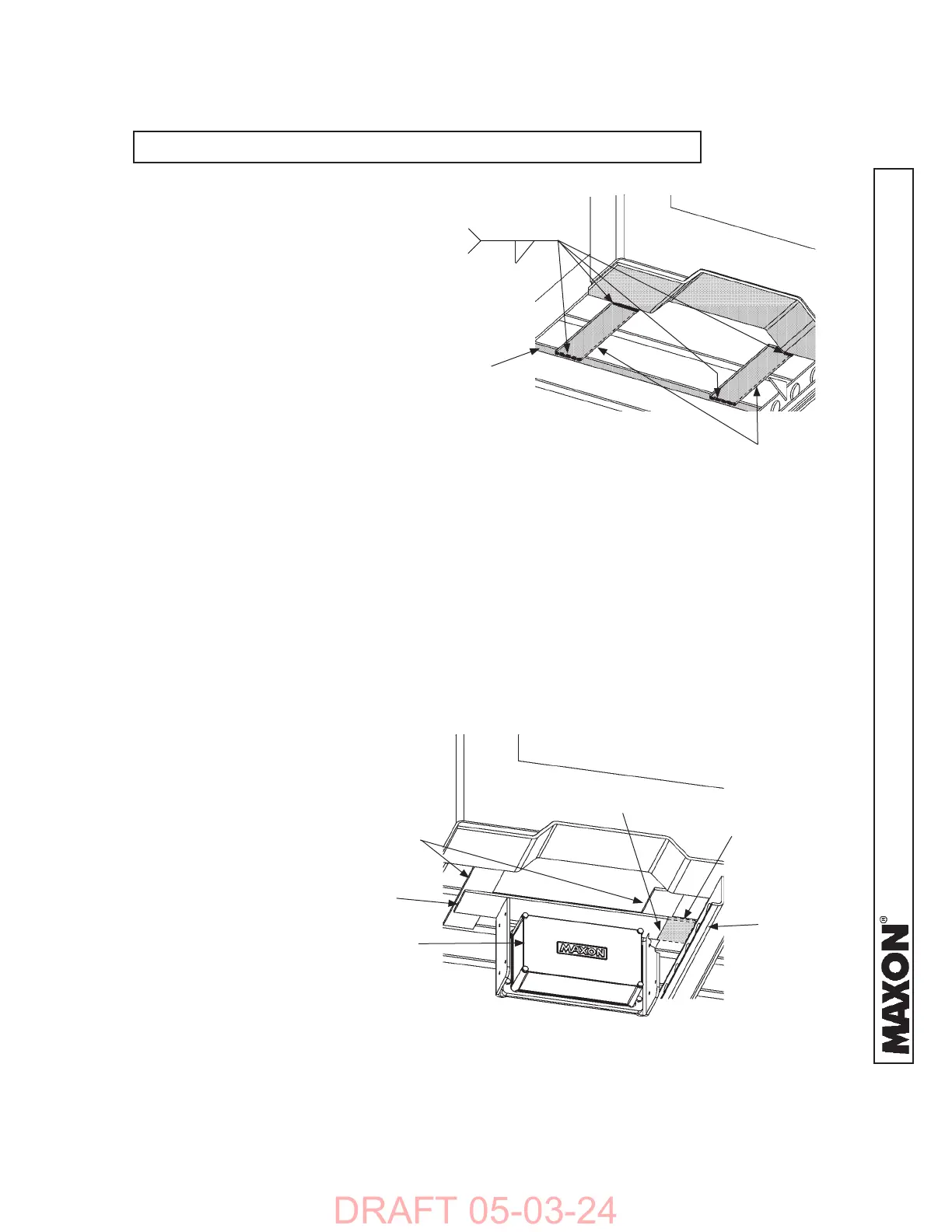

2. Weld J-box mounting fl ats to
vehicle crossmembers as shown
in FIG. 42-1.
WELDING J-BOX MOUNTING FLATS
FIG. 42-1
1/4”
4 PLACES”
POSITIONING J-BOX MOUNTING BRACKET ON FLATS
FIG. 42-2
MARK LINE
CUT OFF
EXCESS
J-BOX
3. Position J-box mounting bracket
on fl ats (FIG. 42-2). Mark mounting
bracket position at the edge of the
slide rail and cut excess length from
bracket as shown in FIG. 42-2.
J-BOX MOUNTING
BRACKET
SLIDE RAIL
CROSSMEMBER
STEP 2 - WELD J-BOX TO UNDERBODY - Continued
MOUNTING FLATS
NOTE: Grind galvanized surface material from areas to be welded.
