McHale V Series Baler
56
screws. Adjustment to the delivery must be carried out using a slot-head screwdriver
(Using a smaller screwdriver may damage the adjustment screw, so use size 8 - 10
minimum).
The delivery is increased by turning the adjustment screw in a clockwise
direction and decreased by turning counter clockwise.
One full turn (= 6 clicks) corresponds to 0.015 cc and each click equals
0.0025 cc.
The maximum possible adjustment equals 3 turns or 18 clicks.

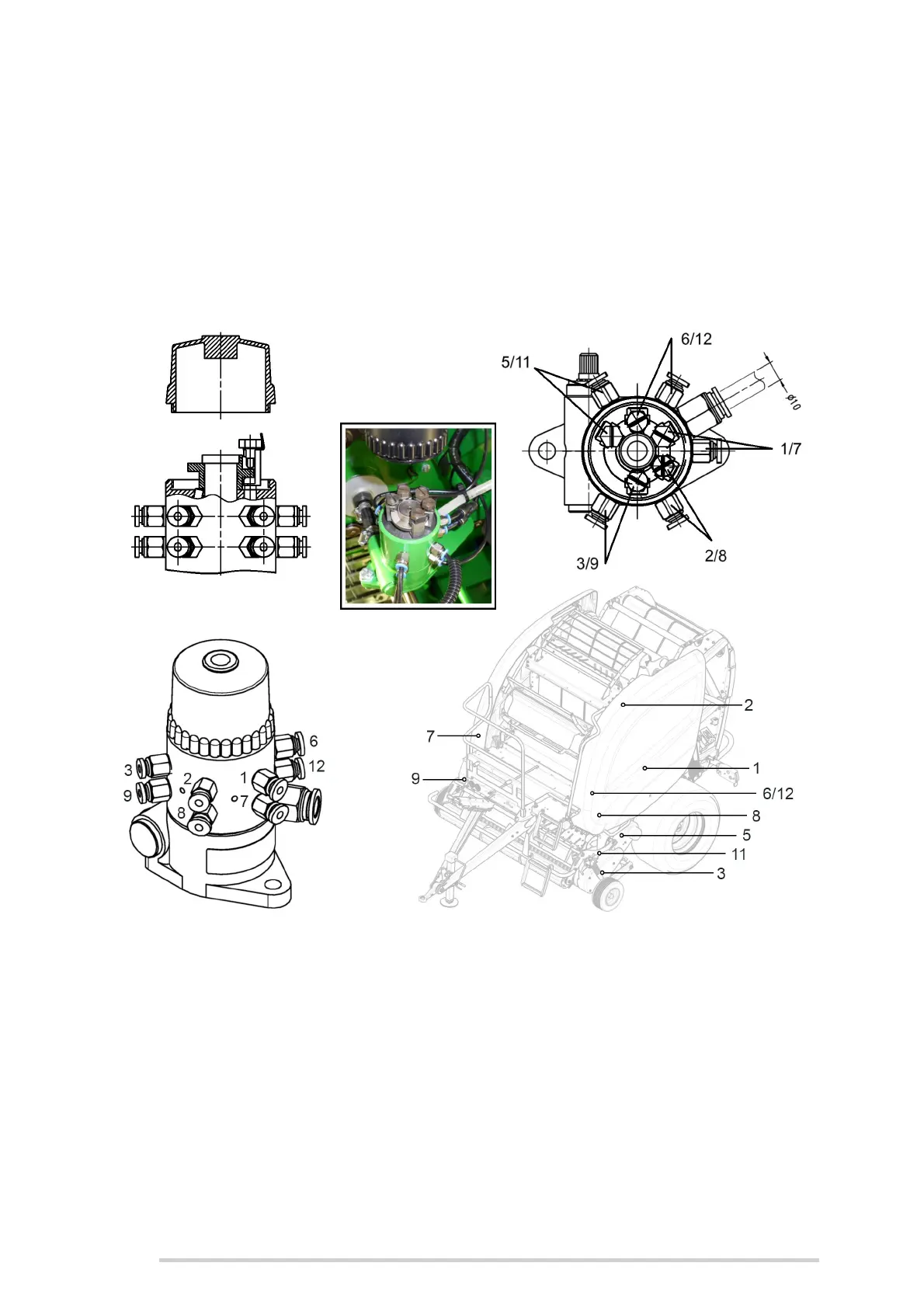

Oil pump adjustment
Once adjustment is complete, screw the black plastic cover back on top of the pump
unit. Oil delivery should continue to be monitored and readjusted, if necessary, until
desired results are achieved.
