28000 12MXT
M1 65
14.2.5 Adjusting the transfer movement engine
(switching point)
1- Place the machine on stabiliser support, with wheels
raised; forward movement with high speed engaged,
engine road configuration in maximum regime.
2- Raise the pressure in the transfer movement engine
by progressively applying the stopping brake or the
service brake.
To use the service brake, you must disconnect and
stop up the Inching flex.
3- The pressure (1 fig. 1) in the transfer movement engine
rises slowly and then drops sharply.
4- Turn the screw (1 fig. 2) clockwise to slow down the
sharp fall in pressure in the transfer movement engine,
or in the opposite direction to speed it up.
Note: The adjustment point is located at the
moment at which the pressure falls
sharply.
10 flat spanner
3 male hexagonal spanner
Manometer, 0 - 600 bar
Operation Adjustment point
Measurement
(ref. no.)
Adjustment
(ref. no.)
Adjustment of
transfer
movement engine
Sharp fall
in pressure
270 (+10 -10)
1 fig. 1 1 fig. 2

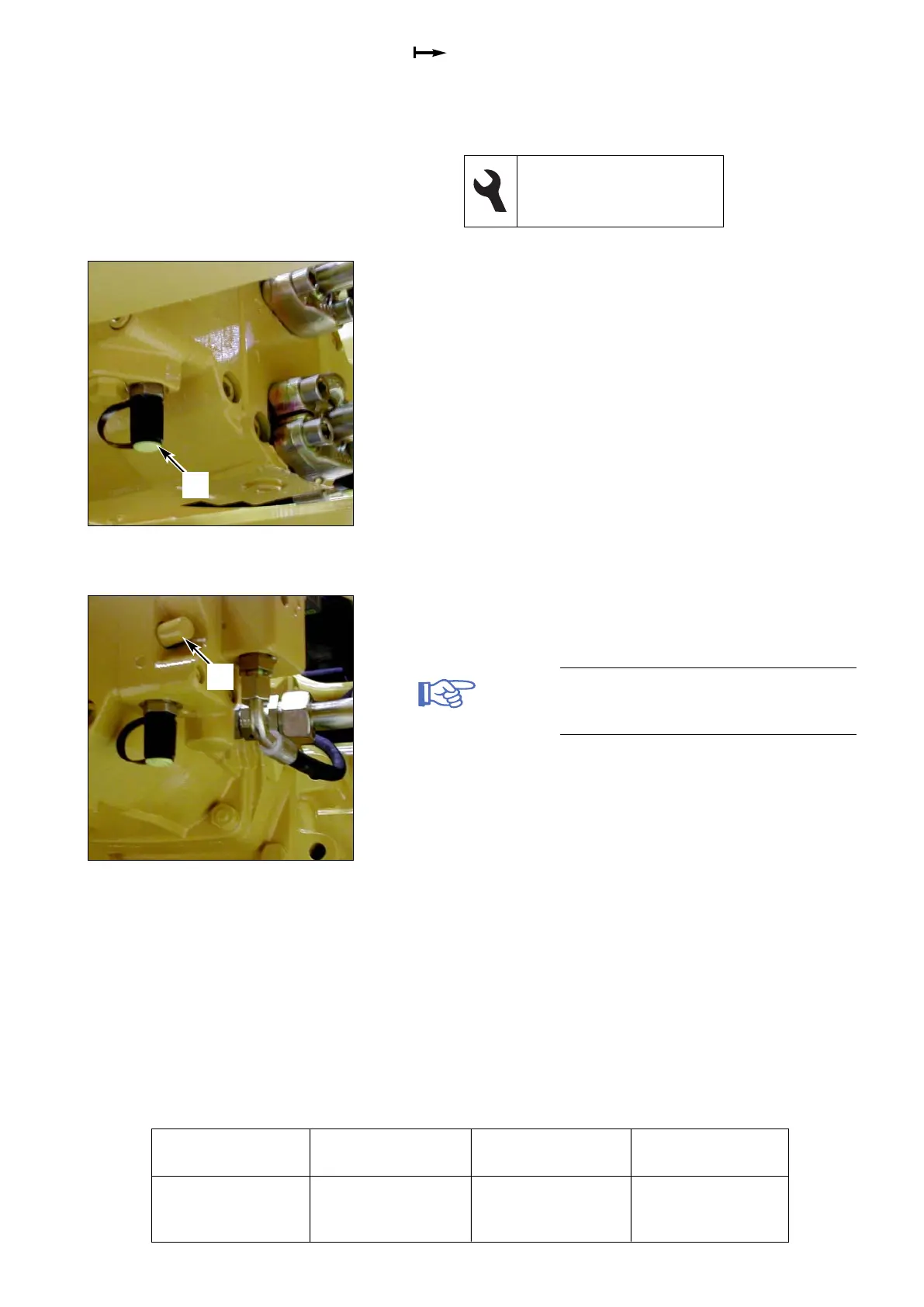

Fig. 1 Transfer movement engine
1
Fig. 2 Transfer movement engine
1
