14.4.8 Monitoring the power regulation curve
with the direction
1- Place the equipment in blocked position against a
wall, put the selector switch on “MECALAC 1”, pull the
left manipulator back, push the right manipulator
forward (as far as it will go) to allow the oil to circulate
(small chambers of the dipper ram and intermediate
boom ram).
2- Force the direction to the right by pushing the left key
towards the right (blocked position).
3- Screw the tap on the flow meter (1 fig. 1) until the flow
is cut off completely.
Note: During this operation, check that the
regime of the engine does not exceed
2,000 rpm. If it is in excess, restart the
“adjusting the power regulation”
process, reduce the pressure by units of
10 bar and continue this adjustment
until the regime of the engine is brought
below 2,000 rpm.
12MXT 28000
78 M1
13 and 27 flat spanners
3 male hexagonal spanner
Inductive sensor
Manometer, 0 - 600 bar
Flow meter adaptation kit

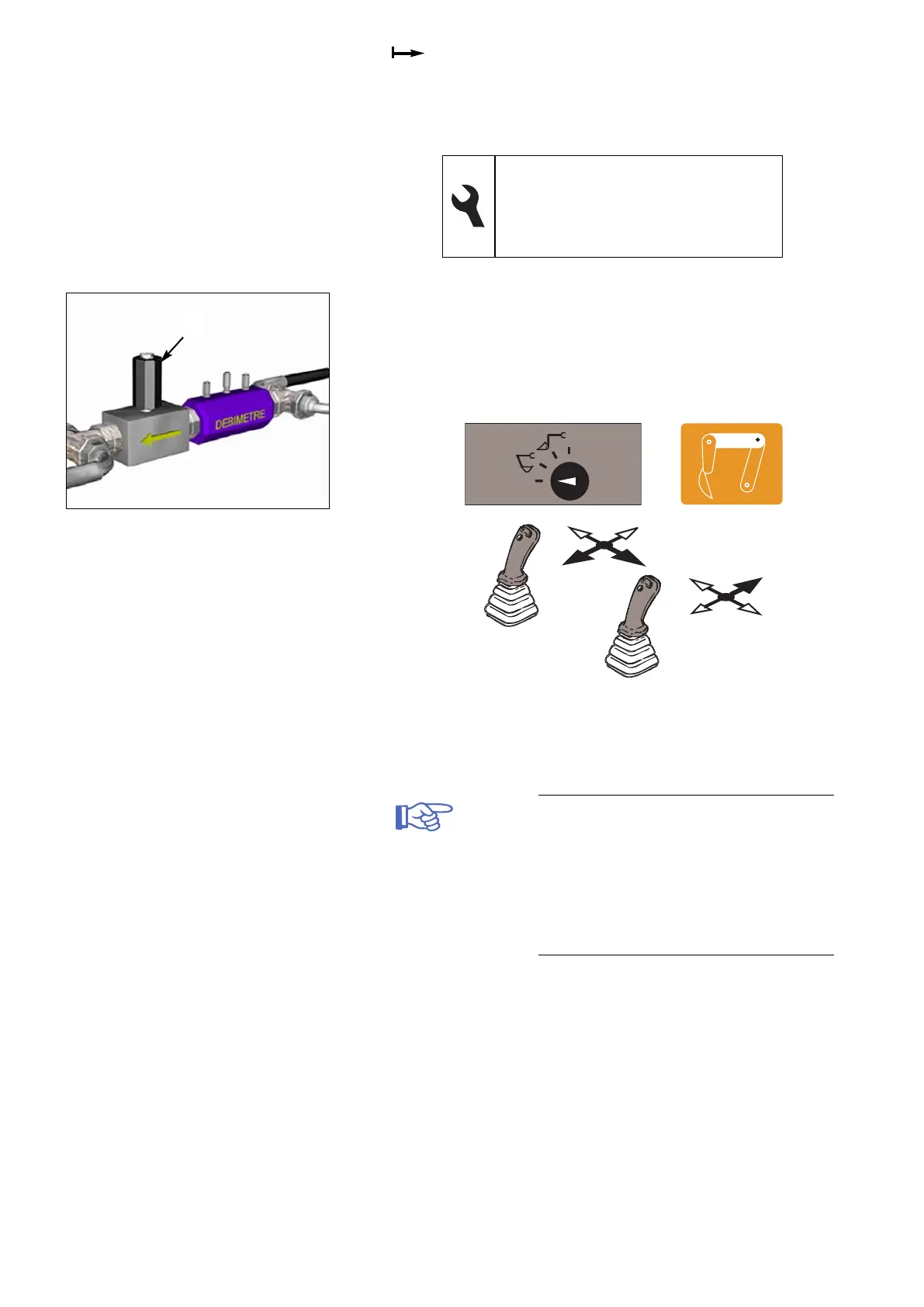

Fig. 1 Flow meter adaptation kit
(TOP-TEST MX)
1
