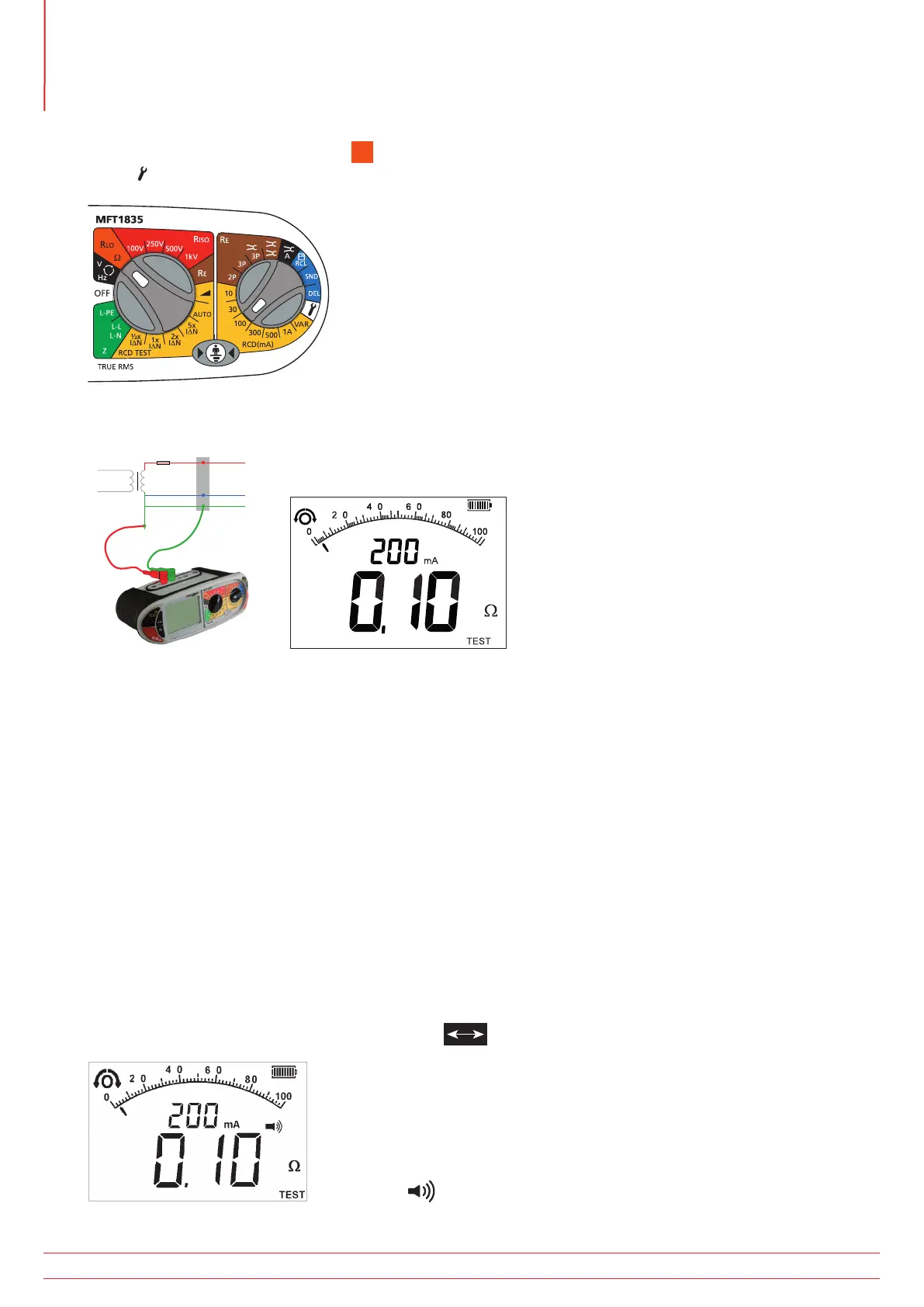

5.2 Making a CONTINUITY measurement
1. Set the Primary (Left) range knob to
W
range. (The position of the right hand rotary range knob must not be in
the position).
2. Connect two test leads to the L1 (+ve) and L2 (-ve) terminals on the instrument.
A continuity measurement is made automatically.
L
N
E
g
NOTE : Measurements are prevented when:
A resistance of > 99.9 kΩ is present
Circuit voltages in excess of 4 V are detected.
5.3 Storing / downloading results (Not MFT1815 or MFT1825)
For full details see “13. Appendix A – Sending, Storing, Deleting and Recalling Test Results (MFT1835 and
MFT1845+)” on page 56
Once the display shows a value it will automatically be logged into temporary memory. Unless stored, this will be over
written by the next measurement.
To store this result or to send it to a PowerSuite compatible device, refer to “13. Appendix A – Sending, Storing,
Deleting and Recalling Test Results (MFT1835 and MFT1845+)” on page 56.
5.4 Continuity Buzzer ON/OFF
Whilst in the continuity range, press the MODE button . This will toggle the buzzer ON and OFF.
Buzzer ON = Buzzer OFF = No symbol
www.megger.com
MFT1800 series
22
Continuity / resistance measurement
