Test Options in L-PE mode:
In L-PE mode the MFT1800 series offer 3 types of loop test:
3Lo – A 3-wire low current loop impedance test. This test requires all three connections.
Where to use:
For making L-E measurements on circuits where all three conductors are available AND the Phase – Earth circuit is
RCD protected. Requires all three test leads to be connected.
2Hi – A 2-wire high current test. A fast 3-4 second test using high test currents.
Where to use:
On ALL circuits except Phase – Earth measurements on RCD protected circuits.
2Lo – A 2-Wire low current loop test for L-E measurements where the 3rd conductor in not available.
Where to use:
On RCD protected circuits where access to all three conductors is not possible
NOTE : 2Lo is not available when all three leads are connected, as the 3Lo is the preferred
measurement mode.

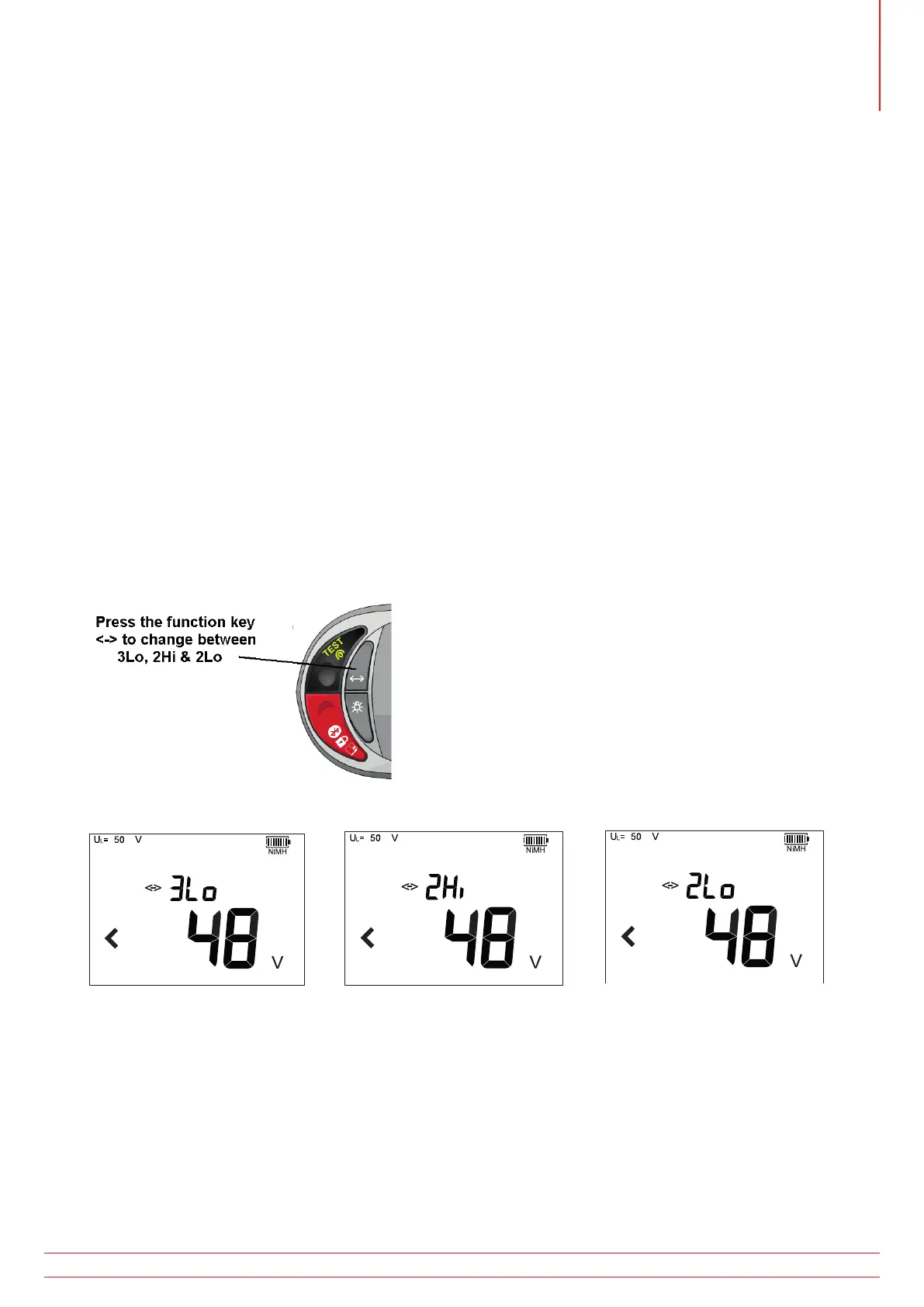

Selecting the test mode:
To switch between Loop test modes press the Function button, as below:
The test mode is displayed as below:
Default mode 1st Press 2nd Press
NOTE : RCDs can still trip when performing a “non-trip” loop test if there is an existing high level of fault
current flowing in the Earth conductor, or the RCD is not operating within specification
www.megger.com MFT1800 series
27
Loop impedance testing
