10 Product description
10.1 Structure

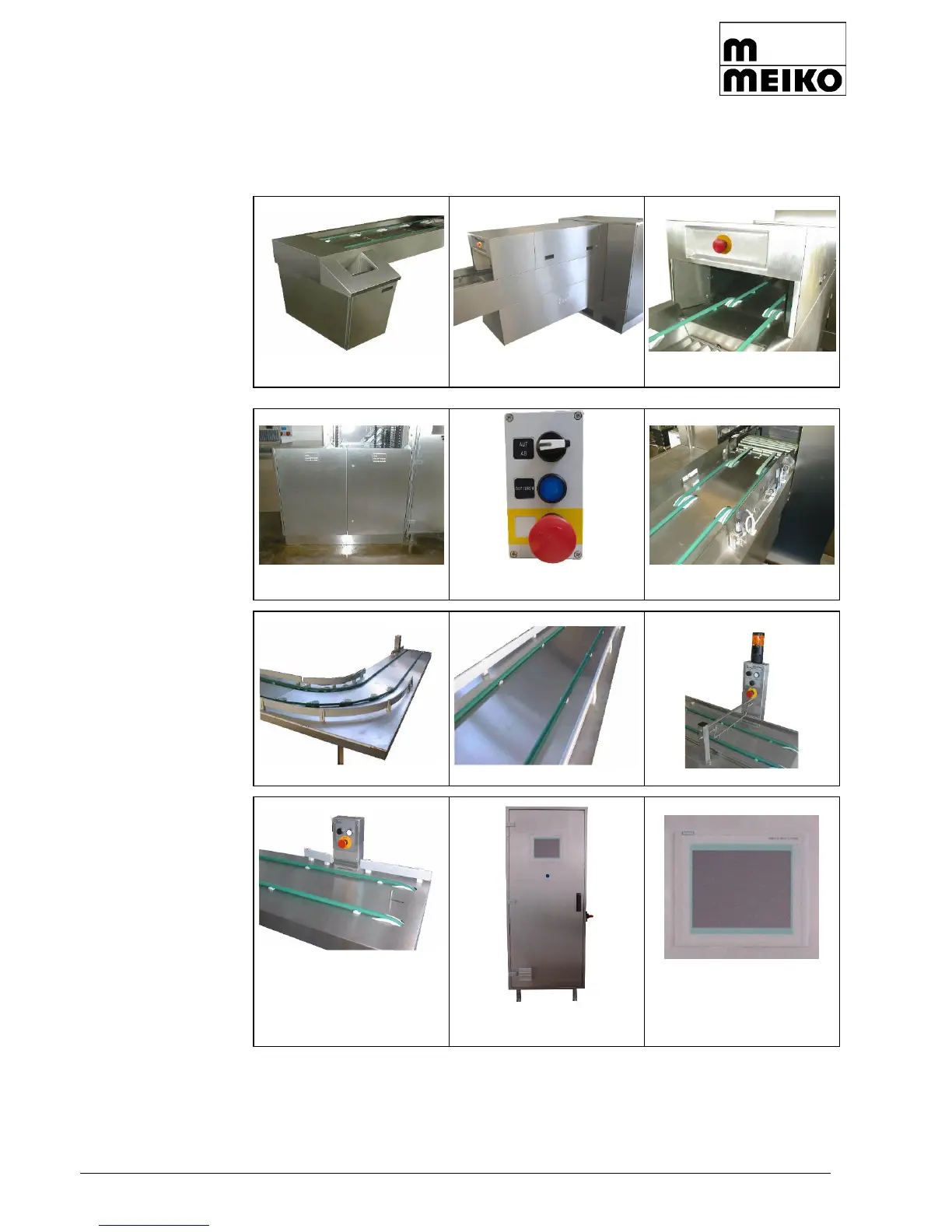

Beginning of belt
Infeed tunnel
Control panel on infeed tun-
nel
Vertical conveyor
Control panel on vertical
conveyor
Transition out of vertical
conveyor
Corner
Flat conveyor table
Height limitation switch
End of belt with pin limit
switch
Switch cabinet
Touch panel
