55 of 289
•
Note: Not all the screws are the same length. Ensure that you use the same screws for the origi-
nal position later in this procedure.
21. Remove the right side cover from the machine.

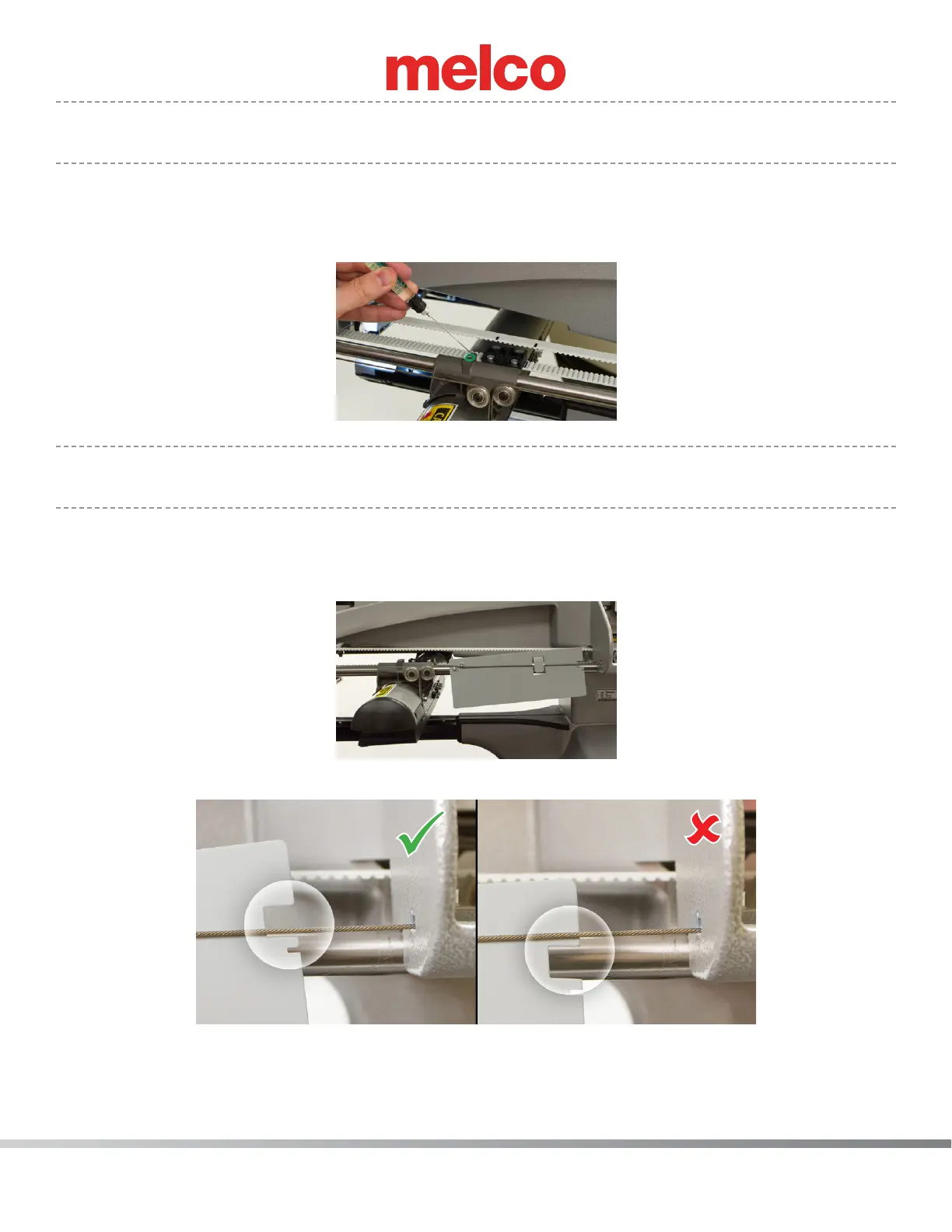

22. Using a small oiler bottle, place twenty ve (25) drops of sewing machine oil into the oiling port as
shown in the image.
•
Note: You may need to add a few drops and wait before adding more to prevent the oiling port
from overowing.
X-Cable Tension (Test)
23. Position the x-cable tension gauge (P/N 33909) on the x-cable as shown in the image.
24. Determine if the cable tension is within specication.
• If the x-cable is positioned within the large cut-out on the right side of the x-cable tension
gauge as shown in the image, the tension is within specication. Continue to step 25.
To Next Page
