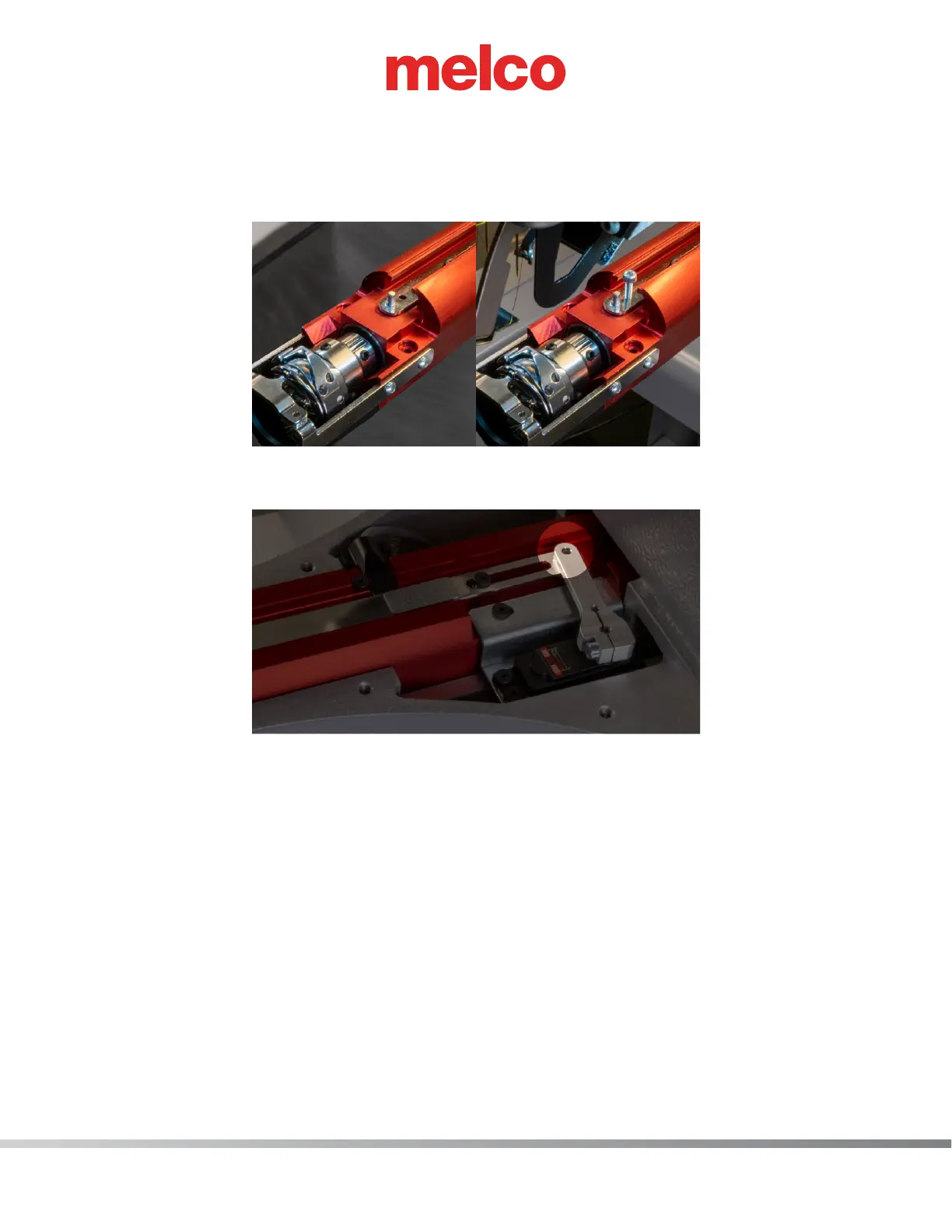

15. Locate the hole in the front of the trimmer connecting link. Using one of the M3x20MM
screws from the needle plate. Engage it in the before mentioned hole in the front of the trim-
mer connecting link. Slightly move the trimmer connecting link forward and backward until the
M3x20MM screw slides into the hole in the lower arm extrusion.
16. Re-assemble the trimmer drive arm by ensuring the trimmer drive arm pin is placed into the back
slot of the trimmer connecting link.
