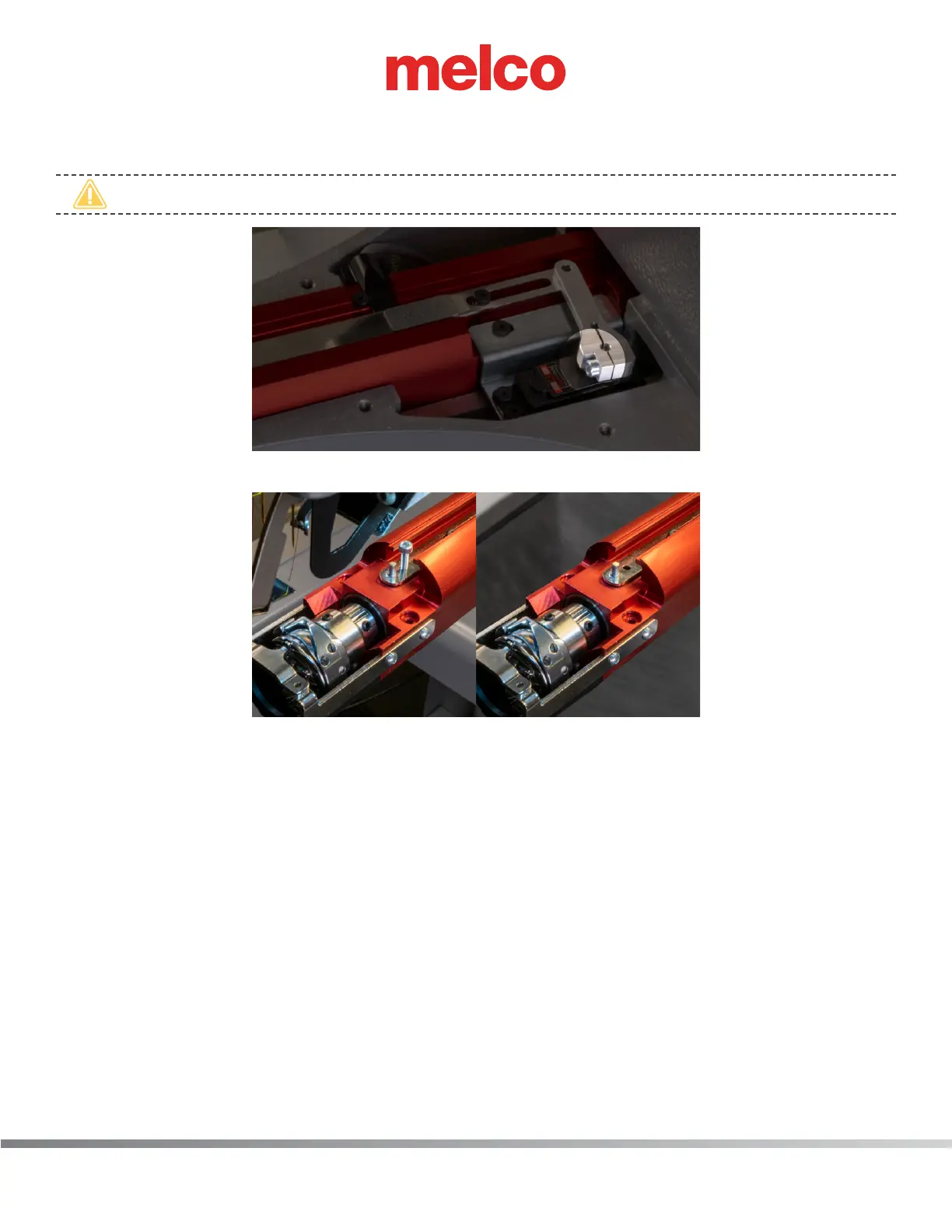

17. With the trimmer drive arm connected to the trimmer connecting link, take a 2.5MM hex driver
and tighten the screw connecting the motor drive arm to the trimmer motor shaft.
•
Important: Make sure that the motor spindle does not move when tightening.
18. Remove the M3x20MM placed at the front of the trimmer connecting link in step 12.
