19. Check the functionality of the trimmer sensor.

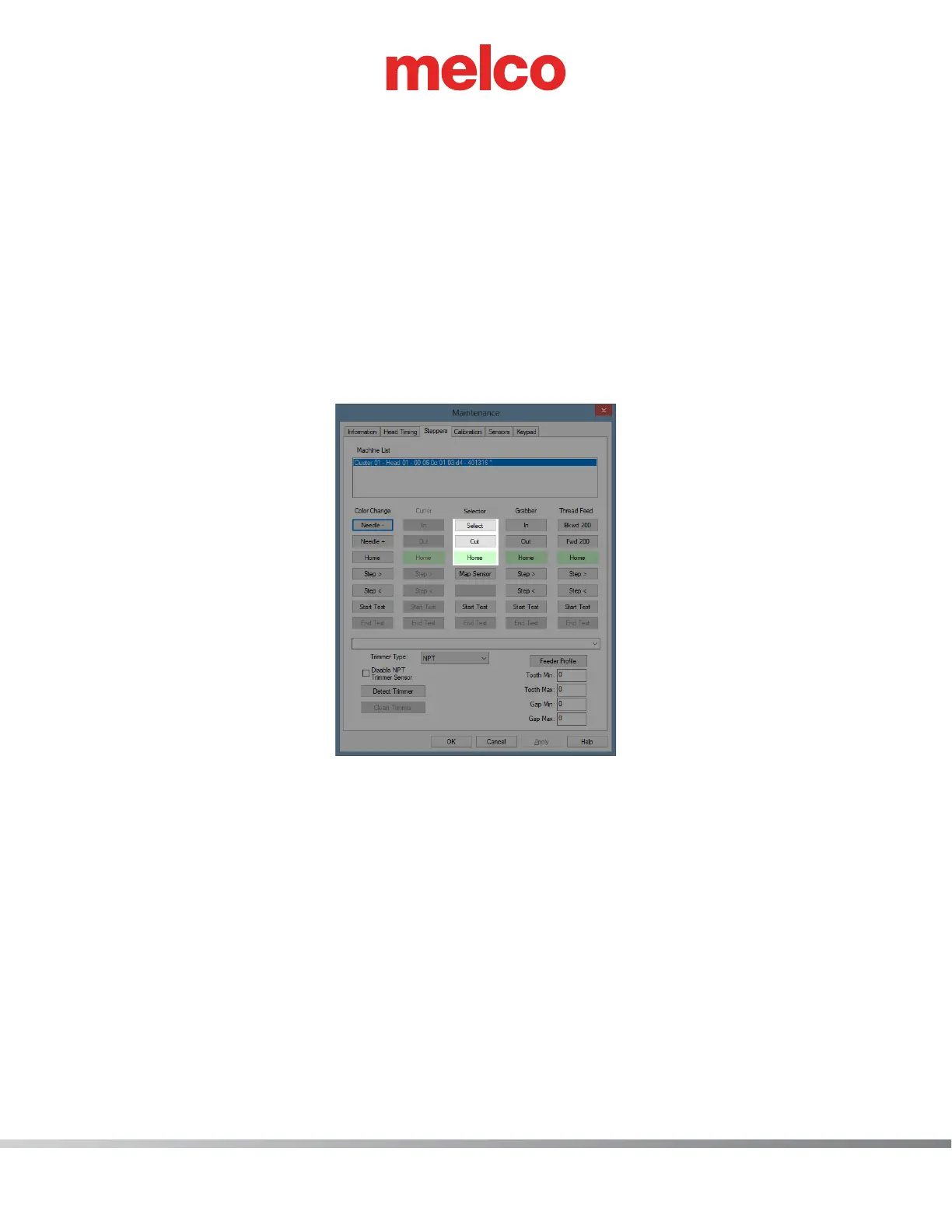

a. In the OS software, go to Tool>Maintenance>steppers.
b. The selector column shows the steps of the trim process.
c. The color of the “home” button changes color when stepping through the trim process de-
pending on the status of the trimmer sensor
• Click [Select] and the [Home] button should change to the color to red.
• Click [Cut] and the [Home] button should change to the color to green.
• Click [Select] again and the [Home] button should change back to the color to red.
• Click [Home] and the [Home] button should change to the color to green.
d. If the status of the trimmer sensor does not correspond to the correct colors, check to make
sure the trimmer drive arm is installed correctly per steps 10,12,13,14 and 15. Repeat test,
if the all trimming process positions listed above, when selected, show the correct indicate
[Home] button color then the sensor is in correct home position.
