12 D33451 | Date 01/2018
Construction and description
Ethernet interface
Via Ethernet interface, the appliance can
be connected to a network, so that you
can transfer programmes created with the
AtmoCONTROL software to the appliance and
read out protocols. The Ethernet interface is
located on the rear of the appliance (Fig. 4).
For identification purposes, each appliance con-
nected must have its own unique IP address.
Setting the IP address is described on page
48 .
You will find a description of how to transfer programmes via Ethernet in the en-
closed AtmoCONTROL manual.
With an optional USB to Ethernet converter, the appliance can be directly connected to a com-
puter / laptop (see Optional accessories on page 15).

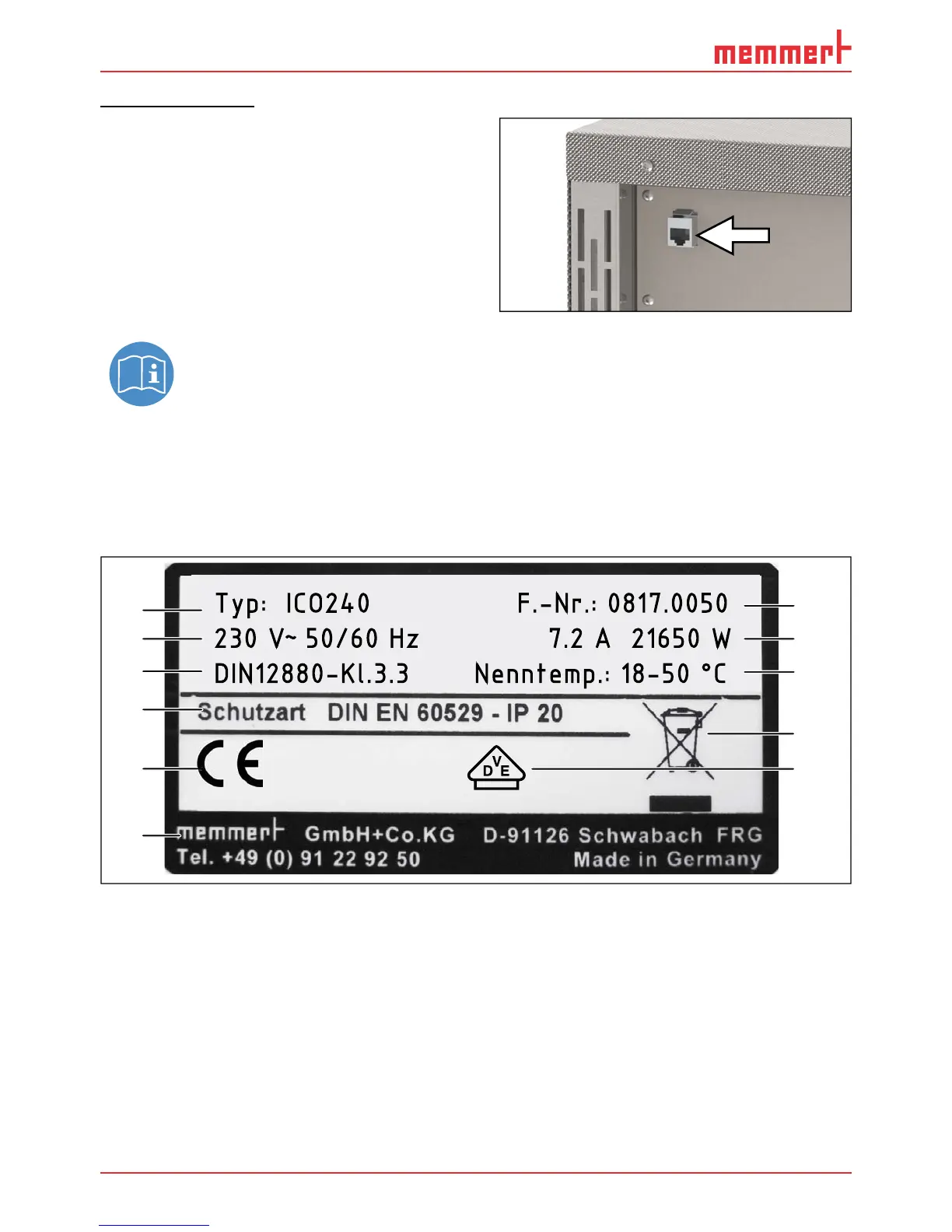

2.6 Designation (nameplate)
The nameplate (Fig. 5) provides information about the appliance model, manufacturer and
technical data. It is attached on the upper right behind the door (see page 10).
Typ: ICO240 F.-Nr.: 0817.0050
230 V
~
50/60 Hz
7.2
21650 W
DIN12880-Kl.3.3 Nenntemp.: 18-50 °C
1
2
3
4
5
6
11
9
10
8
7
0197
Fig. 5 Nameplate (example)
1 Type designation
2 Operating voltage
3 Applicable standard
4 Protection type
5 CE conformity
6 Address of manufacturer
7 Test mark of the notified body
8 Disposal note
9 Temperature range
10 Connection / power ratings
11 Appliance number
Fig. 4 Ethernet interface
