Mercusys MW301R User Manual

MW301R
300Mbps Wireless N Router User Guide

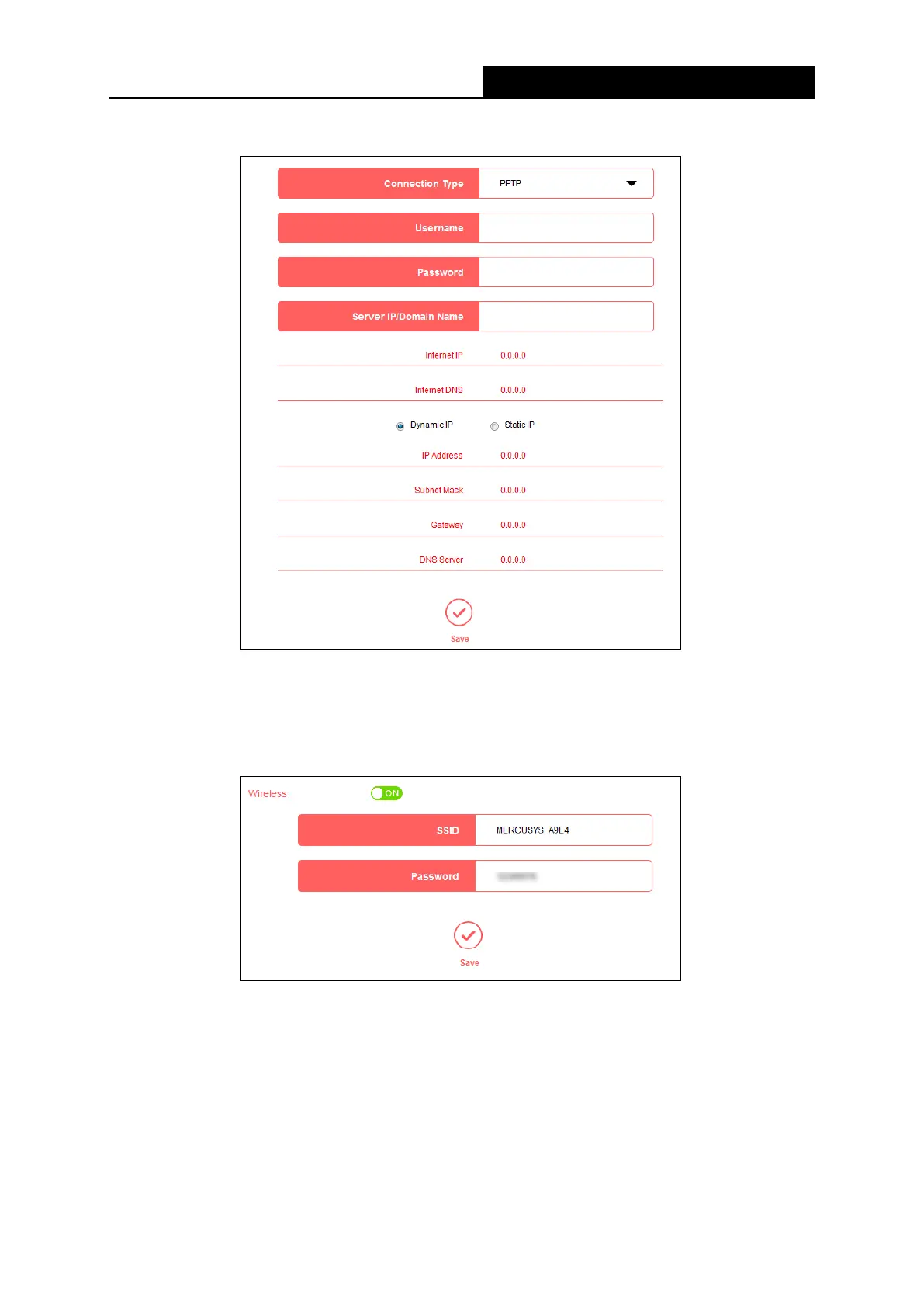

password, and IP address/domain name of the server by the ISP.
4.3 Wireless
Choose Wireless, and you can change the SSID (network name) and password on the page.
▶ SSID - Enter a value of up to 32 characters. The default SSID is MERCUSYS_XXXX. This
field is case-sensitive.
▶ Password - Enter 8-63 characters using a combination of numbers, letters and symbols.
The security version is WPA2-PSK/WPA-PSK, which supports AES encryption that
provides a good level of security. If you select No Security, the filed will be left blank.
- 12 -

Mercusys MW301R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
WLAN data transfer rate (first band)	11 Mbit/s
WLAN data transfer rate (second band)	54 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	IPv4
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Product type	Tabletop router
Product color	White

Weight and Dimensions

Depth	93.31 mm
Width	135.77 mm
Height	25.85 mm
