number of the service port or service port range in the External Port field.
3. Leave the Internal Port blank if it is the same as the External Port, or enter a specific port
number if the External Port is a single port.
4. Enter the IP address of the computer running the service application in the IP Address
field.
5. Select the protocol used for this application in the Protocol drop-down list, either TCP,
UDP, or All (All protocols supported by the router).
6. Click Save.
To modify an existing entry:
1. Find the desired entry in the table.
2. Click
in the Edit column.
3. Click Save.

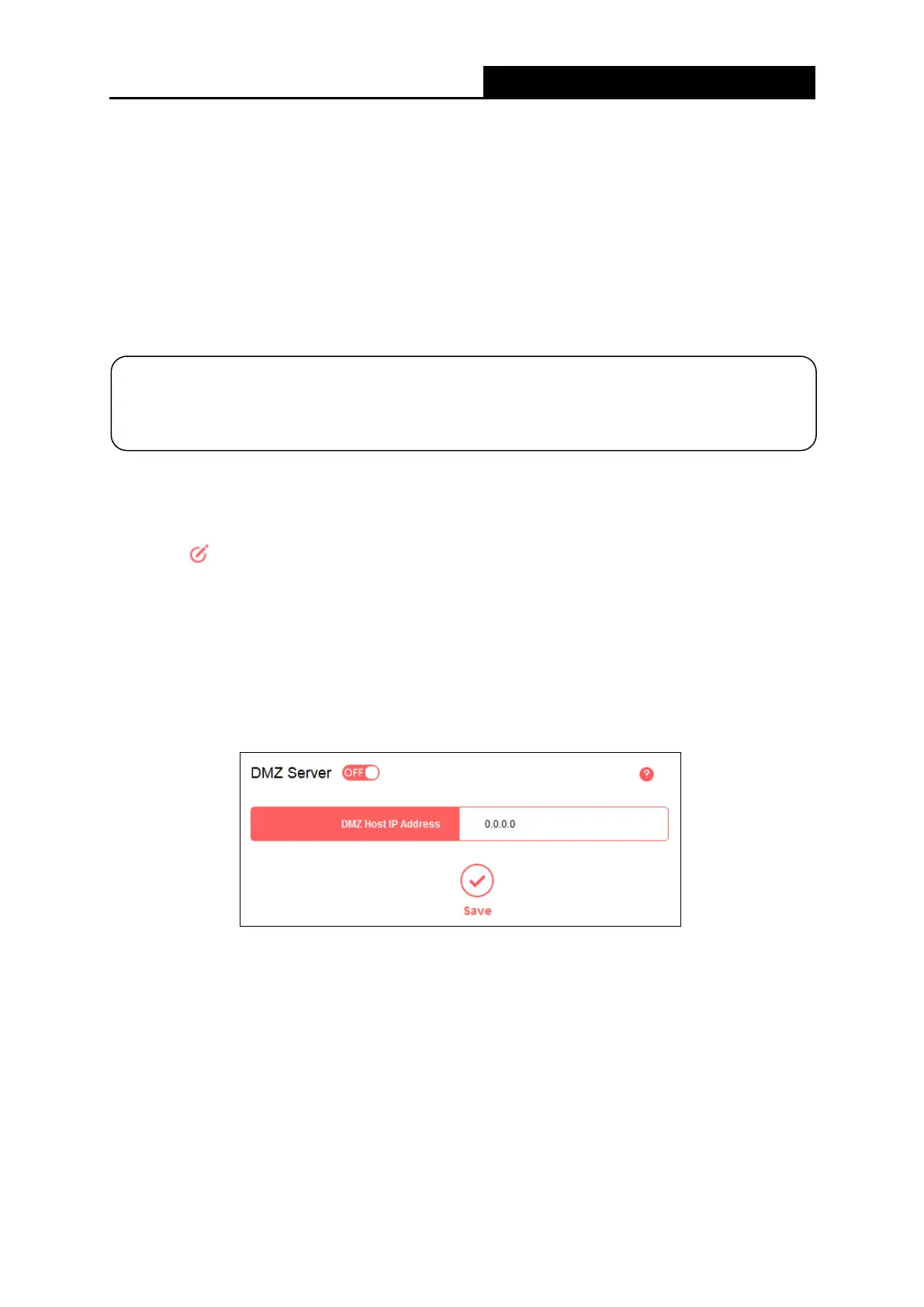

5.4.2 DMZ Server
Go to Advanced Users→DMZ Server, and then you can view and configure DMZ host on the
page. The DMZ host feature allows one local host to be exposed to the Internet for a
special-purpose service such as Internet gaming or video conferencing.
To assign a computer or server to be a DMZ server:
1. Enter the IP address of a local PC that is set to be DMZ host in the DMZ Host IP Address
field.
2. Toggle On to enable DMZ Server.
3. Click Save.
5.4.3 UPnP Settings
Go to Advanced Users→UPnP Settings, and then you can view the information about UPnP.
The Universal Plug and Play (UPnP) feature allows the devices, such as Internet computers, to
NOTE:
Please make sure the external port is different from the port used for local and remote
management, or the virtual server may not be working properly.
- 39 -

Mercusys MW301R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
WLAN data transfer rate (first band)	11 Mbit/s
WLAN data transfer rate (second band)	54 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	IPv4
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Product type	Tabletop router
Product color	White

Weight and Dimensions

Depth	93.31 mm
Width	135.77 mm
Height	25.85 mm
