Mercusys MW301R User Manual

MW301R
300Mbps Wireless N Router User Guide
▶ Channel Width - Select the channel width from the drop-down list. The default setting is
Auto.
▶ Transmit Power - Select either High, Middle, or Low to specify the data transmit power.
The default and recommended setting is High.
▶ AP Isolation - Select this checkbox to enable the AP Isolation feature that allows you to
confine and restrict all wireless devices on your network from interacting with each other,
but still able to access the Internet. AP isolation is disabled by default.
▶ Enable SSID Broadcast - If you select the Enable SSID Broadcast checkbox, the wireless
router will broadcast its name (SSID) on the air.

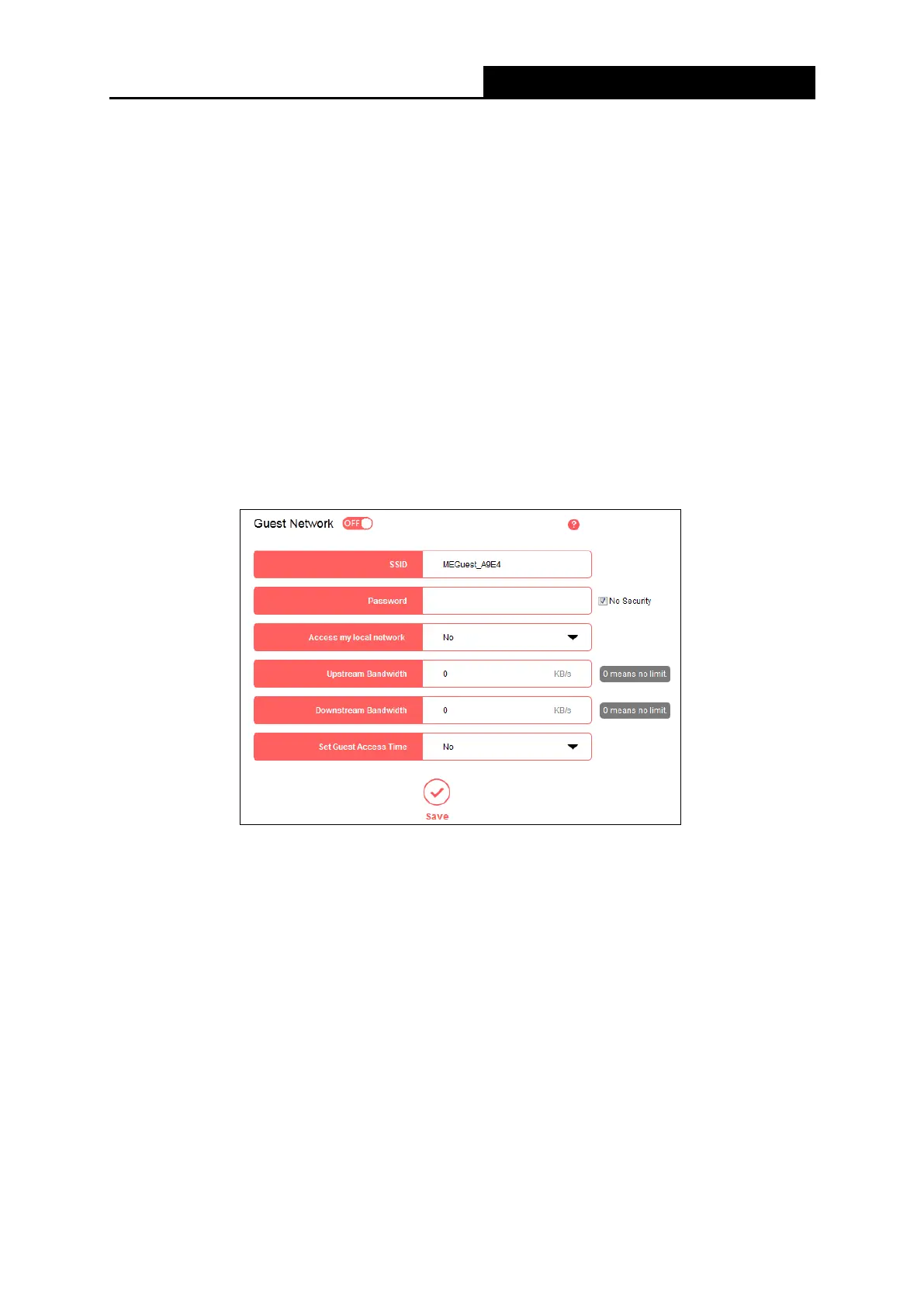

5.2.2 Guest Network
Go to Wireless→Guest Network, you can configure the settings for the wireless guest
network on this page.
▶ Guest Network - Click to enable or disable the Guest Network function here.
▶ SSID/Password - Set the network name and password for Guest Network. Password may
contain 8-63 characters. It is recommended you use a combination of numbers, letters
and symbols.
▶ Access my local network - Select whether to allow wireless devices on the guest network
to access your local network. The default value is No.
▶ Upstream Bandwidth - The upload speed through the WAN port for Guest Network.
▶ Downstream Bandwidth - The download speed through the WAN port for Guest Network.
▶ Set Guest Access Time - Set the time period to enable guest network.
- 30 -

Mercusys MW301R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
WLAN data transfer rate (first band)	11 Mbit/s
WLAN data transfer rate (second band)	54 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	IPv4
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Product type	Tabletop router
Product color	White

Weight and Dimensions

Depth	93.31 mm
Width	135.77 mm
Height	25.85 mm
