▶ Ping Timeout - Time to wait for a response, in milliseconds. The default is 800.
▶ Tracert Max Hops - Set the maximum number of hops (max TTL to be reached) in the path
to search for the target (destination). The default is 20.
Click Start to check the connectivity of the Internet.
The Diagnostic Results page displays the result of diagnosis.

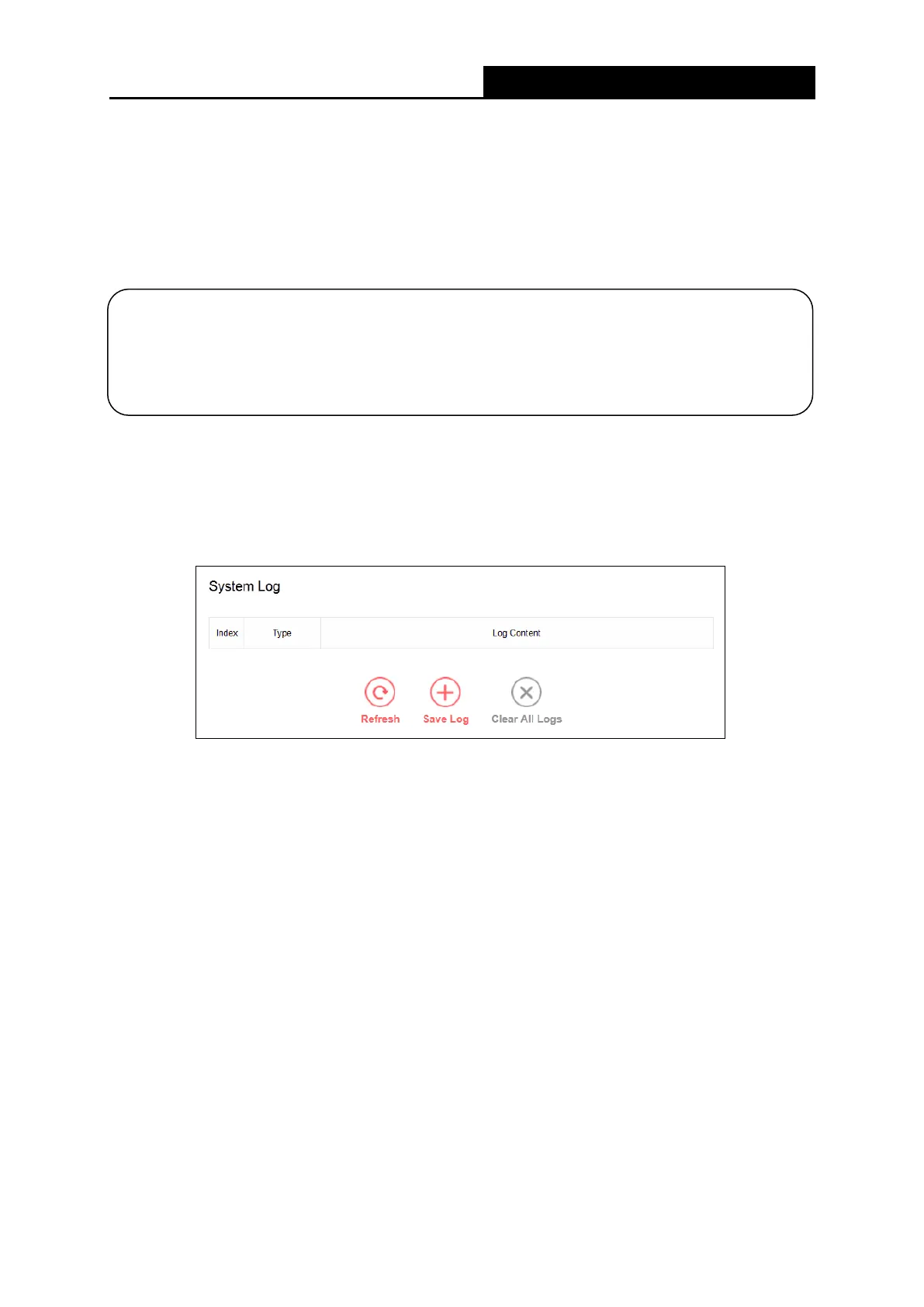

5.5.8 System Log
Go to System Tools→System Log, and then you can view the logs of the router.
▶ Refresh - Refresh the page to show the latest log list.
▶ Save Log - Click to save all the logs in a txt file.
▶ Clear All Logs - All the logs will be deleted from the router permanently, not just from the
page.
NOTE:
1. Only one user can use the diagnostic tools at one time.
2.
Ping Packet Number, Ping Packet Size and Ping Timeout are Ping Parameters, and
Tracert Max Hop is Tracert Parameter.
- 50 -

Mercusys MW301R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
WLAN data transfer rate (first band)	11 Mbit/s
WLAN data transfer rate (second band)	54 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	IPv4
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Product type	Tabletop router
Product color	White

Weight and Dimensions

Depth	93.31 mm
Width	135.77 mm
Height	25.85 mm
