Mercusys MW301R User Manual

MW301R
300Mbps Wireless N Router User Guide
▶ Website Domain - Here you can enter 4 domain names, either the full name or the
keywords (for example, Mercusys). Any domain name with keywords in it
(www.mercusys.com) will be blocked or allowed.

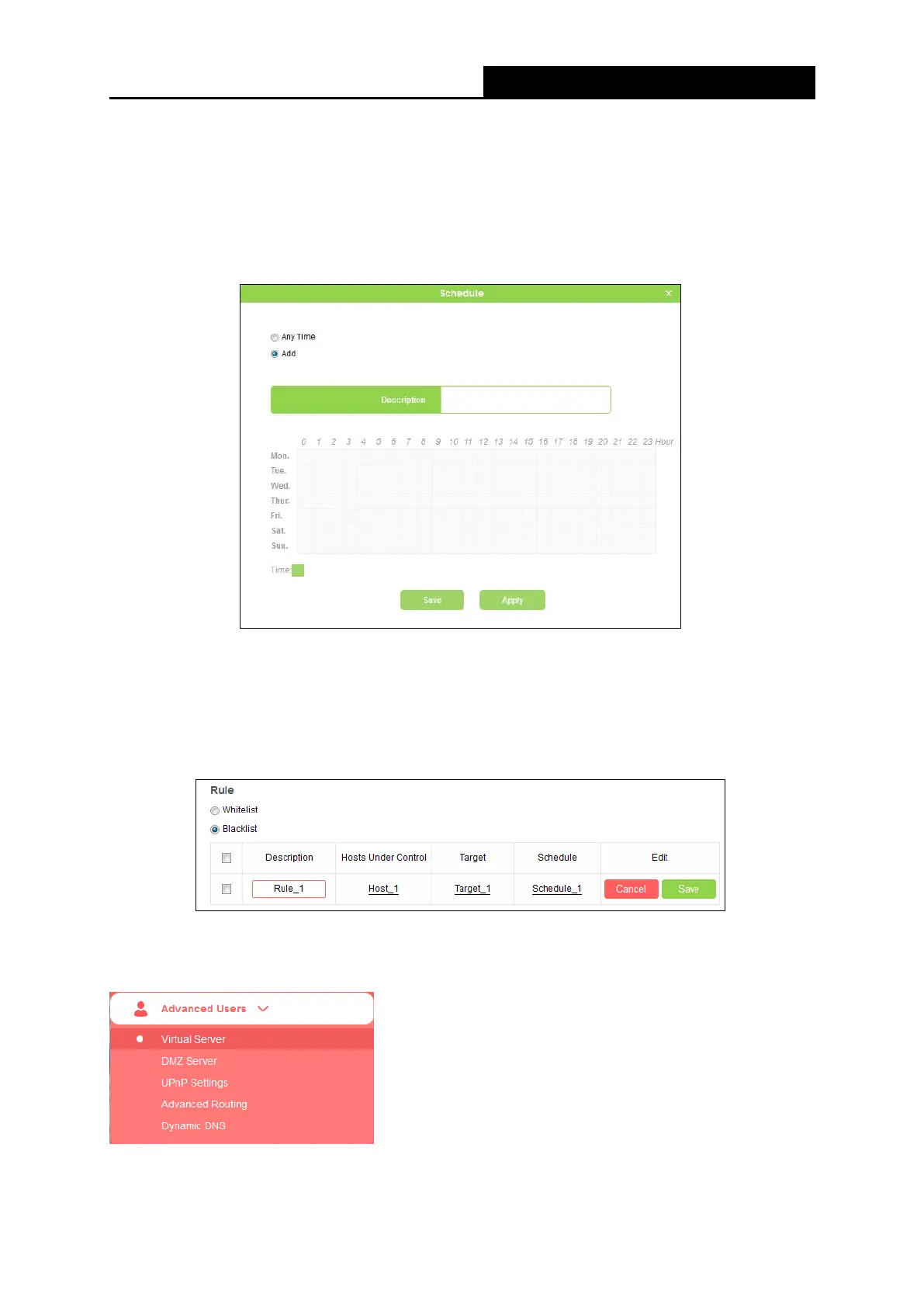

6. Click Configure in the Schedule column, you can select Any Time, or select Add to add a
new schedule. Then click Apply.
▶ Description - In this field, create a description for the schedule. Note that this
description should be unique.
▶ Time - Click and drag across the cells to set the effective time periods.
7. Click Save to complete the settings.
5.4 Advanced Users
There are five submenus under the Forwarding menu: Virtual Server, DMZ Server, UPnP
- 37 -

Mercusys MW301R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
WLAN data transfer rate (first band)	11 Mbit/s
WLAN data transfer rate (second band)	54 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	IPv4
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Product type	Tabletop router
Product color	White

Weight and Dimensions

Depth	93.31 mm
Width	135.77 mm
Height	25.85 mm
