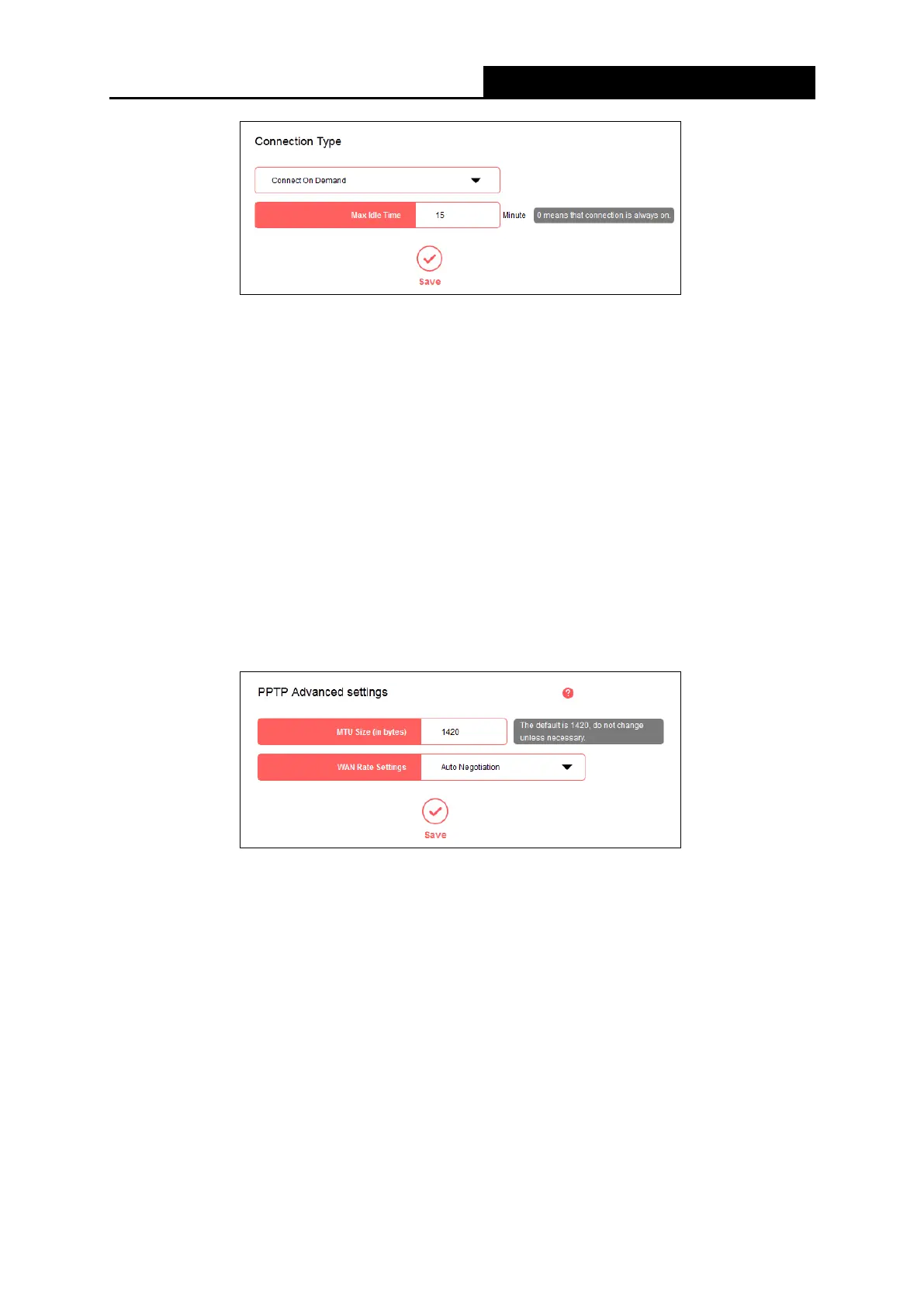

▶ Connect on Demand - In this mode, the internet connection can be terminated
automatically after a specified inactivity period (Max Idle Time) and be re-established when
you attempt to access the Internet again. If you want your Internet connection keeps
active all the time, please enter 0 in the Max Idle Time field.
Otherwise, enter the number of
minutes you want to have elapsed before your Internet access disconnects.
▶ Connect Automatically - The connection can be re-established automatically when it is
down.
▶ Connect Manually - This mode also supports the Max Idle Time function as Connect on
Demand mode. The Internet connection can be disconnected automatically after a
specified inactivity period.
• PPTP Advanced settings
▶ MTU Size (in bytes) - The default MTU size is 1480 bytes. It is NOT recommended that you
change the default MTU size unless required by your ISP.
▶ WAN Rate Settings - Select the rate and duplex mode for the WAN port. It is
recommended to keep the default auto mode.
Click Save to make the settings effective.
5.1.2 LAN Settings
Go to Network→LAN Settings, you can configure the IP parameters of the LAN on the screen
- 21 -
