MW301R
300Mbps Wireless N Router User Guide
If your ISP uses Pass-Through (Bridge) network deployment, select Pass-Through (Bridge). No
configuration is required for this type of connection.
For other connection types, select Router and complete the IPv6 configuration.

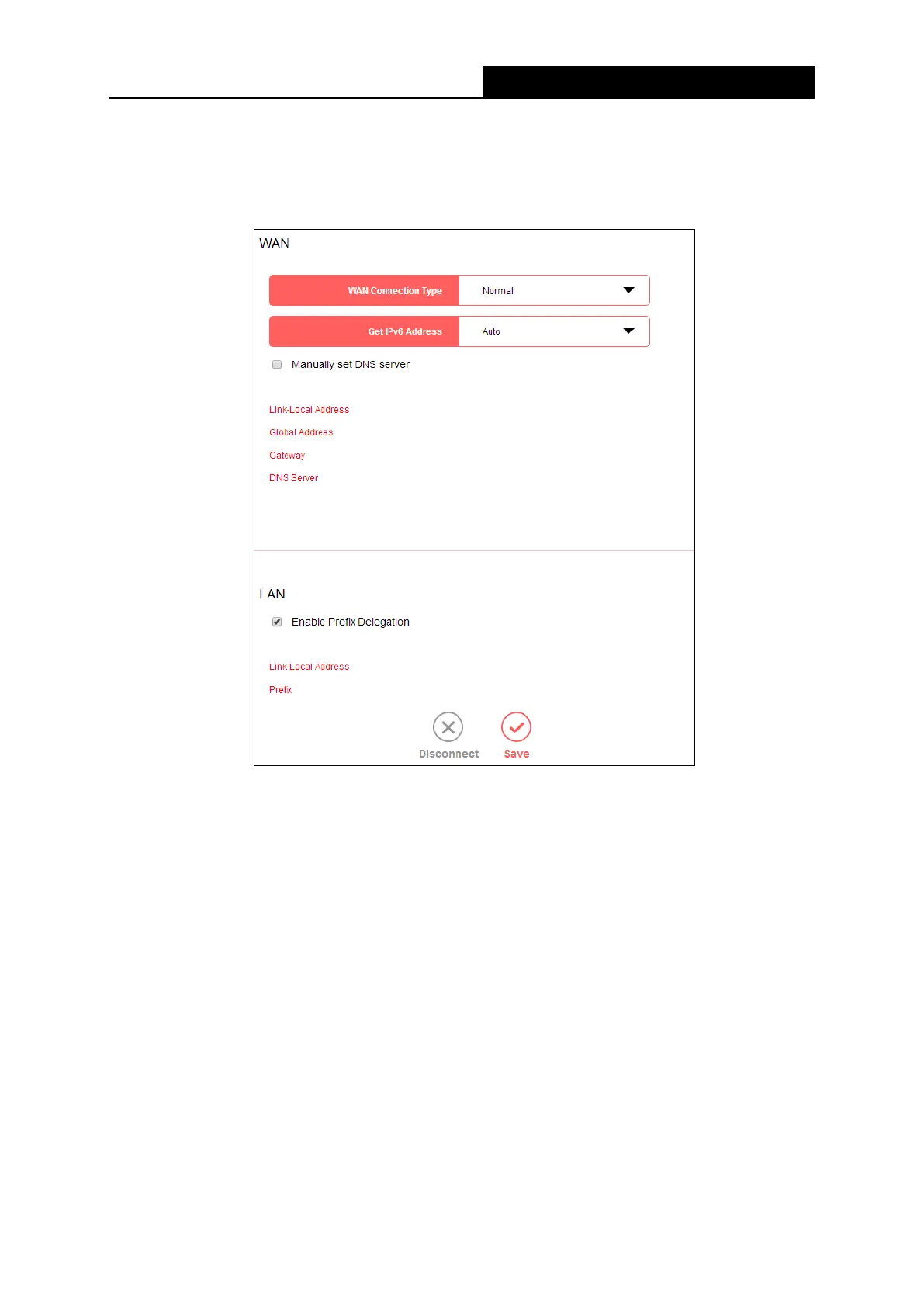

Wan Connection Type - Select an appropriate WAN connection type according to the
information provided by your ISP.
Normal - Select this type for normal IPv6 internet connection.
PPPoE - Select this type if your ISP uses PPPoEv6 for assigning address, and
provides a username and password.
Tunnel 6to4 - Select this type if your ISP uses 6to4 deployment for assigning
address.
Get IPv6 Address - Select Auto or Static according to the information provided by your
ISP.
Address - The IPv6 address of the router's WAN interface.
Prefix Length - The IPv6 prefix length of the router's WAN interface.
Gateway - The default IPv6 gateway for the router's WAN interface.
Manually set DNS server - The DNS addresses will be automatically assigned to the
router. You can also set manually according to your needs.
Primary/Secondary DNS - Enter the primary/Secondary IPv6 DNS server address
- 23 -
