Mercusys MW301R User Manual

MW301R
300Mbps Wireless N Router User Guide

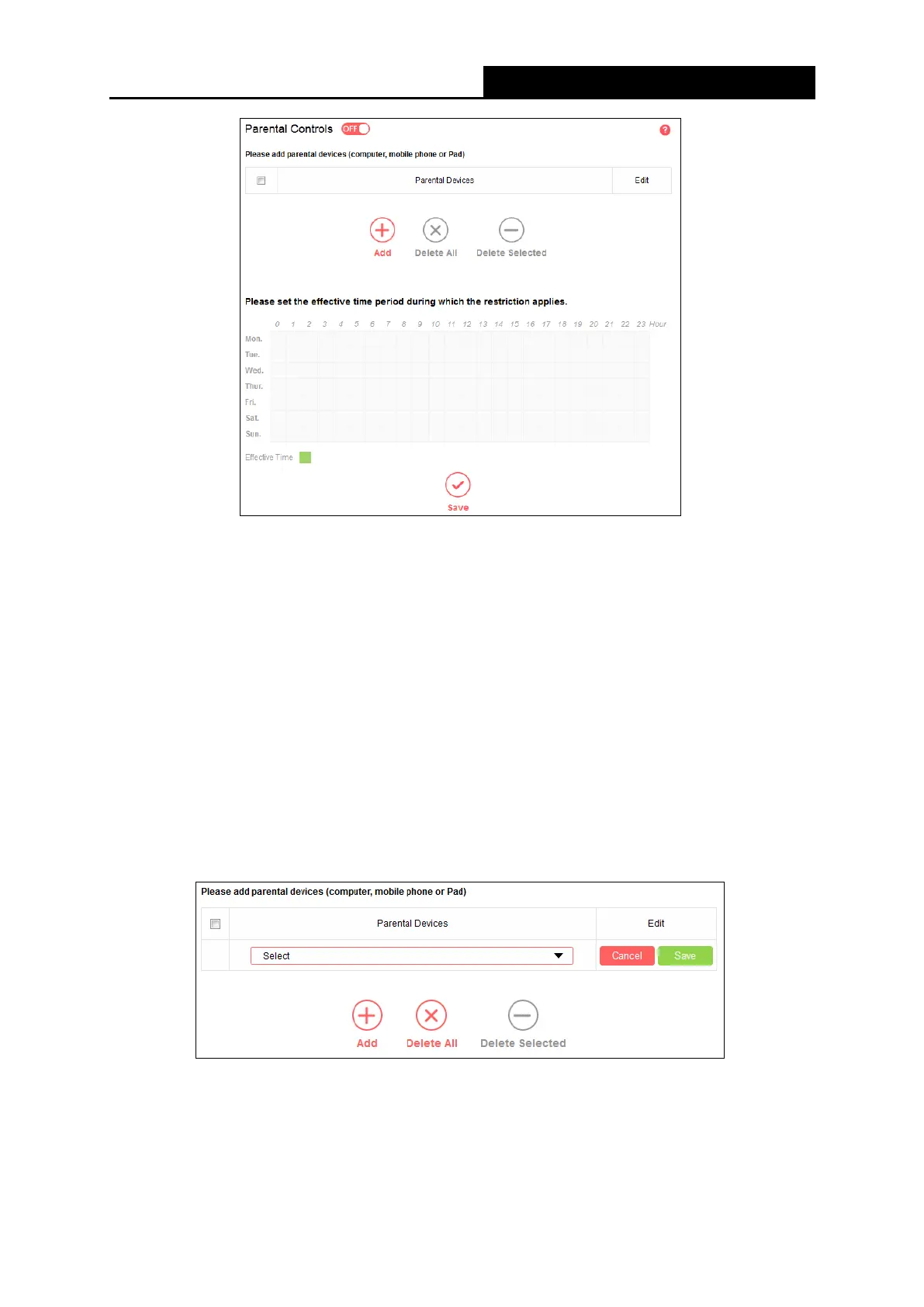

▶ Parental Controls – Click to enable or disable this function.
▶ Parental Devices – Displays the MAC address of the controlling PC.
▶ Edit - Here you can edit an existing entry.
▶ Add - Click to add a new device.
▶ Delete All - Click to delete all devices in the table.
▶ Delete Selected - Click to delete selected devices from the table.
▶ Effective Time - All devices except the parental devices will be restricted. Click and drag
across the cells to set the restriction time periods.
To add a new entry, follow the steps below.
1. Click Add.
2. Select a device from the drop-down list.
3. Click Save.
To set the effective time, follow the steps below.
- 33 -

Mercusys MW301R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
WLAN data transfer rate (first band)	11 Mbit/s
WLAN data transfer rate (second band)	54 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	IPv4
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Product type	Tabletop router
Product color	White

Weight and Dimensions

Depth	93.31 mm
Width	135.77 mm
Height	25.85 mm
