Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router

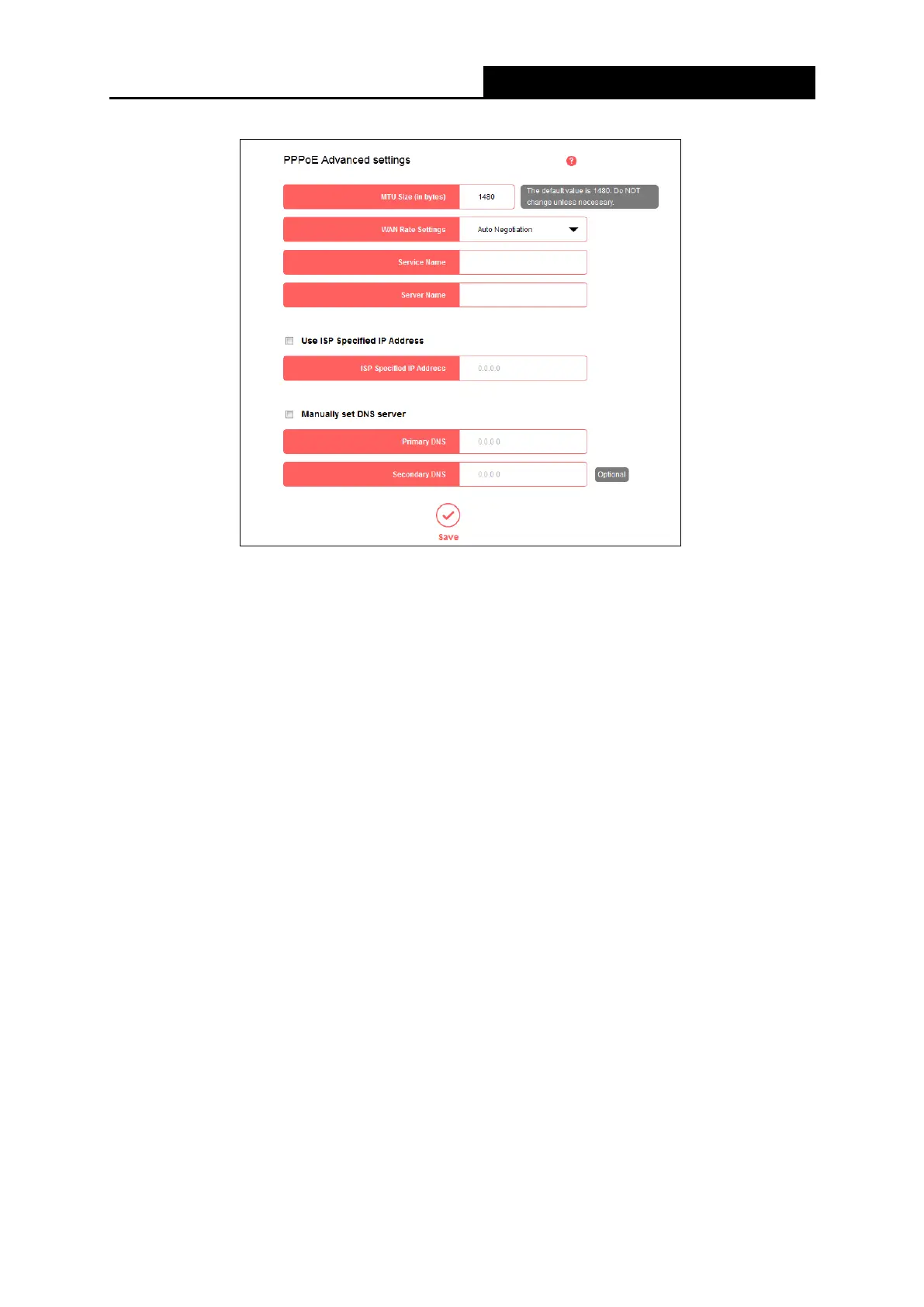

● PPPoE Advanced settings
• MTU Size (in bytes) - The default MTU size is 1480 bytes. It is NOT recommended that you
change the default MTU Size unless required by your ISP.
• WAN Rate Settings - Select the rate and duplex mode for the WAN port. It is
recommended to keep the default auto mode.
• Service Name/Server Name - The service name and server name should not be
configured unless it is necessary for your ISP.
In most cases, leaving these fields blank will
work.
• Use ISP Specified IP Address - If your ISP does not automatically assign IP addresses to
the router during login, select this option and enter the IP address provided by your ISP in
dotted-decimal notation.
• Manually set DNS server - If your ISP gives you one or two DNS addresses, select this
option and enter the primary and secondary addresses into the corresponding fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
Click Save to make the settings effective.
- 15 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
