Multinorm/FonS/Poly
2.3 Instrument input/output ports

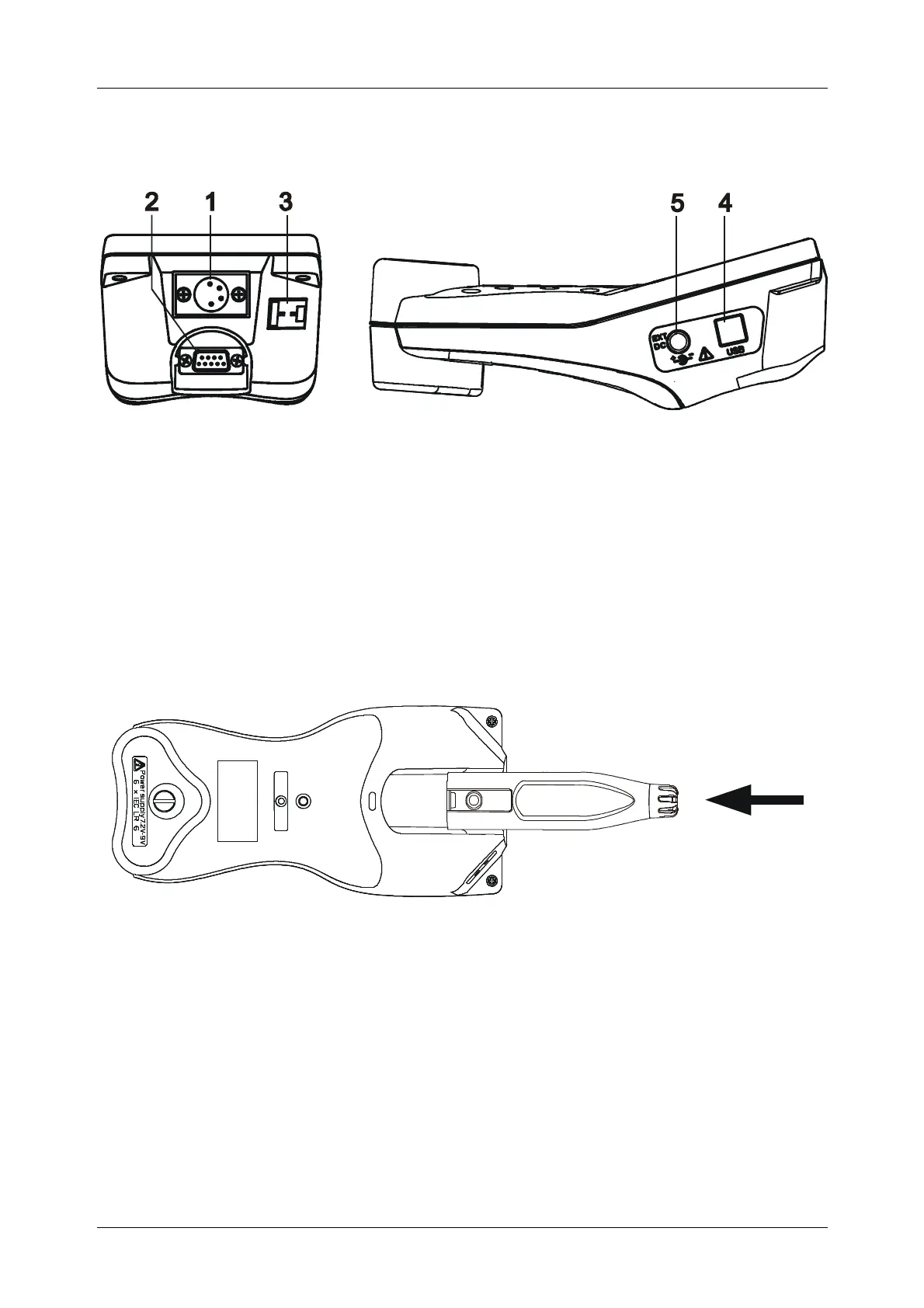

Picture 2.3: Instrument input/output ports
1. Universal measuring port 1
Illuminance probe type B A1092
Luminance probe type B A1132
Black globe thermometer A1131
Sound probe class 1 A1146
Sound probe class 2 A1151
2. Universal measuring port 2
Probe adapter A1144
Picture 2.4: Proper adapter connection to universal measuring port 2
Probe adapter supports the following probes:
Microclimatic probe A1091
Temperature and humidity probe A1127
3. Thermocouple measuring port type K
Thermocouple probe type K A1128
4. USB communication interface
5. Power supply adapter input
13
