Multinorm/FonS/Poly
4.4 Recalling logged measuring records
4.4.1 Loggers recall menu
Choose Loggers Recall/Clear option in Main menu and press the key to
reach Loggers recall menu. This menu is completely the same as Results recall
menu described in chapter 4.3.1. Use the same procedures to filter out which loggers to
recall or to delete. The difference is only in View menu, where the statistics of the
recalled logger records and not the actuall record can be displayed. Such statistics is
shown in Picture 4.8.

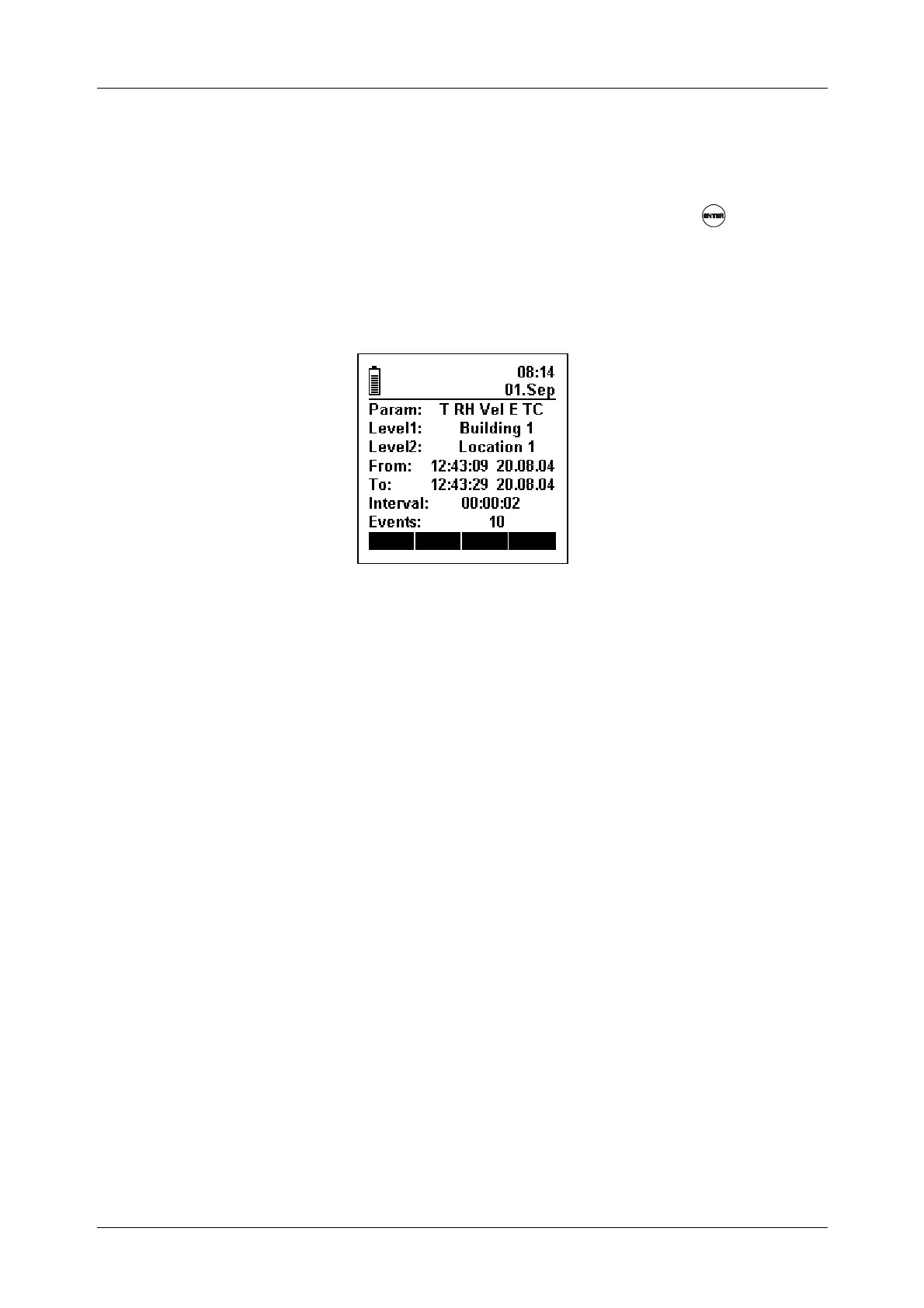

Picture 4.8: Statistics of the recalled logger
It is possible to see which measured (not calculated) parameters were logged, on
which memory location the logger is stored, start and stop time, logging interval and the
number of measuring record that were logged.
26
