2 Installation
774 Oven Sample Processor, Instructions for use
22

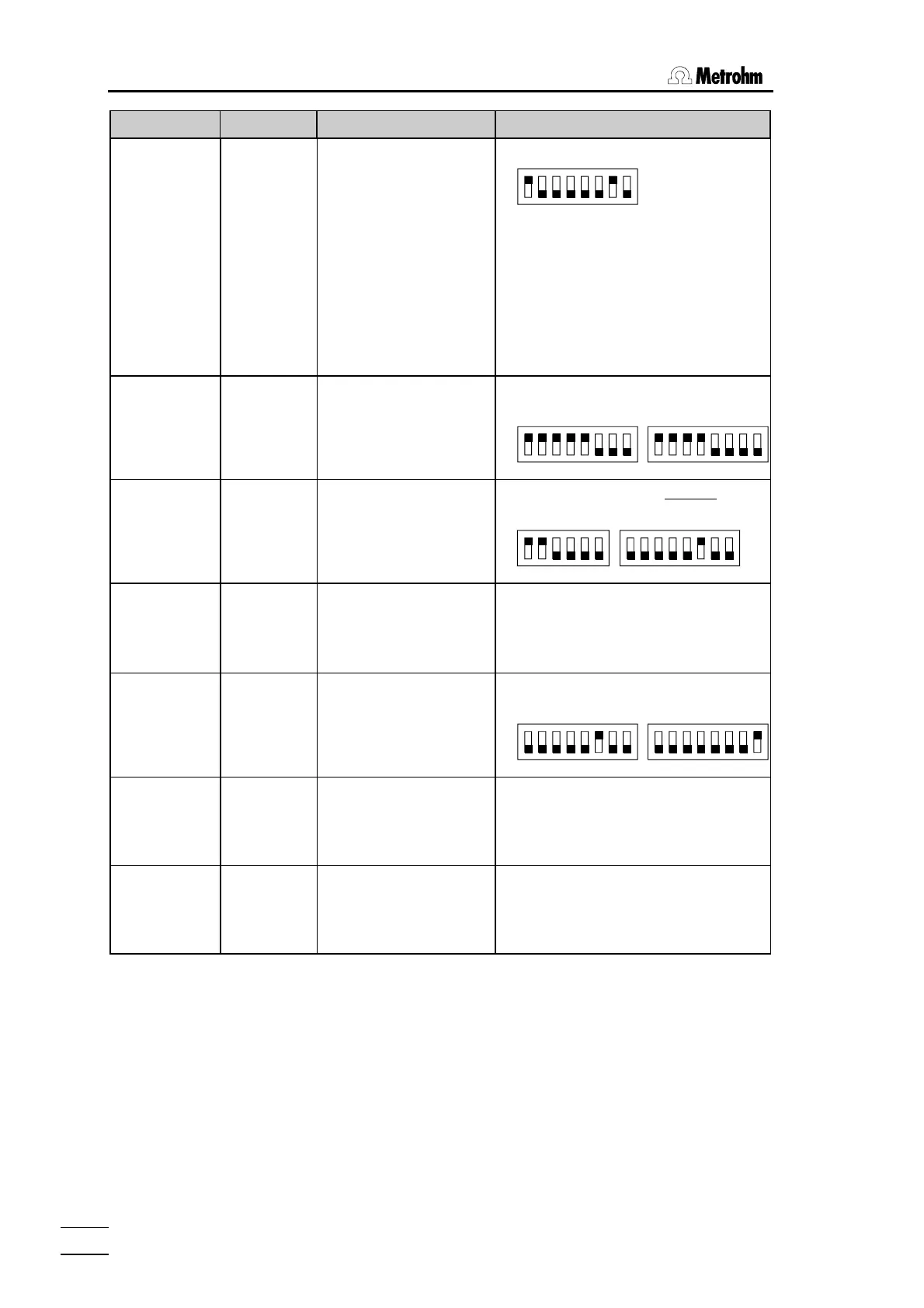

Printer type Cable RS232 Settings Settings on Printer
Citizen
IDP560-RS
6.2125.050
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
character set:Citizen
DIP switch settings:
on
off
12345678
The 7-bit ASCII character is altered to the
specific national character set by setting
the jumpers J1 and J2 as follows:
J1 J2 character set
open open USA
closed closed Great Britain
closed. open France
open closed Germany
No Spanish character set available
(French may be best).
Epson
with 6-pole
round plug
6.2125.040
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
character set: Epson
DIP switch settings:
SW1 SW2
on
off
12345678
12345678
Epson
with additional
serial interface
#8148
6.2125.050
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
character set: Epson
DIP switch settings on the Interface:
SW1 SW2
on
off
12345678
123456
Epson LX-300 6.2125.050
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
character set: Epson
see printer manual
HP Deskjet
with built-in
serial interface
6.2125.050
or cable 25-
pole neg. /
9-pole pos.
(e.g. HP
C2933A)
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
character set: HP
DIP switch settings :
A B
on
off
12345678
12345678
HP Laserjet
with built-in
serial interface
cable 25-
pole neg. /
9-pole pos.
(e.g. HP
C2933A)
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
character set: HP
see printer manual
HP Deskjet /
Laserjet
with parallel
interface
6.2125.020
+ serial/
parallel-
converter
2.145.0300
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
character set: HP
see printer manual*
* character set PC-8 is required.
PCL3 command: esc(10U
