Basic components
15
Left view
1
3
2
4
5
6
7 8

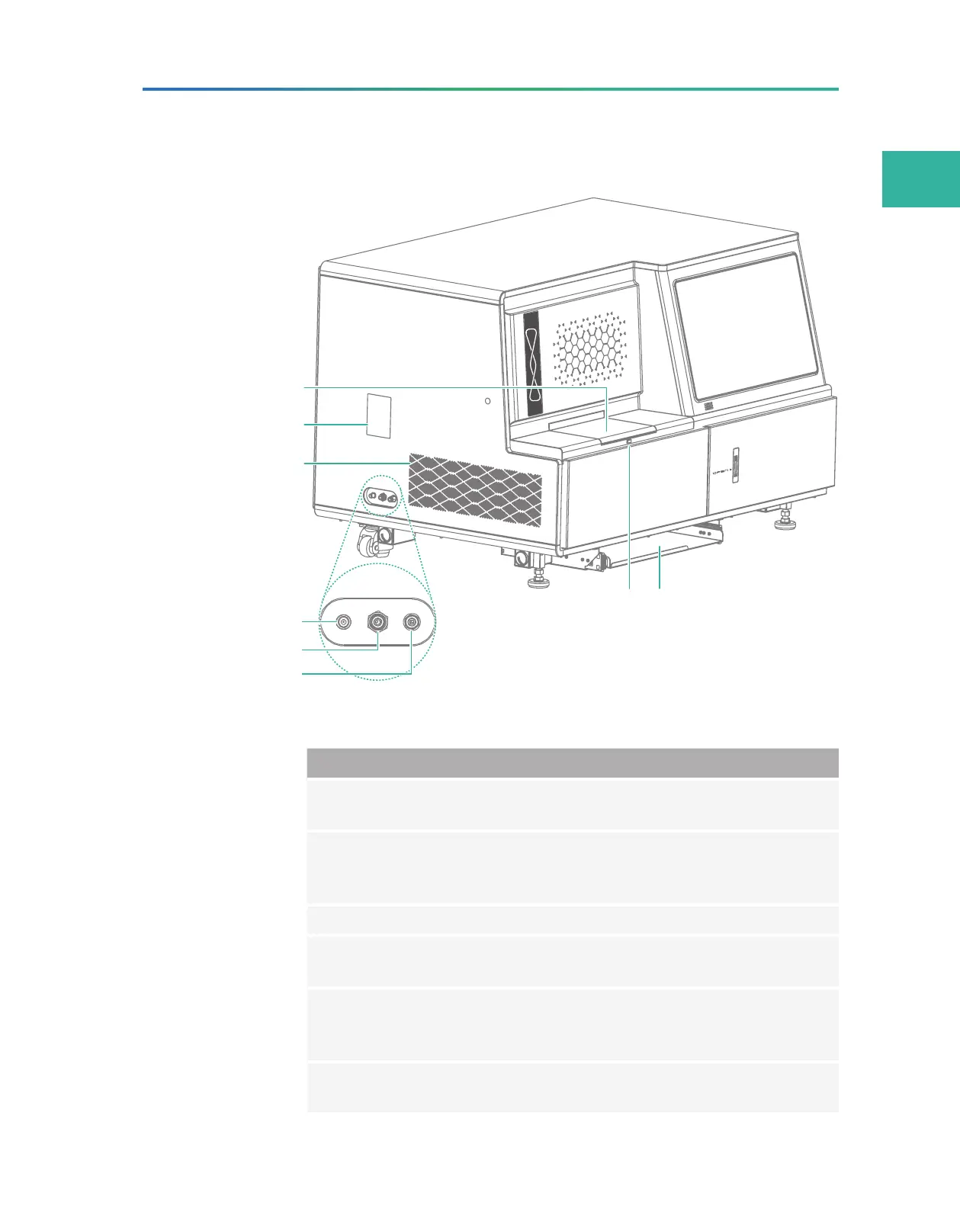

Figure 5 Left view
No. Name Description
1
Flow cell
compartment
Holds flow cells and controls the temperature
for biochemical reactions.
2 Window
You can observe the status of the fluidics
system and negative pressure gauge through
the window.
3 Ventilation inlet Ventilates the device.
4 Level sensor port
Connects the waste level sensor in the waste
container.
5
Condensed water
port
Connects the condenser tube to dispense
the condensed water that is produced by the
cooling device to the waste container.
6 Waste port
Connects the waste tube to dispense the
waste to the waste container.
