Basic components
19
No. Name Description
3 Flow cell stage A
Holds the flow cell A and controls the
temperature that is required for biochemical
reaction.
4
Flow cell attachment
button A
Press to activate the vacuum for attachment
or release of the flow cell A.
5
Flow cell attachment
button B
Press to activate the vacuum for attachment
or release of the flow cell B.
Reagent compartment
6
4
5
1
2
3
7
8

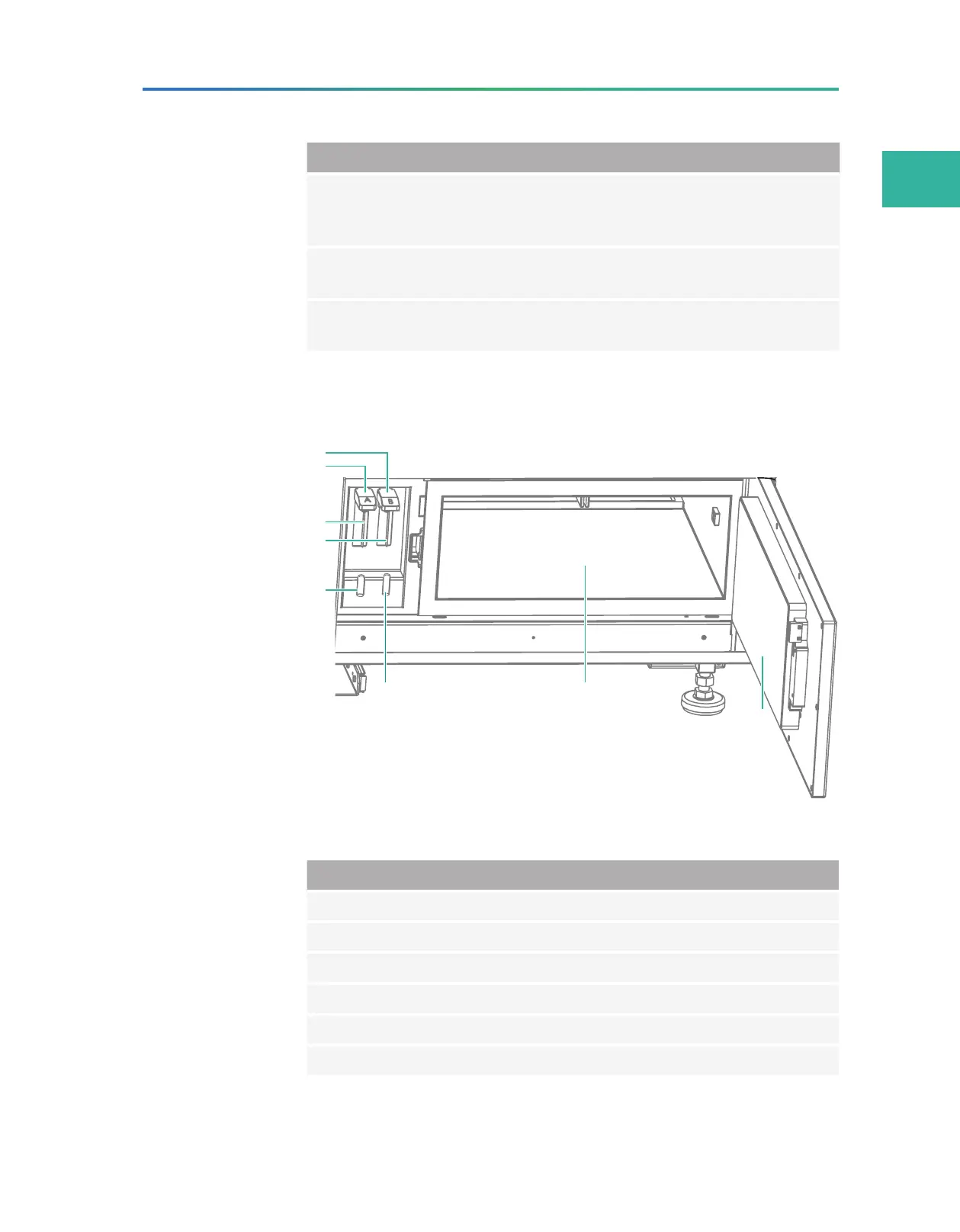

Figure 8 Reagent compartment
No. Name Description
1 Base B Controls needle B.
2 Base A Controls needle A.
3 DNB needle A Aspirates DNB A.
4 DNB needle B Aspirates DNB B.
5 Tube rack A Holds tube A.
6 Tube rack B Holds tube B.
