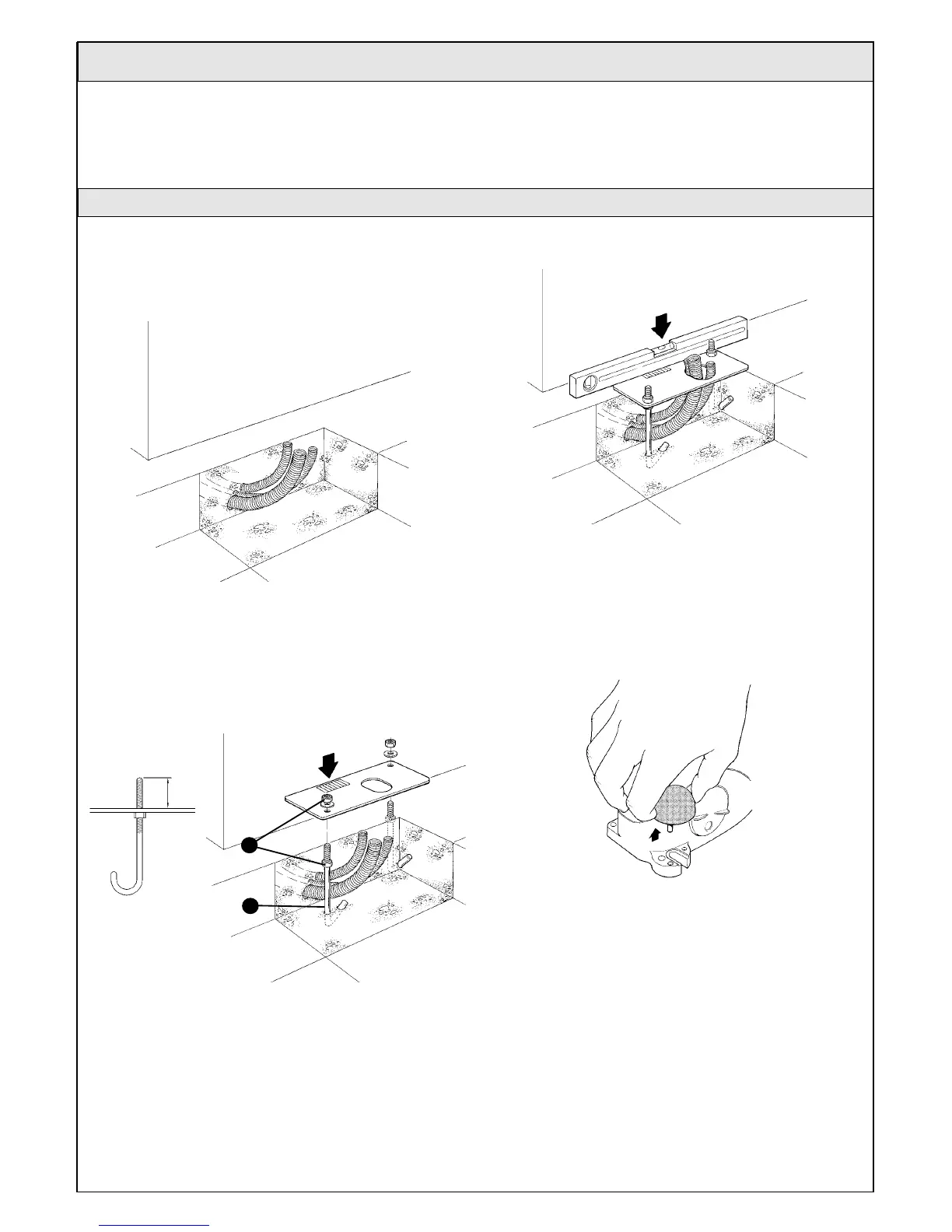

1Dig the foundations according to the "Preliminary checks" paragraph
and in particular the distances indicated in figure 11 on page 10.
2 Lay the conduits for the power cables leaving them 30-50 cm longer.
3 Fit the two bent pins [B] into the foundation plate and fix them above
and below with two M8 nuts [A]; make sure the projecting part does not
exceed the maximum height indicated in the figure.
4 Position the foundation plate making sure that the grooved side
(indicating the position of the pinion) faces the gate observing the
distances shown in figure 11.
5 Fit the conduits through the hole in the foundation plate.
6Pour the concrete.
7Sink the plate into the concrete and make sure it is perfectly level.
8When the concrete is dry enough (after a few days), unscrew the two
nuts over the plate as they which will no longer be used.
9 Cut the cable conduits approximately 3-4cm above the plate.
10 Remove the nut cover on the gearmotor.
3.3 Installation of the Various Devices
3.3.1 Mounting on gates without rack
Figure 18
10 Instructions SL1
The SL1K gearmotor can be mounted in the two different situations:
A) Mounting on a gate without rack (paragraph 3.3.1 ); in this case the
gearmotor must be installed first, followed by the CR100 rack.
B) Mounting on a gate with rack (paragraph 3.3.2 ); in this case the
gearmotor must be adapted to the existing rack.
Figure 19
36
B
A
Figure 20
Figure 21
