Mhouse SL1 - SL1 K Electromechanical Gearmotor

Instructions SL1 5

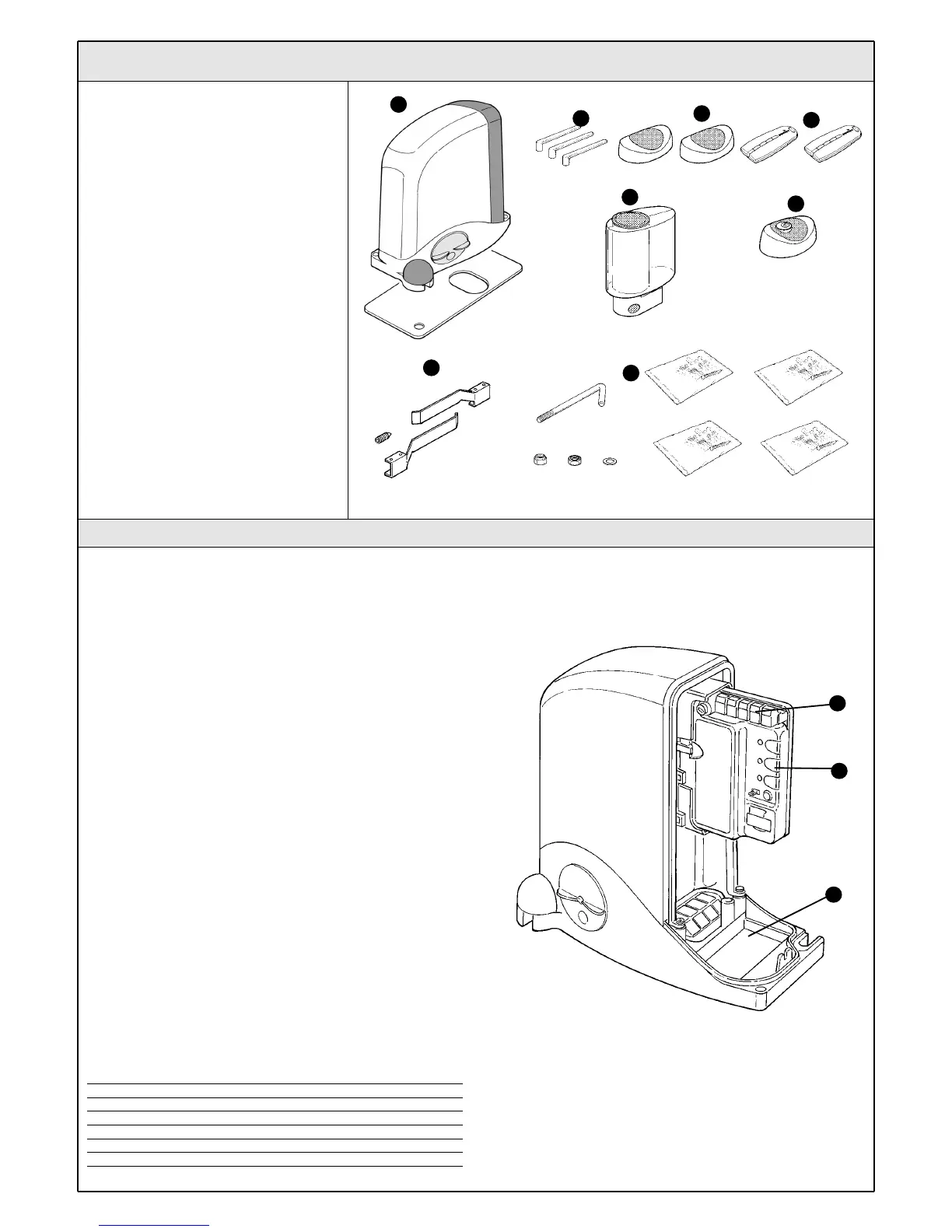

SL1 consists of the devices shown in figure 2;
make immediately sure that they correspond to
the contents of the package and verify the
integrity of the devices.
Note: to adapt SL1 to local regulations, the
contents of the package may vary; an exact list
of the contents is shown on the outside of the
package under the "Mhousekit SL1 contains"
heading.
2.3 Description of devices
A) 1 motoriduttore elettromeccanico SL1K
con centrale di comando incorporata e
piastra di fondazione.
B) 3 release keys.
C) 1 pair of PH1 photocells (consisting of a TX
and an RX).
D) 2 TX4 radio transmitters.
E) FL1 flashing light with incorporated aerial.
F) 1 KS1 key-operated selector switch and
two keys.
G) 2 limit switch brackets
H) Miscellaneous small parts: screws, screw
anchors, etc. (see tables 1,2,3,4).
SL1 is an electromechanical gearmotor consisting of a helical geared
reduction gear and a 24V direct current motor. It features a key-operated
mechanical release mechanism that allows you to move the gate
manually in the event of a power failure.
The gearmotor is fixed to the ground at the side of the gate with the
relative foundation plate and operates the gate with a rack and pinion
system.
The control unit actuates the gearmotors and provides for the control
and supply of the different components; it features an electronic board
with incorporated radio receiver.
SL1K includes a housing [C] for the PR1 buffer battery (optional), which
is necessary for operation in case of power failure.
The control unit can actuate the gearmotor with two speeds: "slow" and
"fast".
The three P1, P2 and P3 buttons [B] and the corresponding LED's are
used to program the control unit.
The yellow button allows the gate to be controlled locally during testing.
To facilitate the electrical connections there are separate terminals for
each device [A], which are removable and colour-coded based on the
function performed. Next to each input terminal there is a LED that
signals its status.
The connection to the power supply is very easy: just insert the plug in a
power outlet.
Table 1: List of small parts for a SL1K Q.ty
Bent pins 2 pcs
M8 nuts 4 pcs
M8 self-tapping nuts 2 pcs
Ø10mm flat washers 2 pcs
6x14mm dowels 4 pcs
8x20mm dowels 4 pcs
2.3.1 SL1K Electromechanical Gearmotor
Figure 3
Figure 2
A
B
C
D
E
G
F
H
A
B
C
