3.0 Hardware Features
3.1.1 Mechanical Drawings
The pX2 OEM Modules have an extremely small form factor as seen below.

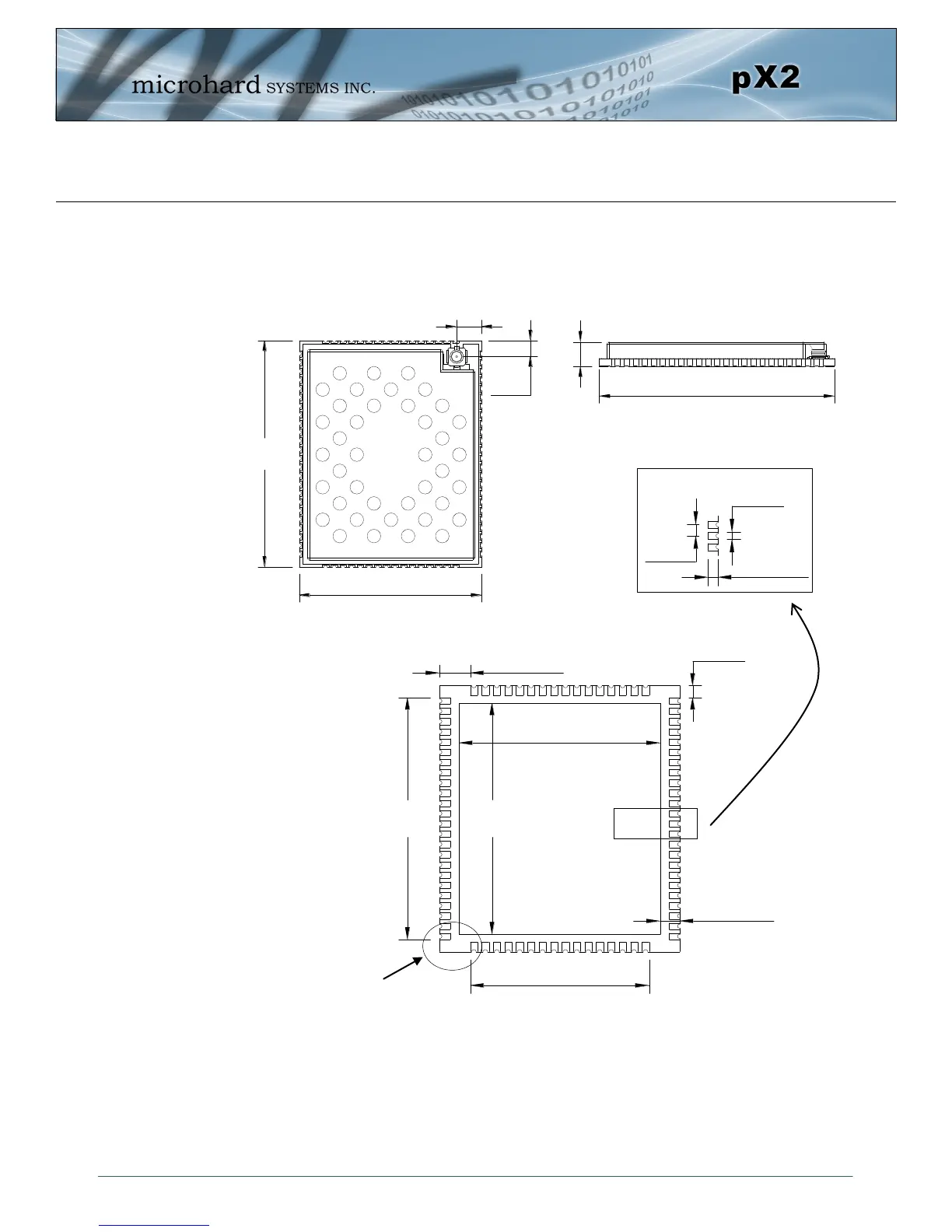

Drawing 3-1: pX2 OEM Mechanical
Units: millimeters
33
26.5
3.68
2.31
33
3.5
1. Ground plane must be connected to GND for required heat dissi-
pation.
2. Due to manufacturing methods additional PCB material may be
present on the corners that cannot be removed. Designs should
allow for a small tolerance of this additional material, ± 0.25mm
Detail
(A)
(2)
(2)
(2)
0.80
1.27
1.18
Bottom View
Ground Plane
(1)
Detail
(A)
22.35
28.70
30.01
2.16
19.85
1.50
3.41
See Notes
(2)
