Microhard Systems pX2 - Recommended Solder Mask (Pad Landing)

© Microhard Systems Inc. 23
3.0 Hardware Features
1.27
0.81
1.83
3.1.2 Recommended Solder Mask (Pad Landing)

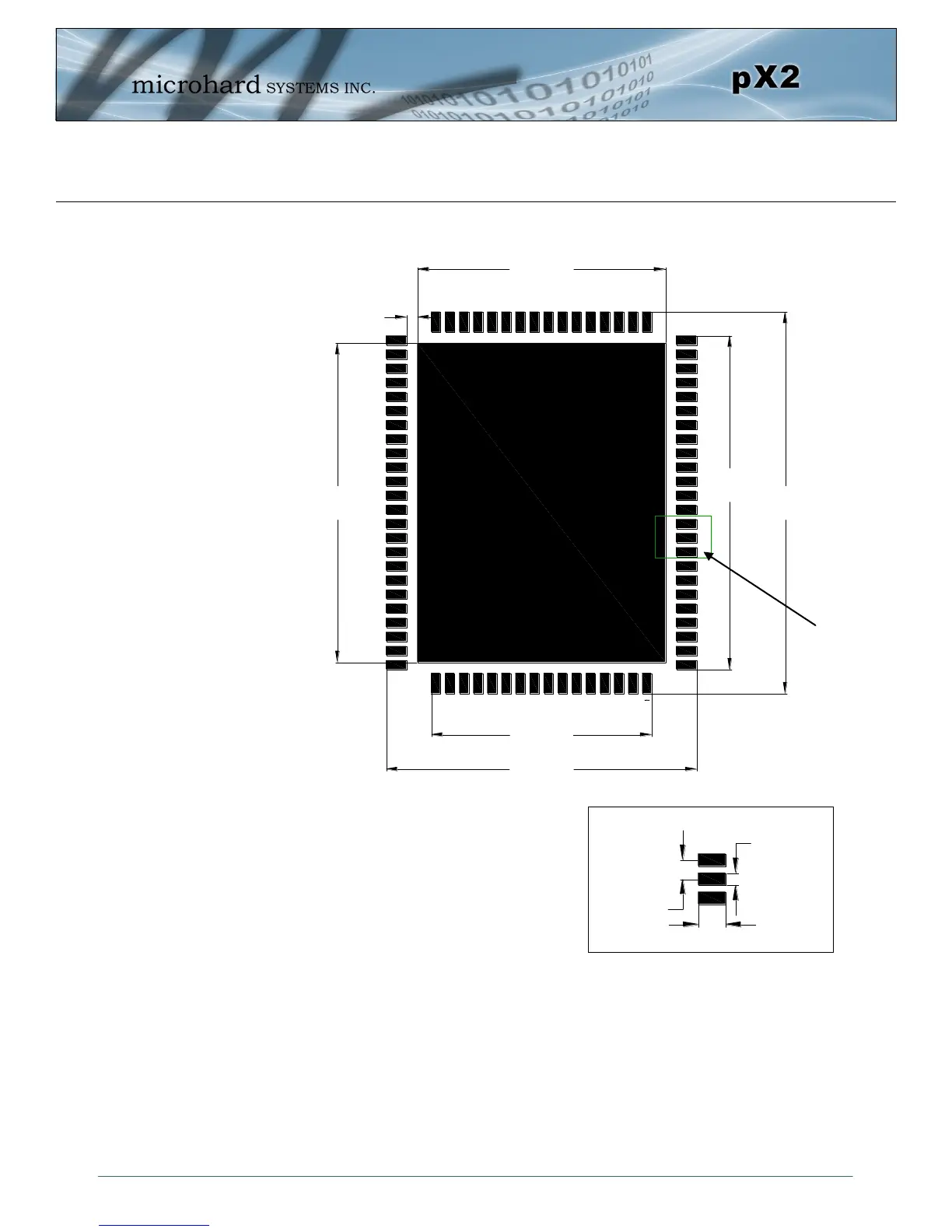

Drawing 3-2: pX2 Recommended Solder Mask
Units: millimeters
Detail
(B)
22.35
30.02
0.99
19.86
28.70
27.99
34.34
Detail
(B)
