3.0 Hardware Features
3.2 pX2 Development Board
The pX2 Development board provides a platform in which to test and evaluate the operation of the pX2
without the need to design a custom interface PCB right from the start. The pX2 includes a socket to insert
the pX2 and provides standard interfaces/indicators for:
- Ethernet
- RS232 Serial Port
- USB Port (Not currently supported)
- Power (9-30 VDC)
- CPU Status LED
- Tx/Rx LED’s
- RSSI (x3) LED’s
- Config Button (Reset/Recovery Operations)
- Vpa (3/5V) Jumper Block

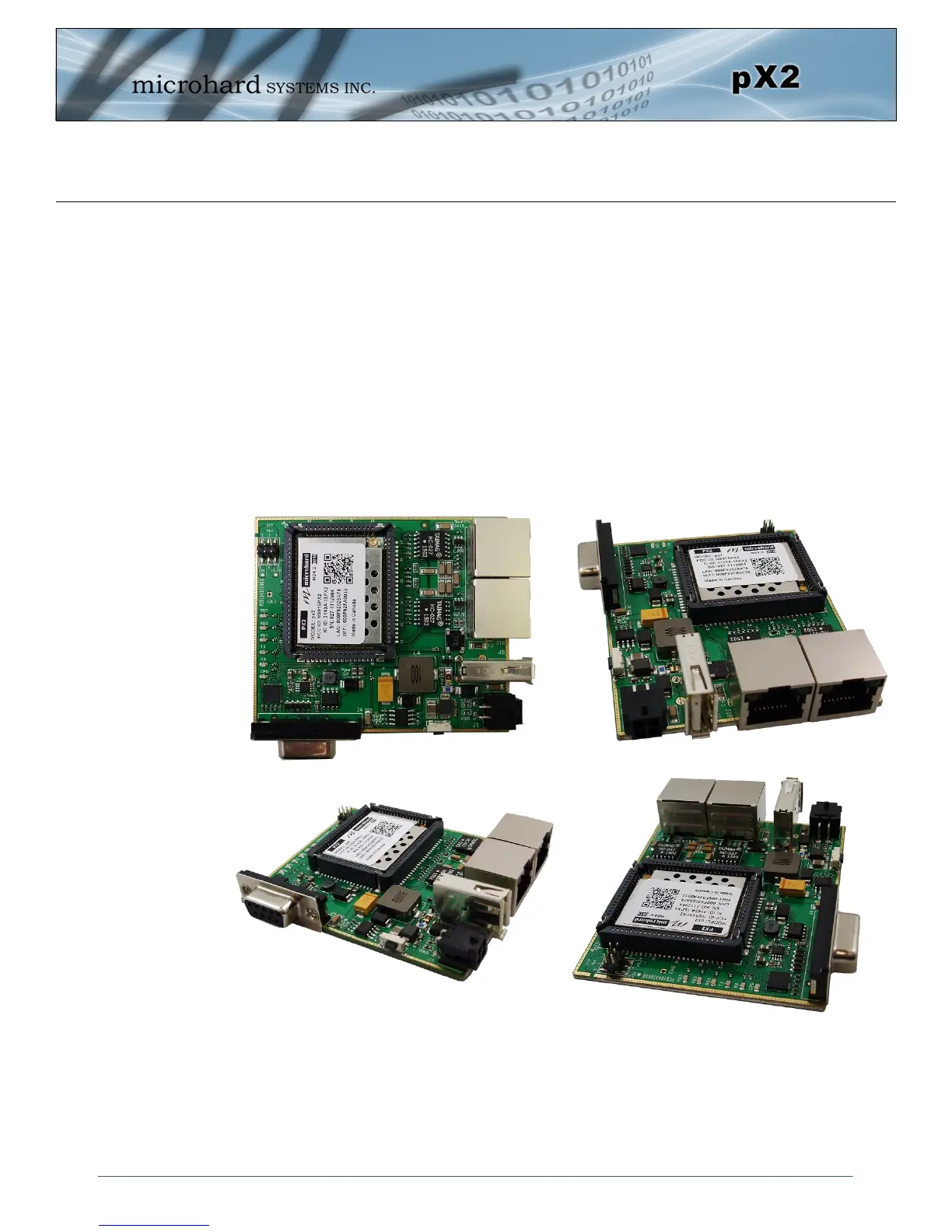

Image 3-3: pX2 Development Board
