SediGraph III 5120 Installation Connecting Cables

Mar 2010 43

Connecting Cables

1. Position the MasterTech next to the SediGraph, making sure that the units are level and

their bases are at the same height.

2. Alternatively, the MasterTech may be placed on top of the SediGraph.

3. Make sure that the power switches on the SediGraph and MasterTech are in the OFF

position.

4. Insert one end of the serial cable into the MasterTech connector on the side panel of the

SediGraph.

5. Insert the other end of the cable into the connector labeled RS232 on the back of the

MasterTech.

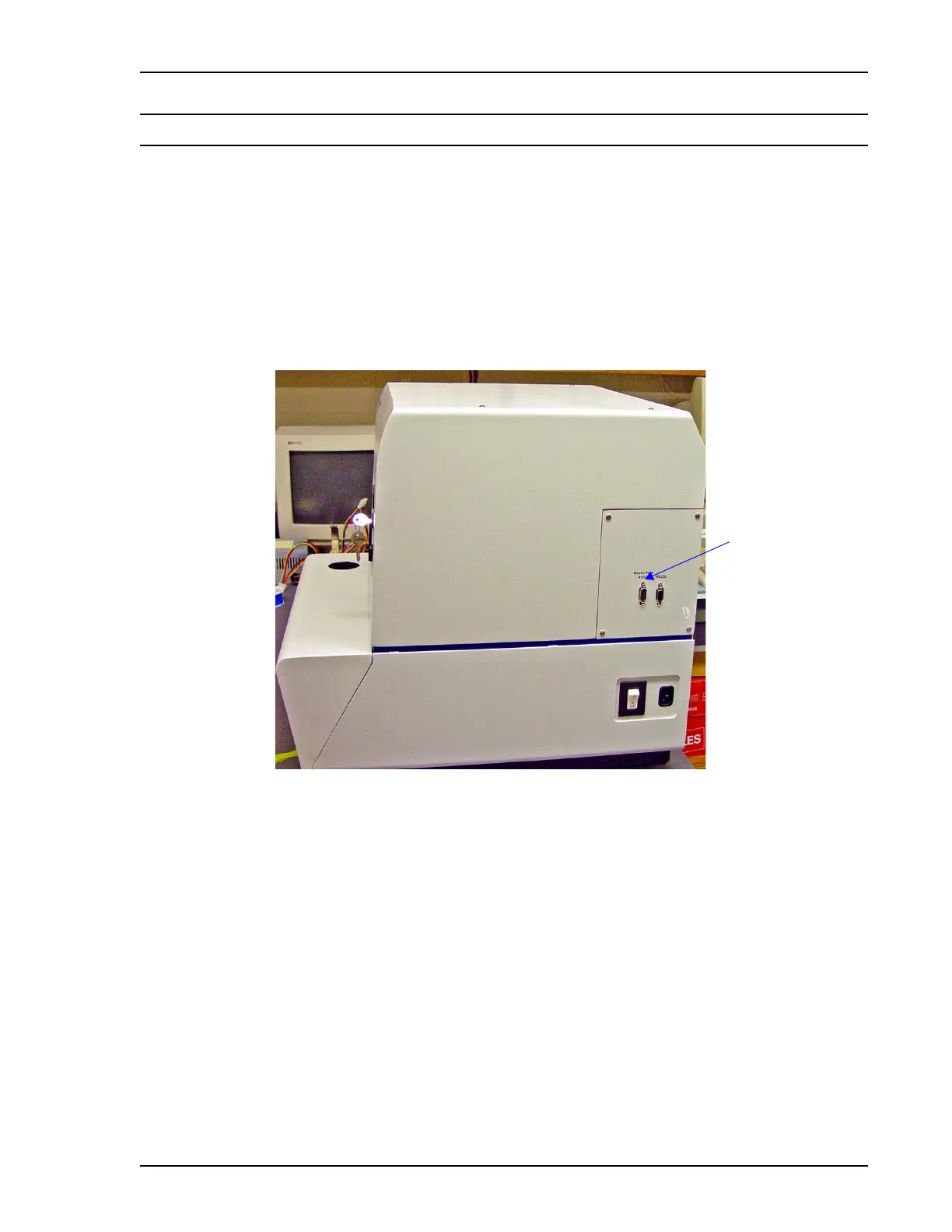

MasterTech

Connector
