3.2.2 Main Web Page - Unit Status

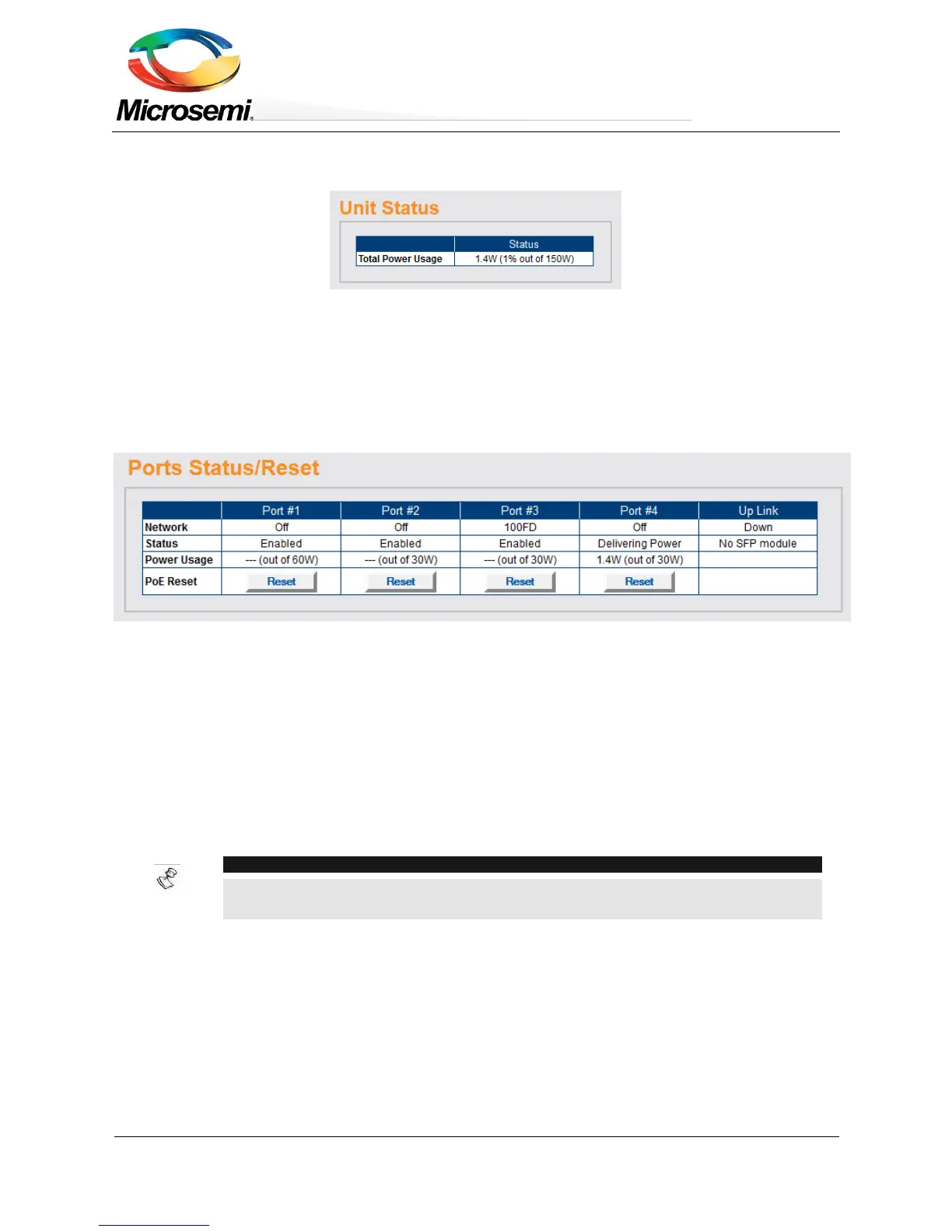

Figure 3-3: Unit Status
Unit status reports the aggregated power consumed by all PoE ports and the percentage of the consumed
power relative to unit internal Power Supply power capabilities.
3.2.3 Main Web Page – Ports Status/Reset
Figure 3-4: Ports Status/Reset
 Network - reports for each port Ethernet link speed (10/100/1000MB) and if the Network connection is
up or down
 Status – reports for each port the PoE port status as enabled, disabled, delivering-power, etc.
 Power Usage - reports for each port its actual power consumption and the maximum power it can
deliver.
 PoE Reset - Pressing the Power Reset button turns off the PoE port power for a few seconds and then
restores the PoE power back.
NOTE:
PoE port which was disabled by Telnet/SSH/SNMP will become enabled whenever PoE
Reset button is pressed.
