Microsemi PDS-104G - Private Mib

PDS-104G PoE Switch
Power Over Ethernet PowerView Pro User Guide
Copyright © 2016 Microsemi Page 34 of 48
Rev. 1.0 CPG – PoE BU
One Enterprise Aliso Viejo, CA 92656 USA

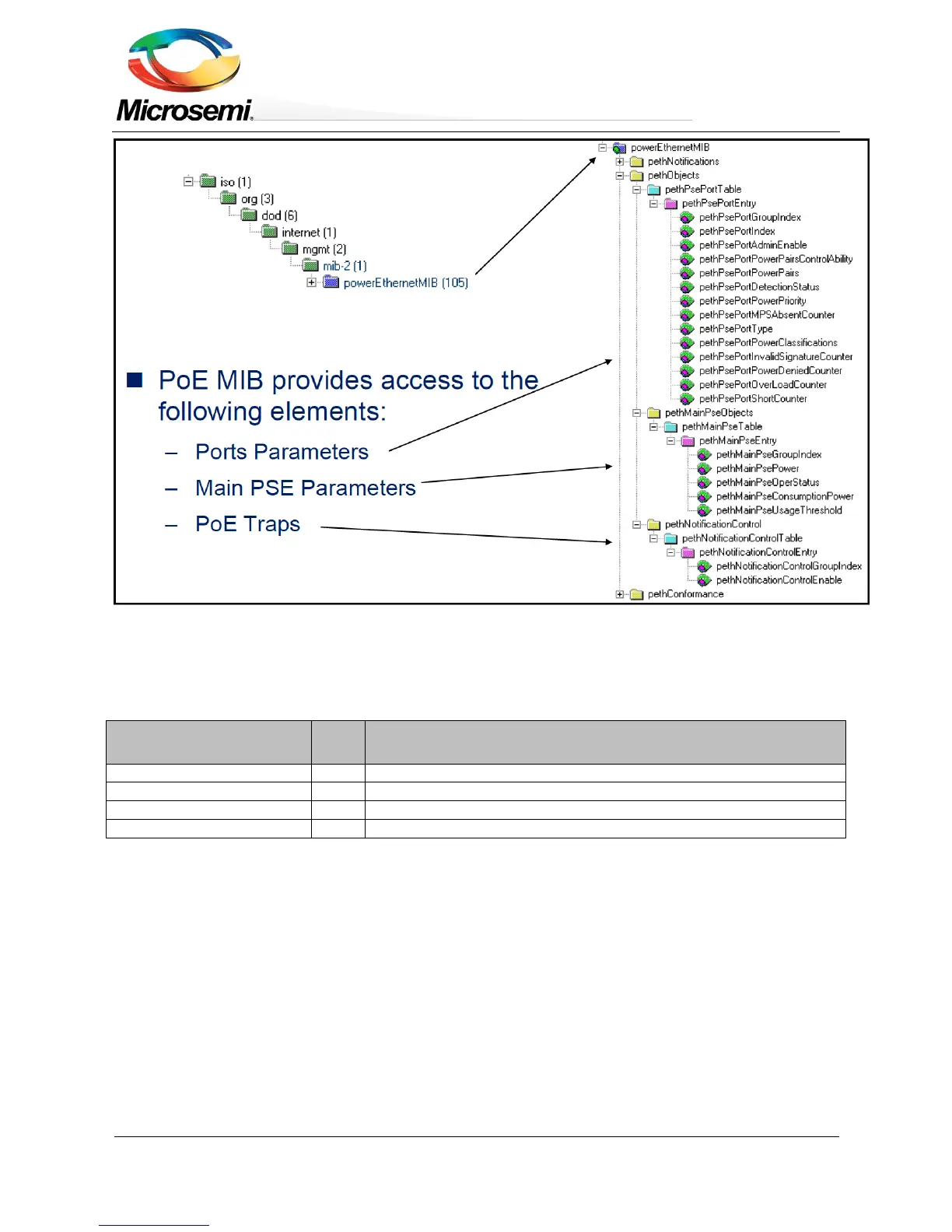

Figure 5-4: MIB Tree Structure
5.4 Private MIB
The following SNMP OiDs are supported by the SNMP private MIB
OiD Name
Type
(R/W)
Description
poePortConsumptionPower
R
PoE port power consumption [Watt]
poePortMaxPower
R
PoE port maximum available power [Watt]
poePortType
R
PoE port type – Two Pair, 30 [Watt], Four Pair, 60 [Watt]
mainVoltage
R
Unit Power Supply voltage [Volt]
