Network MIB's: Various Network MIB's as RFC1213 MIB-II, etc. to be used for providing various
Network statistics. Please note that those MIB's are not intended to be used for Network configuration
over SNMP.
RFC3621: Power Over Ethernet (PoE) MIB which provides various PoE management capabilities (see
Figure 5-4)
Private MIB: Enhance PoE functionality beyond RFC3621 PoE MIB.

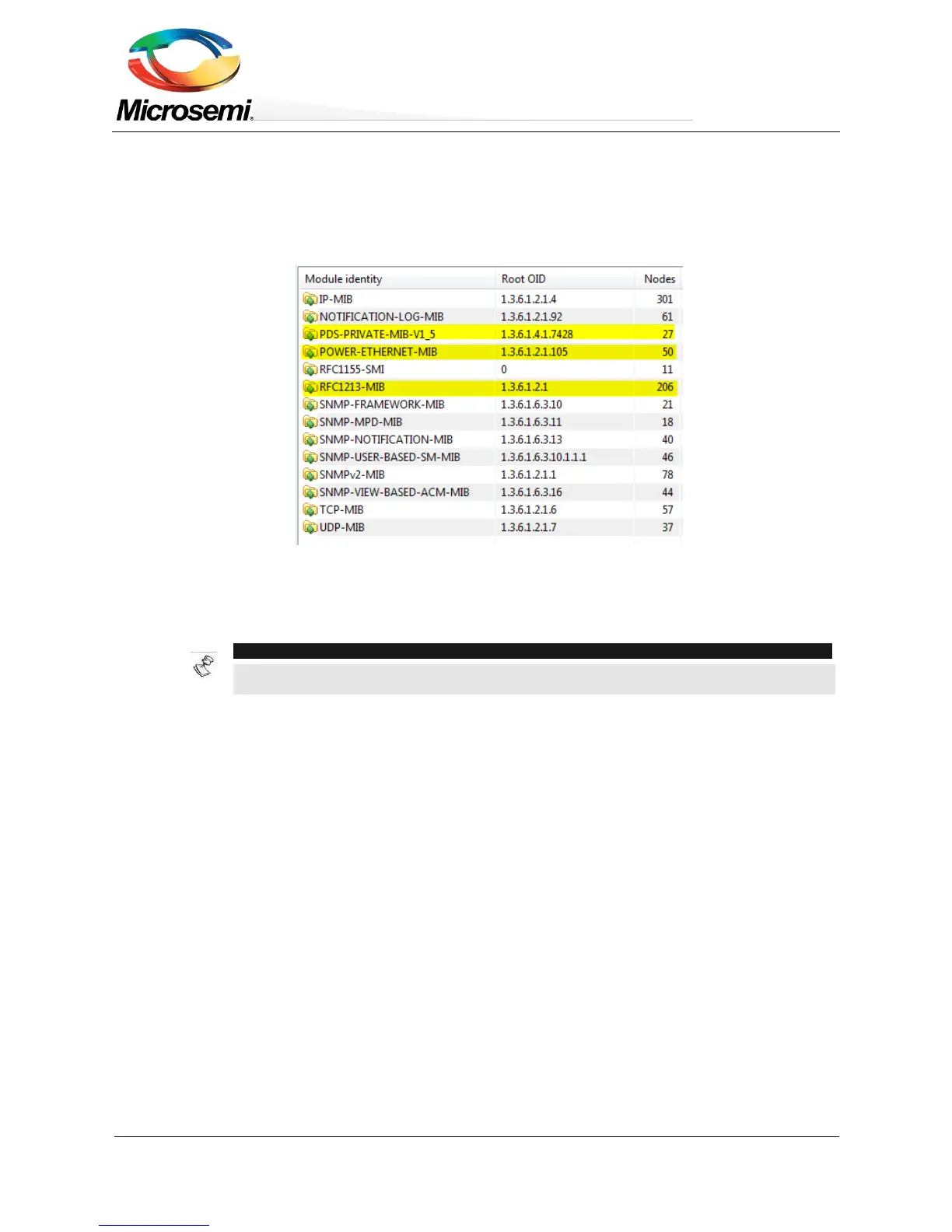

Figure 5-3: Unit supported SNMP MIB's
5.3 RFC3621 PoE MIB
NOTE:
For a detailed PoE MIB description, please refer to Microsemi’s Technical Note – 132, which
describes in detail PoE MIB functionality.
RFC3621 PoE MIB is located under 1.3.6.1.2.1.105 SNMP MIB tree. The MIB is divided into three sections (see
Figure 5-4). The first section deals with PoE ports and provides functionality such as enable/disable, read port
status, class, etc. Each OiD is accessed as a two-dimensional array table.
The second section deals with the power source that is responsible for providing power to a group of PoE ports.
It enables reading total power consumption, power supply status, etc.
The third section enables/disables PoE traps to be sent to remote SNMP managers.
