PDS-104G PoE Switch
Power Over Ethernet PowerView Pro User Guide
Copyright © 2016 Microsemi Page 23 of 48
Rev. 1.0 CPG – PoE BU
One Enterprise Aliso Viejo, CA 92656 USA

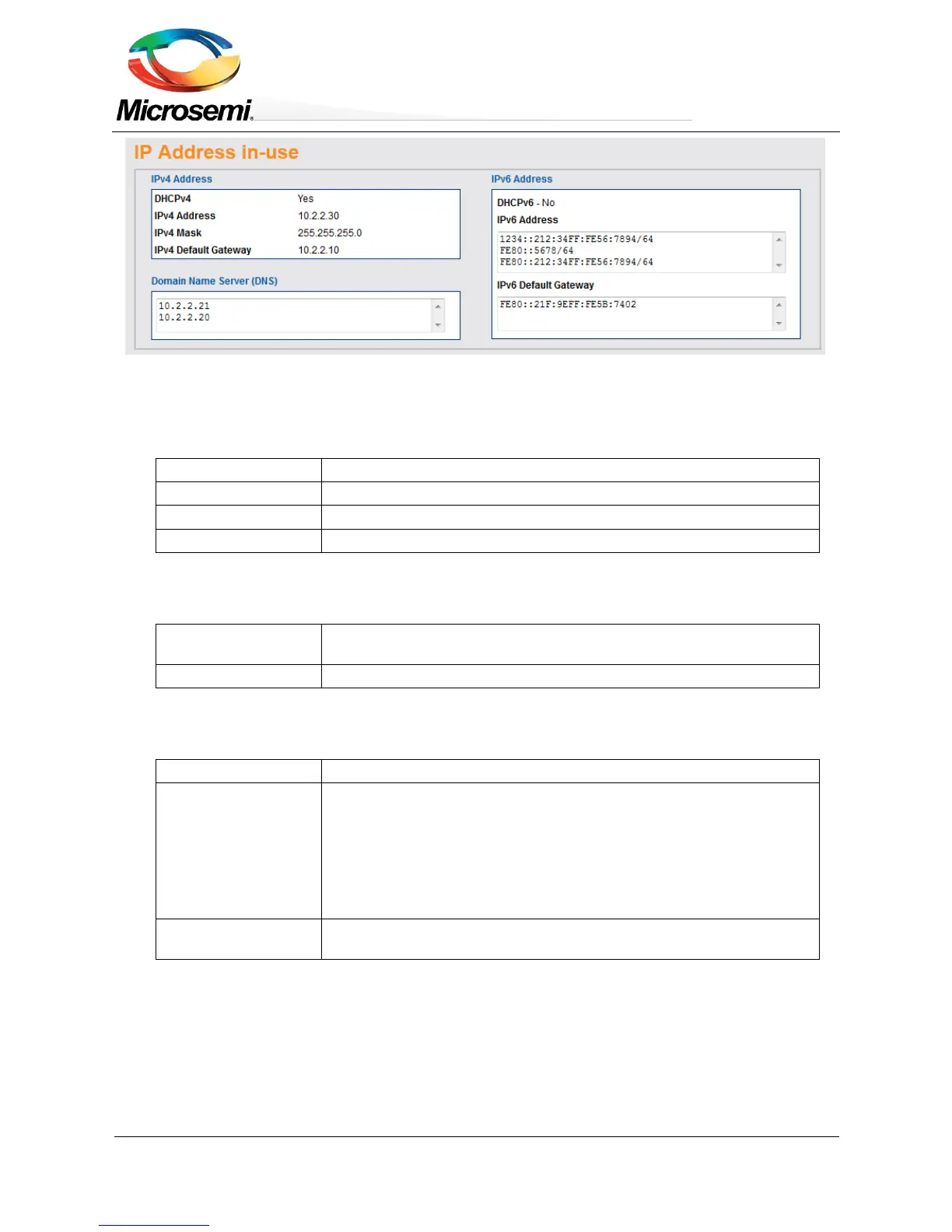

Figure 3-17: IP Address In-Use
3.5.1.1 Information Web Page – In use IPv4 Address
DHCPv4
Yes/No – was the IP address obtained by DHCPv4, or is a static IP.
IPv4 Address
The actual in-use IPv4 address (for example 172.5.6.89).
IPv4 Mask
The actual in-use IPv4 address mask (for example (255.255.255.0).
IPv4 Default Gateway
The actual in-use IPv4 default gateway (for example 172.5.6.1).
3.5.1.2 Information Web Page – In-Use DNS
DNS #1
First in-use Domain Name Server (IPv4 / IPv6) responsible for converting
URL names such as my-computer.com to IPv4/IPv6 addresses.
DNS #2
Alternate in-use second DNS to be used in case the first DNS is down.
3.5.1.3 Information Web Page – In-Use IPv6 Address
DHCPv6
Yes/No – was the IPv6 address obtained by DHCPv6, or is it a static IP.
IPv6 Address + Prefix
The actual in-use IPv6 address. While IPv4 has only a single address,
IPv6 may have two or more IPv6 addresses:
 Local Link IPv6 address. For example:
FE80::A8AB:ACFF:FE6E:57DD
 Stateless address auto configuration based on Router advertisement
report message
 Static IPv6/DHCPv6 address.
IPv6 Default Gateway
IPv6 address of the Default Gateway, or static IPv6 default gateway
configuration.
3.5.2 Information Web Page – Product Information
The product information section lists the unit MAC address, software version, PoE firmware, serial number, etc.
