Microtest 6363 User Manual

10
2.6 Test Voltage and Resolution
Test Voltage (Volt)
Resolution
0.001V≦ Volt ≦ 2.000mV
1mV
2.7 Measurement Type
 Serial Inductance (Ls) Parallel Inductance (Lp)
 Serial Capacitance (Cs) Parallel Capacitance (Cp)
 Serial Resistance (Rs) Parallel Resistance (Rp)
 Reactance (X) Susceptance (B)(=1/X)
 Impedance (Z) Admittance (Y)(=1/Z)
 Dissipation Factor (D) Quality Factor (Q)(=1/D)
 Phase Angle (θ)
 Conductance (G)
 Direct Current Resistance (Rdc)

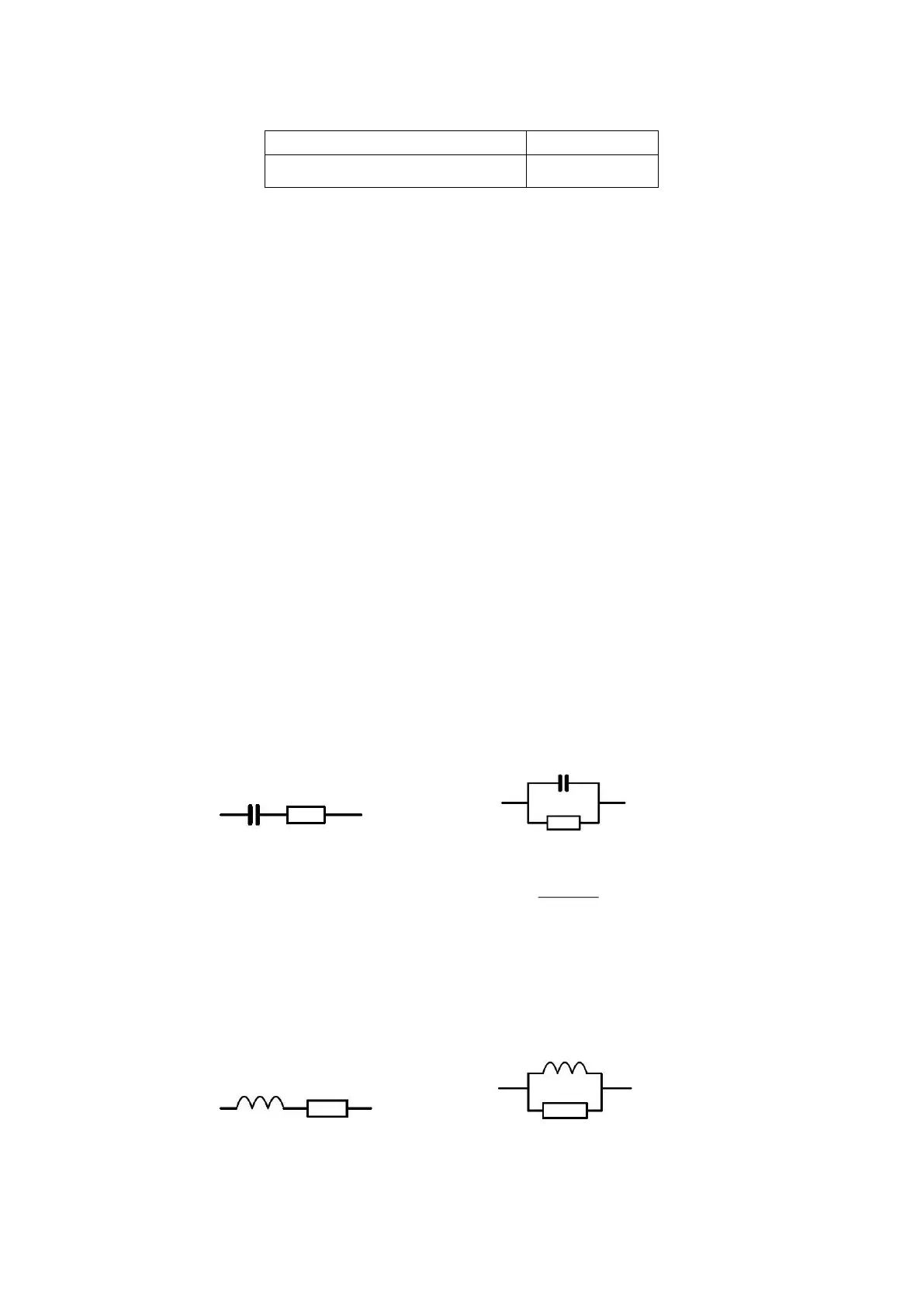

2.8 Introduction to Basic Measurement Functions
 Serial and Parallel Modes:
Serial and parallel circuit models can be used to measure AC resistance, capacitance, inductance,
reactance, and susceptance.
 C: Capacitance
Serial Mode: Parallel Mode:
Serial Mode Related Formula: Parallel Mode Related Formula:
)1(
2
DCC
ps

)1(
2
D
C
C
s
p


D = dissipation factor D = dissipation factor
 L: Inductance
Serial Mode: Parallel Mode:
Serial Mode Related Formula: Parallel Mode Related Formula:

Microtest 6363 Specifications

General

Brand	Microtest
Model	6363
Category	Measuring Instruments
Language	English
