Microtest 6363 User Manual

33
3.4 Multi-Step Mode
Press the Menu control key to display the main menu on the screen. Press MULTI to enter
(Multi-Step Mode).

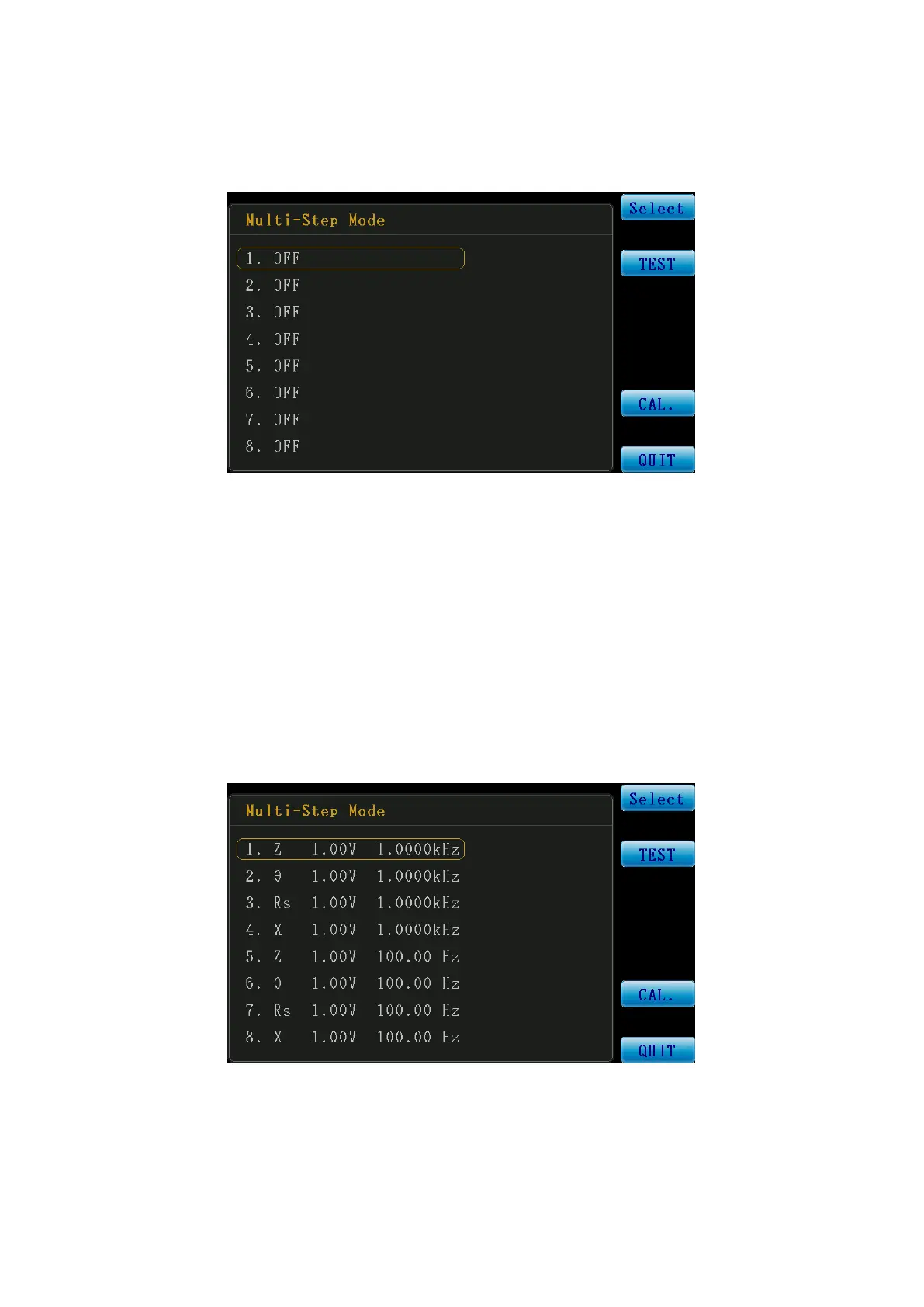

Figure 3-4-1 Multi-Step Mode Screen
The above figure is the multi-step list briefly showing the test configuration of each group.
 Multi-Step Mode List:
 1-8: Eight groups of multi-step setting. The user can use the up and down direction keys
to move to the desired edit item.
 Select: Click to enter the yellow frame item and conduct test item edit.
 TEST: Enter Multi-Step Test Mode.
 CAL.: Run open/short circuit calibration of multi-step function.
 QUIT: Exit multi-step mode and return to the main menu.
The following figure shows the screen with the established test item:
Figure 3-4-2 Screen With the Established Test Item
