28
(medium speed)/SLOW (slow).
Measurement Time (not including display update):
MAX: 5mS
FAST: 25mS
MED: 100mS
SLOW: 250mS
Range: Measure gear position; available options include: AUTO (automatic)/HOLD (hold
current gear position)/1 (gear 1)/2 (gear 2)/3 (gear 3).
AVG: Average number of times; the setting range is between 1-64.
ITEM: (Measurement Parameter Settings)

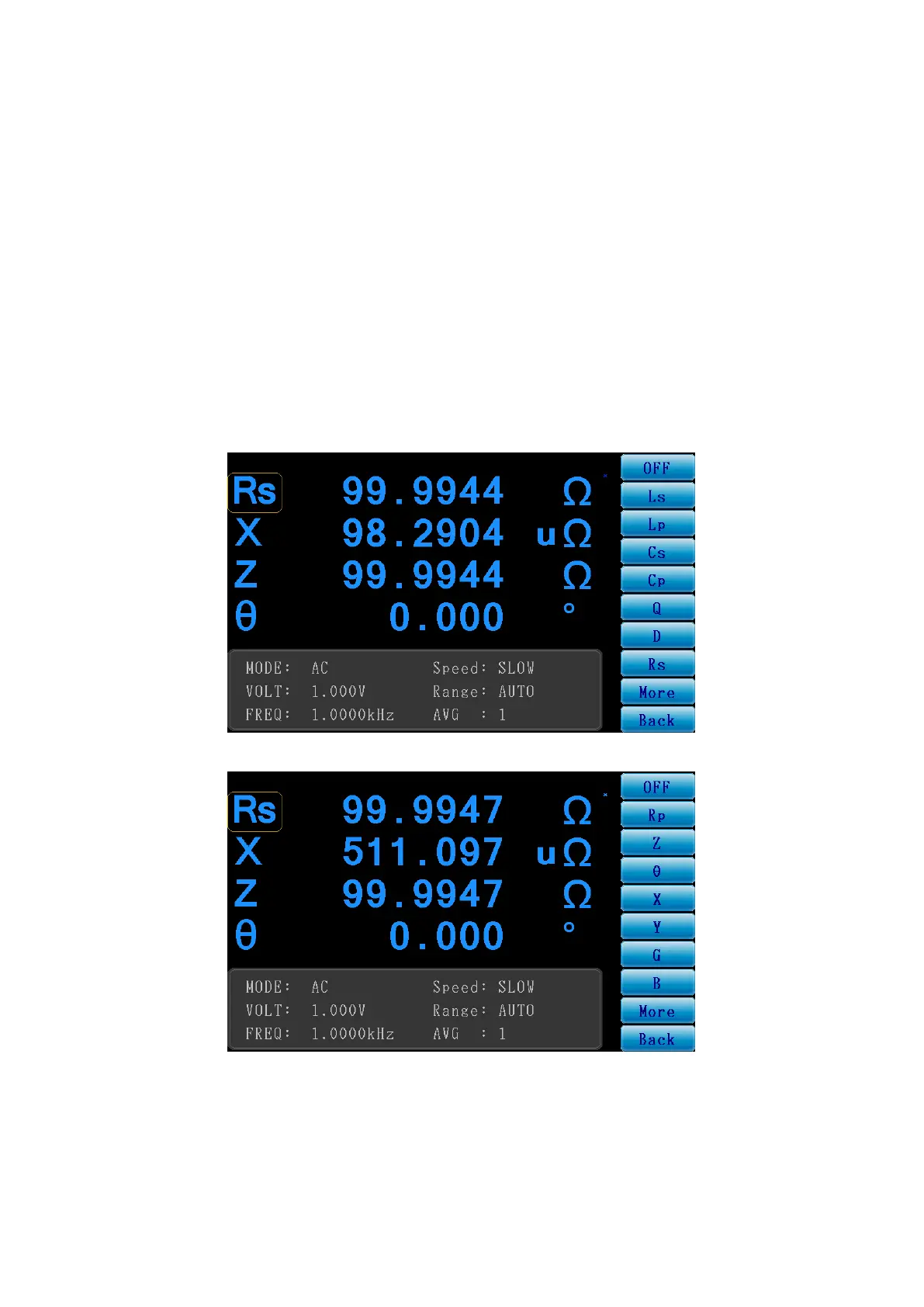

Figure 3-3-3 Parameter Selection Screen-1
Figure 3-3-4 Parameter Selection Screen-2
Up, Down Direction Keys: Used to move the yellow frame; used to select the test
parameter item to change.
Left, Right Direction Keys: Used to change the measurement parameter selected with the
To Next Page
