RLC
Operation Procedure

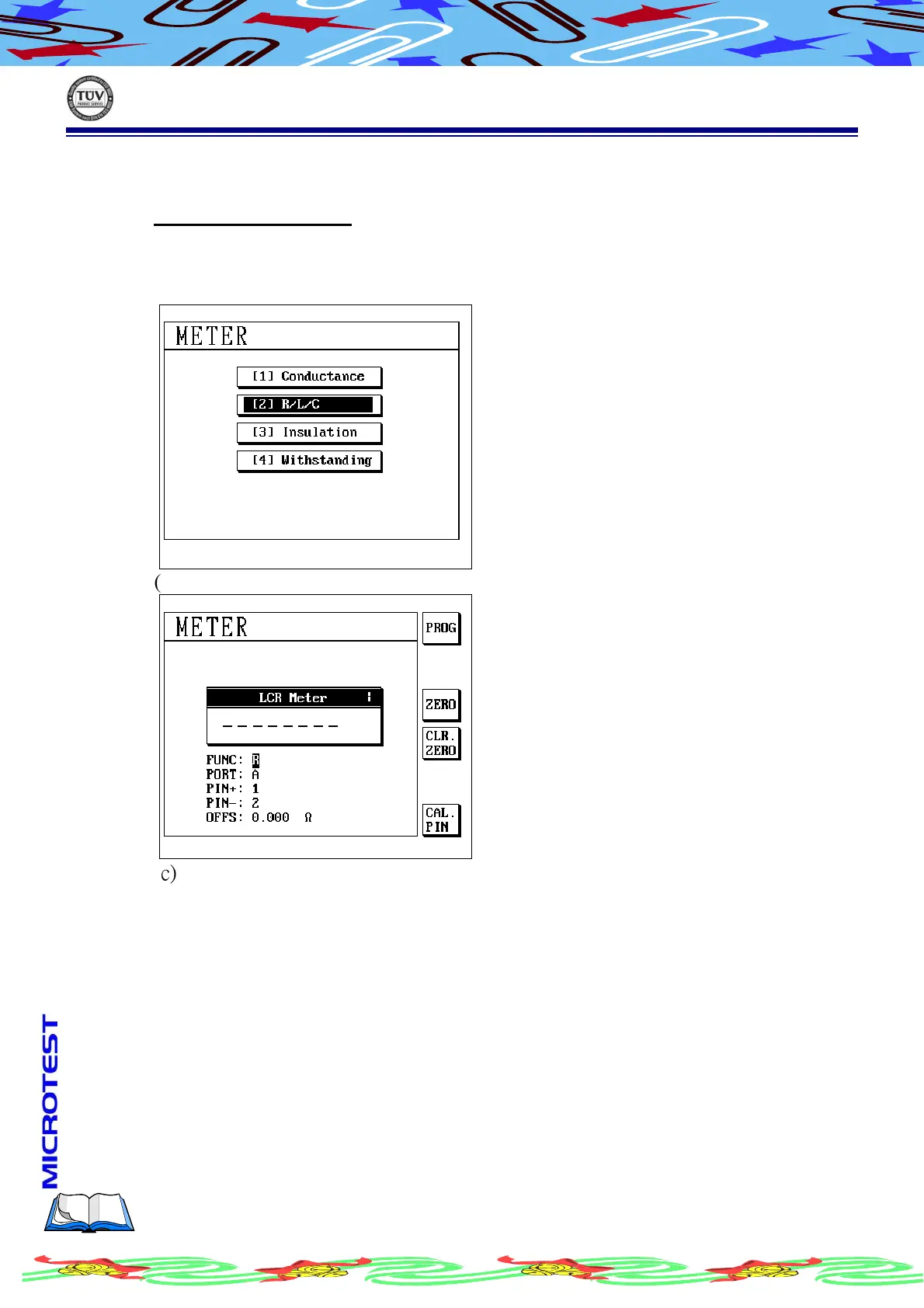

(a) The operation is the same with conductance, in the subordinate menu of
Meter Mode, using [↑] or [↓] to select (2) RLC item, LCD display as
following.
(b) Press [Enter] LCD display as following
(c) Press S1 [PROG] to shift FUNC:L/C/R/D 2.PORT:A/B/C 3.PIN±
(d) Press S3 [ZERO] meter offset (trimming)
Offest (trimming): the purpose of offset (trimming) is to eliminate the
effects of stray capacitance or series impedance in the connecting leads or
fixture.
(e) Press S4 [CLR.ZERO] clear the offest value
(f) Press S6 [CAL.PIN] to run the Calibration function
(g) After executed, press [Exit] to return to meter select menu
To Next Page
