(f) Prsee S1[UP] or S2[DOWN] to adjust code
(g) After Setup finished, press S5 [DONE] to save or S6 [QUIT] to exit
without saving the setup
II.1.D.b
II.1.D.b II.1.D.b

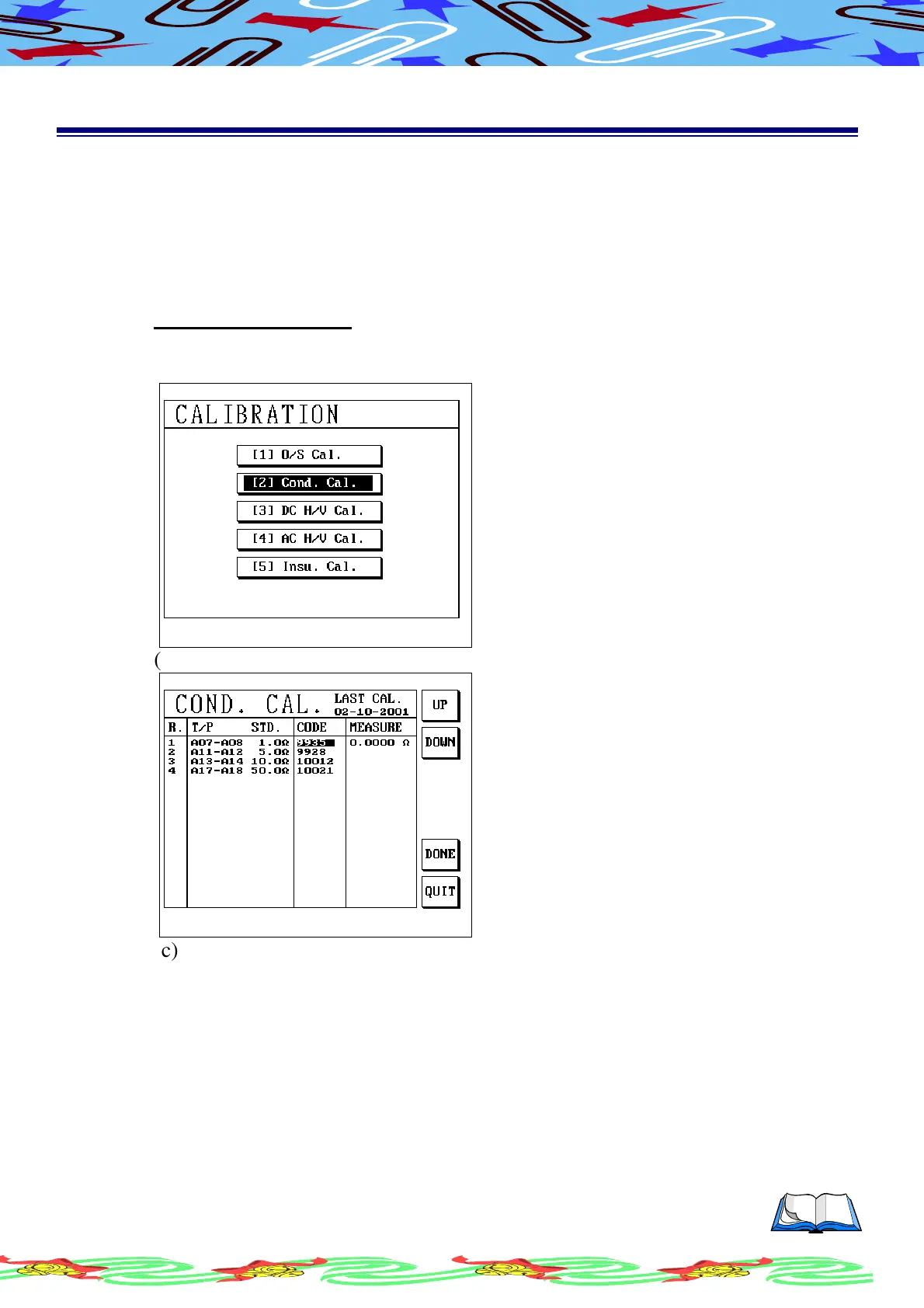

II.1.D.b Conductance Calibration
 Operation Procedure
(a) Opoeration the same O/S Cal. In the subordinate menu of calibration mode,
using [↑] or [↓] to select (2)Cond. Cal. Item, LCD display as following
(b) Press [Enter], LCD display as following
(c) Press S1[UP] or S2[DONT] to adjust code
(d) After setup finished, press S5 [DONE]
(e) If you want to abandon data, press S6[QUIT] to exit this screen
