II.4.C O/S End Detection
When run into the Open/Short whether to detect pins or not. If setup is NO that
speed would be faster, but do not detect the O/S end.
Press S1[PROG] to change setup to be YES／NO
II.4.D
II.4.D II.4.D
II.4.D Int. S/O Stop Mode
Press S1[PROG] to change setup to be AUTO／TIMER
 AUTO：The system is repeatedly testing until the DUT cables completely
take off then stop automatically.
 TIMER：To follow the test time doing test
II.4.E
II.4.E II.4.E
II.4.E Int. O/S Timer
Use alphanumeric to key in Int. O/S timer, but if mode setup is AUTO and this
setting will not work
II.5
II.5 II.5
II.5 Statistic Report
You can view the statistics report by just press [Stat] key. The report includes
total test amounts, pass/fail amount and fail analysis in quantity/percentage.
 Operation Procedure

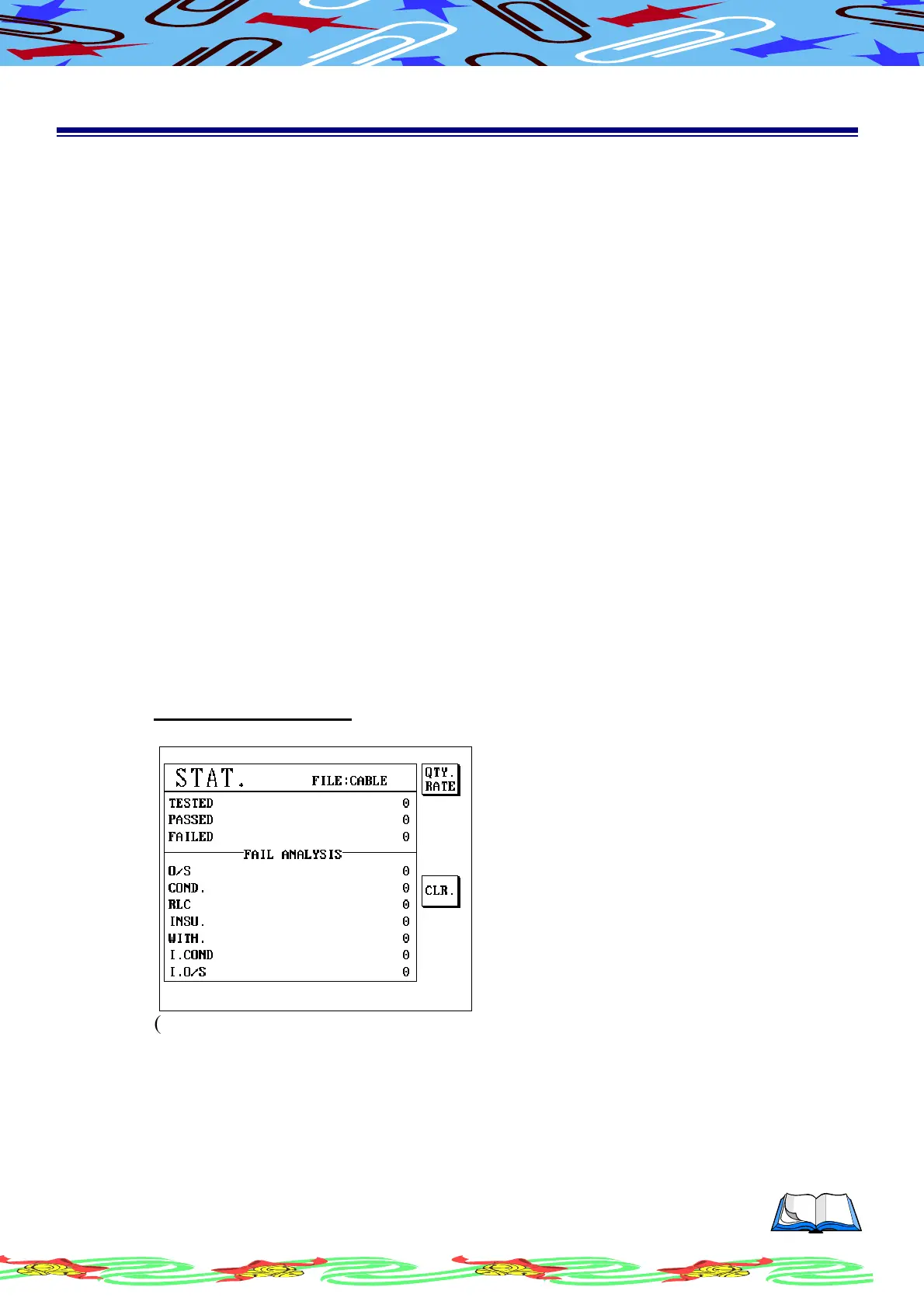

(a) Press [Stat], LCD display as following
(b) Press S1[QTY.RATE] to display in percentage mode
