Classic Manual Rev L
9 | P a g e 1 0 - 0 0 1 - 1 R E V L
Table 2
Table 3

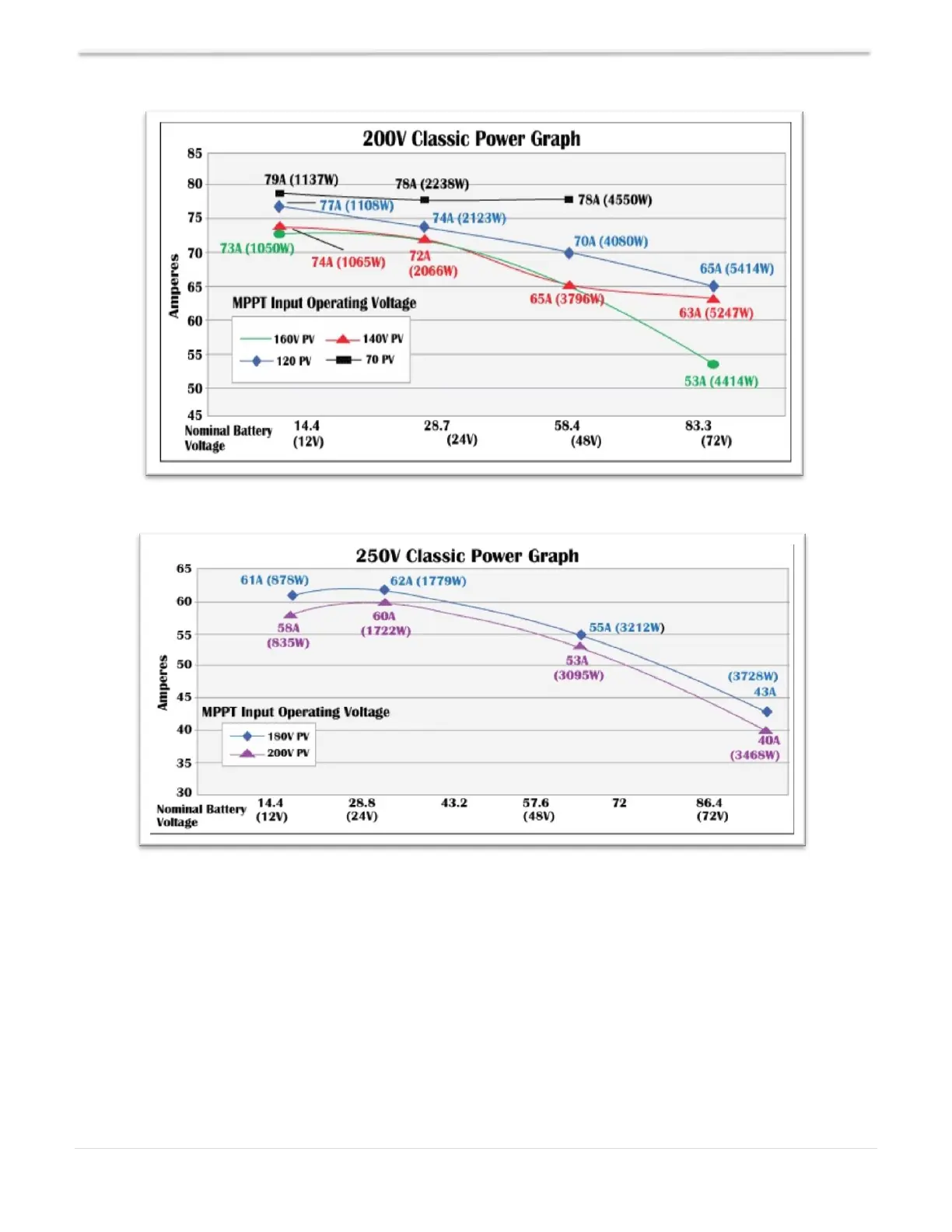

Tables 1 through 3 above represent the max power output for a given input for each Classic. Using
and understanding these power graphs will help maximize the Classic’s output power and aid in
selecting wire and breaker/disconnects. Notice that lower battery voltages and lower PV input
voltages result in higher continuous output power. The PV voltages listed are for reference and are
not intended to be the only PV voltages supported. The battery voltages listed show common
battery bank configurations. Other voltages are also supported. The Classic battery voltage
parameters are fully user-adjustable.
Example: If you are using a Classic 250 and 48V battery bank, the maximum continuous output
power based on 25° C ambient is 55A when using a PV array that yields a maximum power voltage
To Next Page
