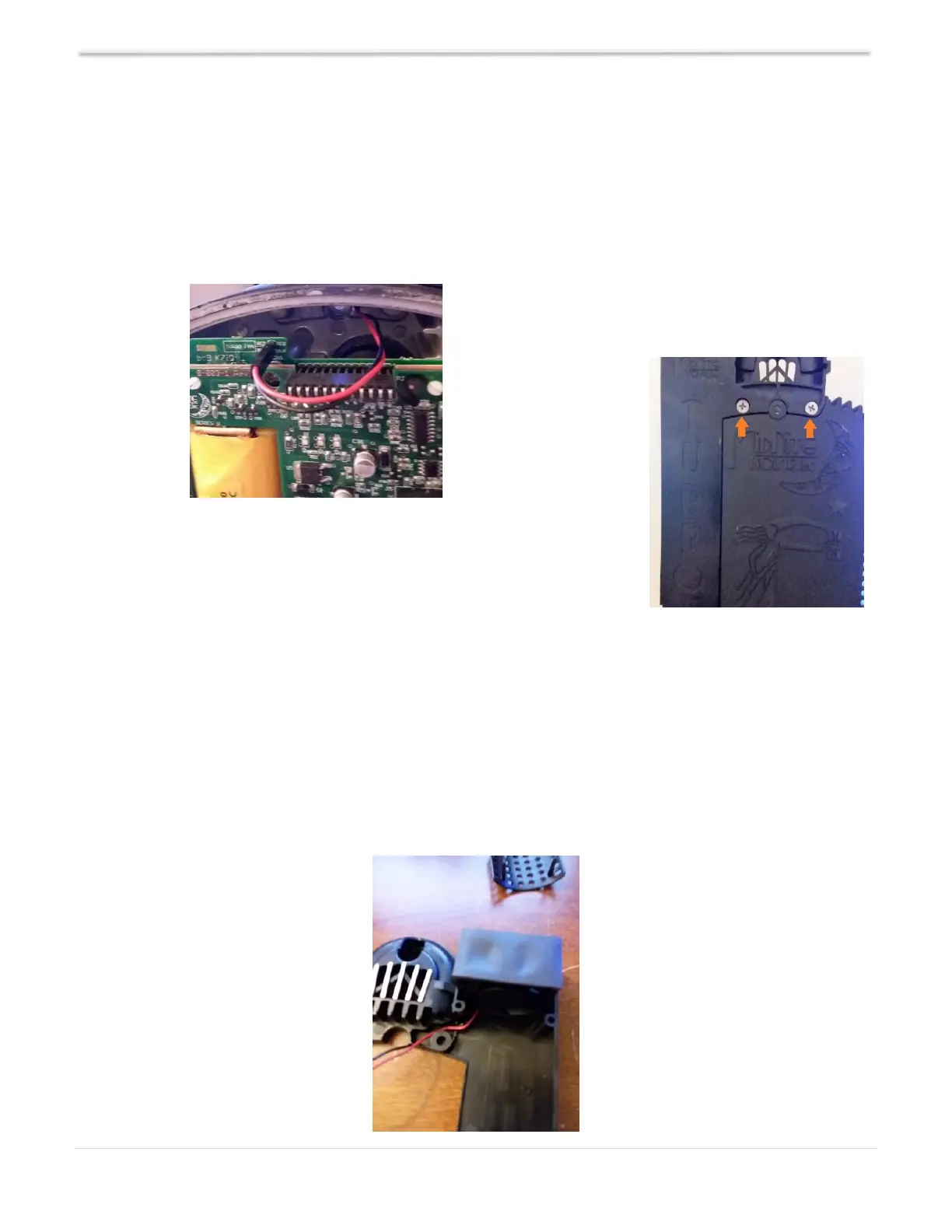

New Turbo Fan Assembly
Removal
Step 1: Remove front cover to the Classic.
Step 2: Remove turbo fan wire harness from power board.
Step 3: Turn Classic over, remove two screws on the back of the
Classic that secures the fan assembly to the Classic’s chassis.
Step 4: Gently separate fan assembly from the Classic. Once the fan
assembly is off, it can be discarded.
Assembly
Step 1: Insert one matt on to the fan assembly base. The fan will be “sandwiched” between two
matts: one on the bottom of the fan, one on the top.
Step 2: Place the fan into the base with the wires coming out the lower left-hand corner.
