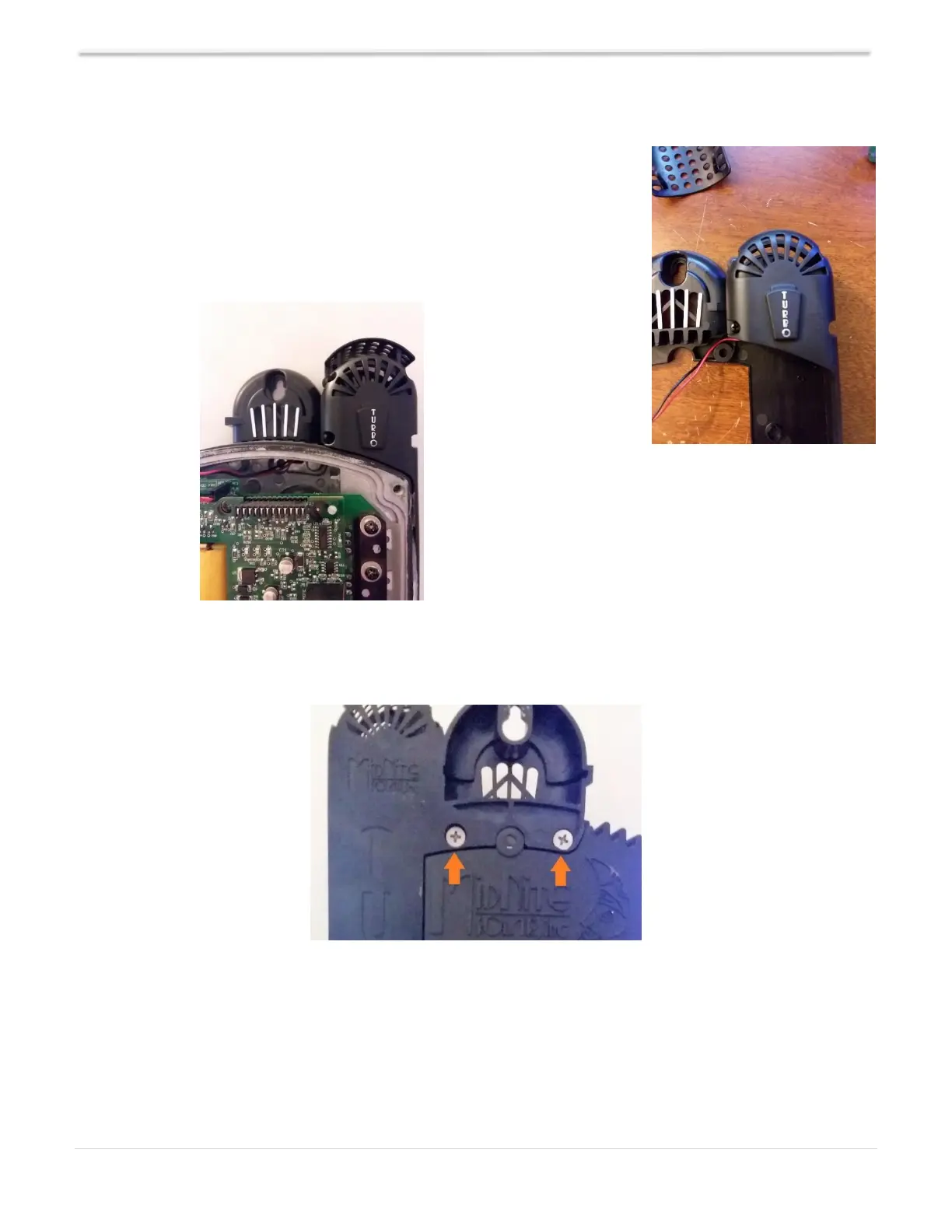

Step 3: Insert one matt on top of the fan.
Step 4: Place the fan assembly cover on top of the base and fan.
Step 5: Line up the four screws. Ensure the fan wires are not pinched
or crushed, and that they are routed as shown in the picture. Tighten
the screws.
Step 6: Pop the top vent into place.
Step 7: Use the screws to mount the base back on the Classic:
