Miele T300 - T 368 C (from Machine No. Prefix 11

Technical Information
T300 Series Clothes Dryer (Condenser)
5.3.2 T 368 C (from Machine no. Prefix 11/…)
b1 On/Off Switch k2 Capacitor for m3
b2 Level Switch k3 Suppressor
b3 Temp. Selector Switch m1/1 Timer Motor
b4 Temp. Regulator m1/2 Timer Motor - Reversing
b5 Temperature Limiter m2 Drum Drive Motor
b6 Temperature Limiter m3 Fan Motor
h0 Indicator Lamp m4 Condensate Pump
h1 Buzzer P Timer
h2 Level Indicator Lamp r1 Heater Bank
k1 Capacitor for m2 u1 Electronic Unit
u2 Residual Moisture Sensor

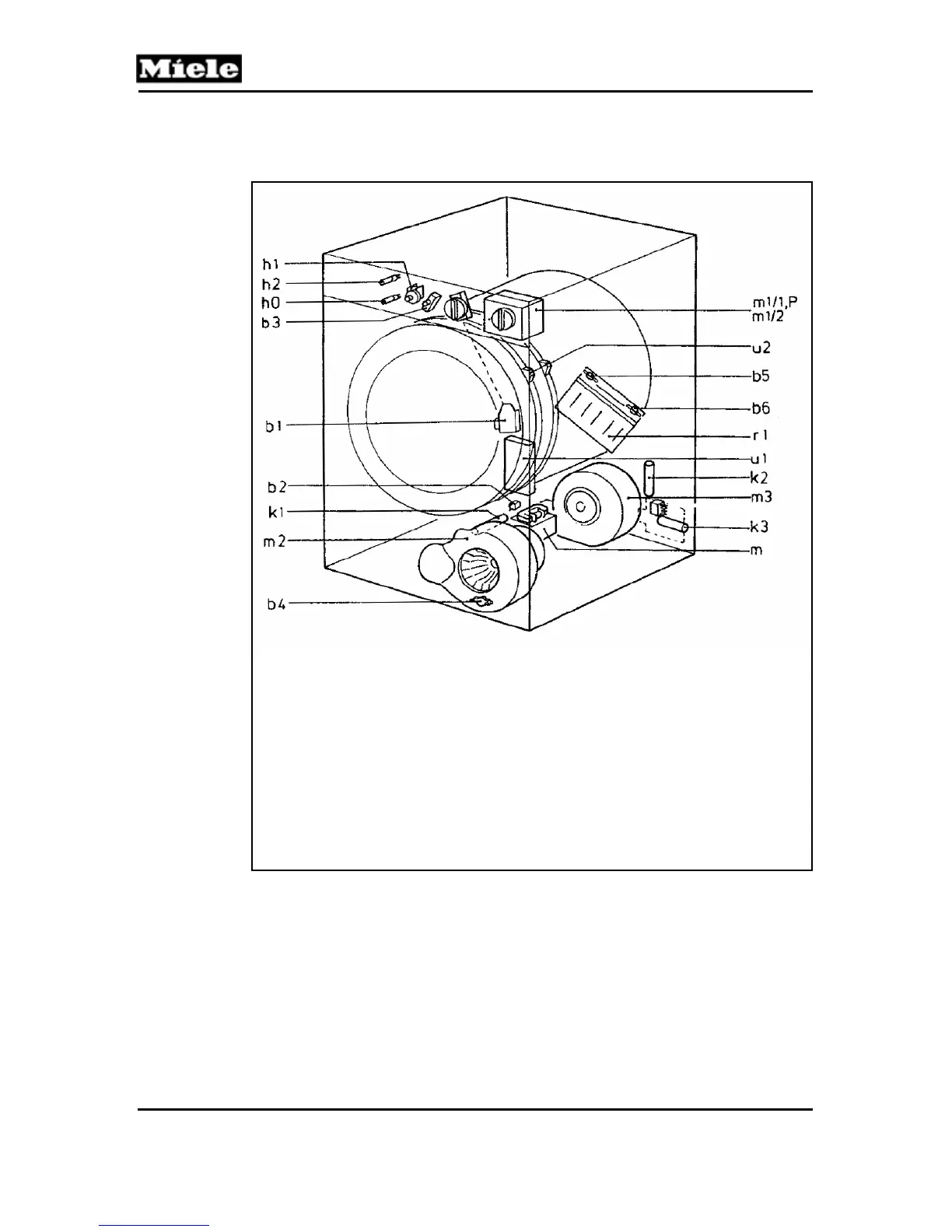

Figure 5-3: Electrical Components (T 368 C from Machine no. Prefix 11/…)
