T300 Series Clothes Dryer (Condenser)

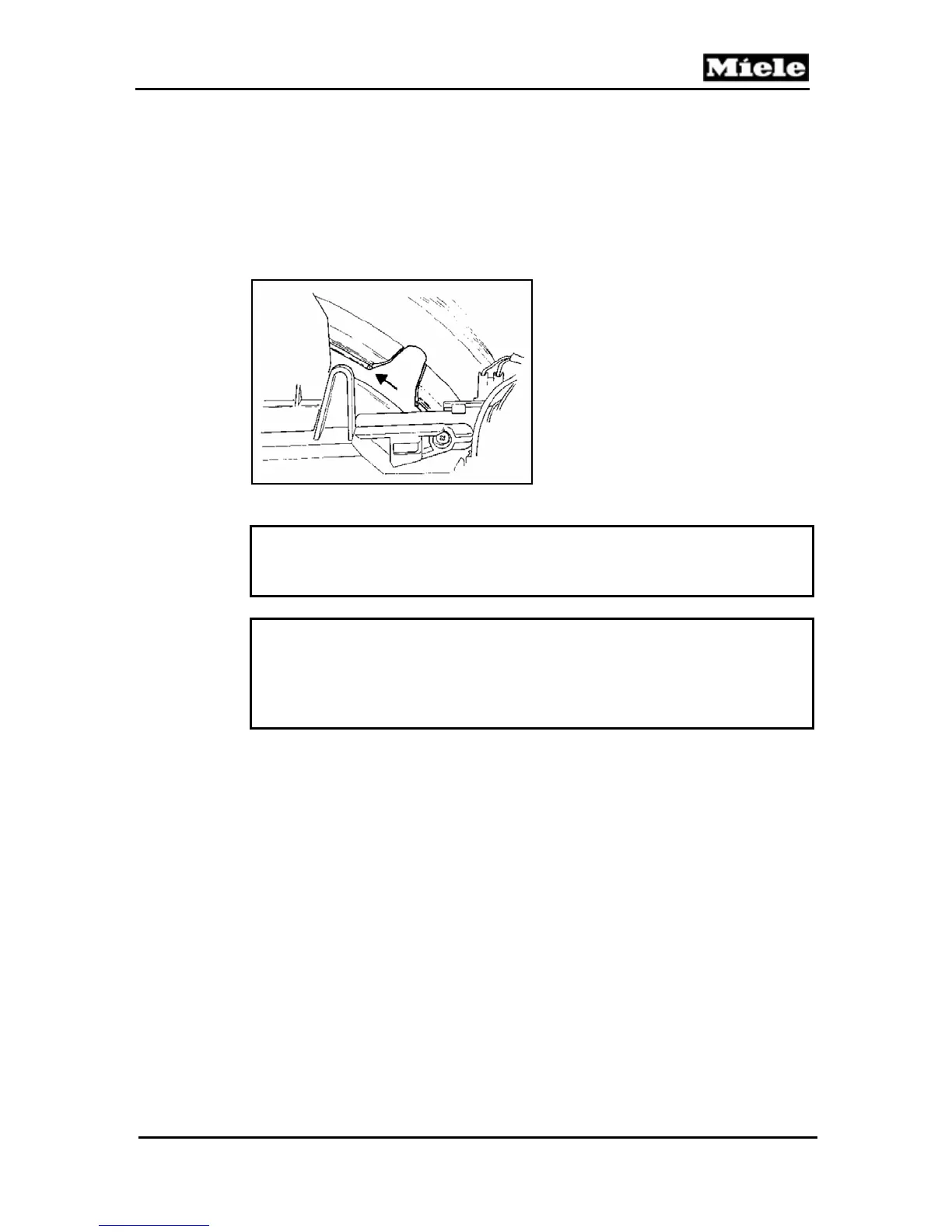

5. If the drum type is as shown in Figure 5-26 – Rolled Drum Edge (see
arrow), do not loosen the bearing.
6. Unscrew the bearing ring (refer to Figure 5-22 – Drum Drive Belt
Replacement 2, Items 1 and 2) and remove it.
7. Unscrew the two central bearing screws (refer to Figure 5-6 – Heater
Bank Removal 1, Item 2) and remove the drum.
Figure 5-26: Rolled Drum Edge
Note:
When re-assembling the drum, read the first paragraph of Section 5.4.1 –
Heater Bank Removal (Machine Nos. without a Prefix).
Note:
Adjust the support rollers (refer to Figure 5-23 – Drum Drive Belt
Replacement 3, Items 3 and 4) in such a way as to ensure that the gap
between the neck of the drum and the bearing is uniform all the way
around.
