Miele T300 - Electrical Components; T 368 C, T 369 C

Technical Information
T300 Series Clothes Dryer (Condenser)
5.3 Electrical Components
5.3.1 T 368 C, T 369 C
b1 On/Off Switch k2 Capacitor for m3
b2 Level Switch k3 Suppressor
b3 Temp. Selector Switch m1 Timer Motor
b4 Temp. Regulator m2 Drum Drive Motor
b5 Temperature Limiter m3 Fan Motor
b6 Temperature Limiter m4 Condensate Pump
h0 Indicator Lamp P Timer
h1 Buzzer r1 Heater Bank
h2 Level Indicator Lamp u1 Electronic Unit
k1 Capacitor for m2 u2 Residual Moisture Sensor

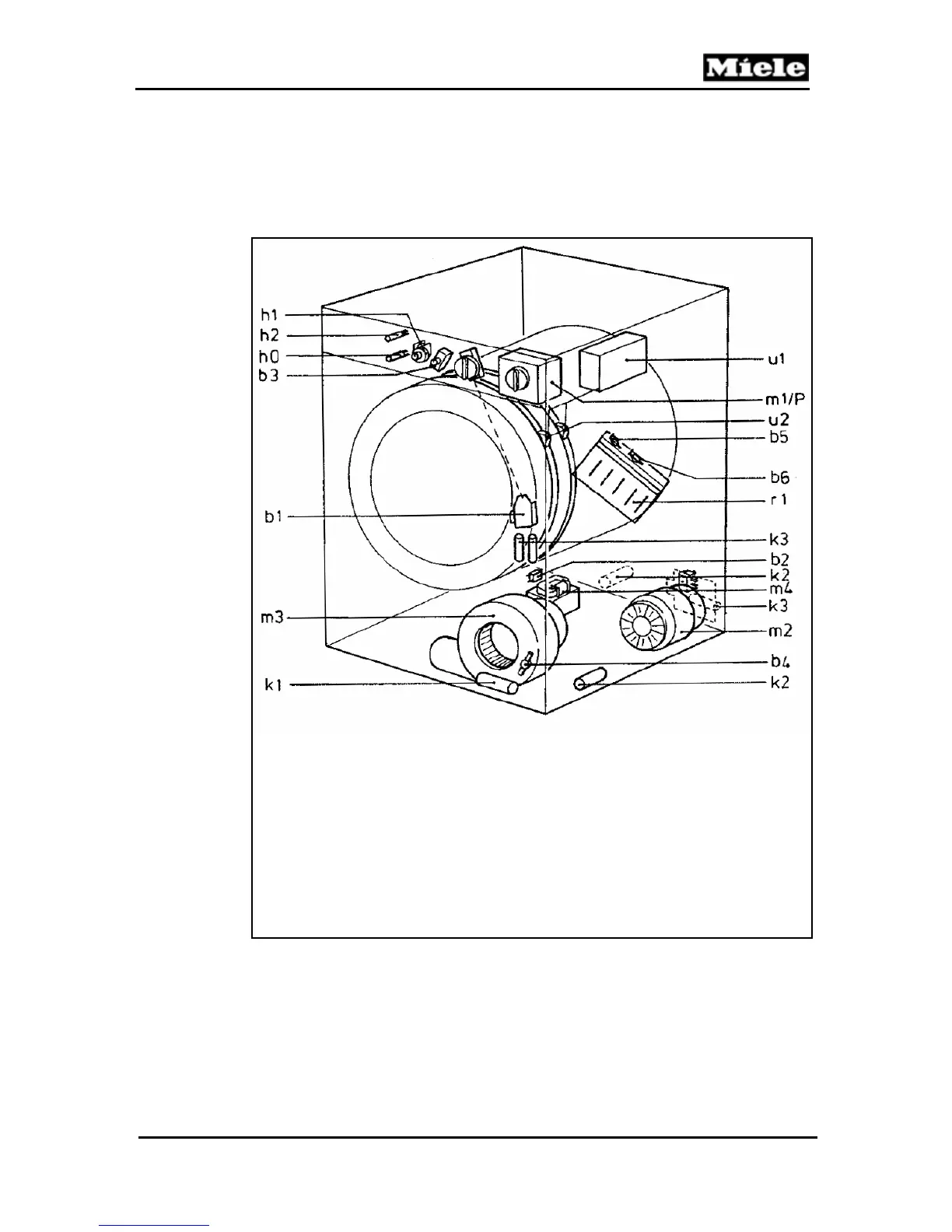

Figure 5-2: Electrical Components (T 368 C, T 369 C)
23
