Technical Information
T300 Series Clothes Dryer (Condenser)
5.6.2 Fan Unit with Drum Drive Motor – Removal
(Machine Nos. with Prefix 10/… or 11/…)
From Machine no: 11/8285912 T 368 C
10/8273006 T 369 C-2
10/8341291 T 377 C
10/8341312 T 378 C

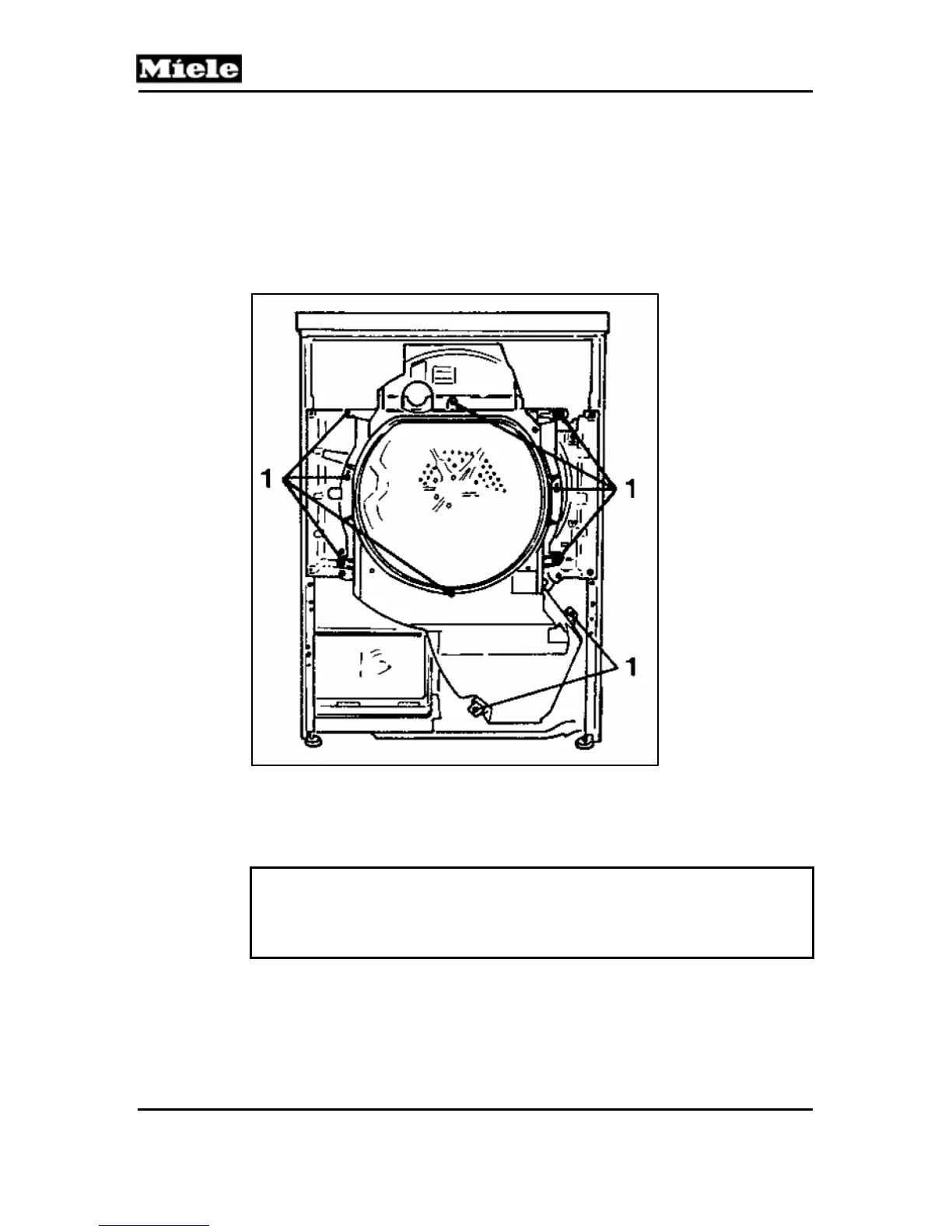

Figure 5-11: Fan Unit with Drum Drive Motor Removal
1. Open the front panel.
2. Remove the Plastic Plate (refer to Figure 5-9 – Fan Unit Removal 1).
Note:
If the vent duct is mounted separately from the fill ring, proceed as in
Section 5.6.1 – Fan Unit Removal (Machine nos. without Prefix), Steps 3-
5
3. Unscrew the fill ring and exhaust duct cover; refer to Figure 5-11 –
Fan Unit with Drum Drive Motor Removal, Item 1, and remove them.
32
